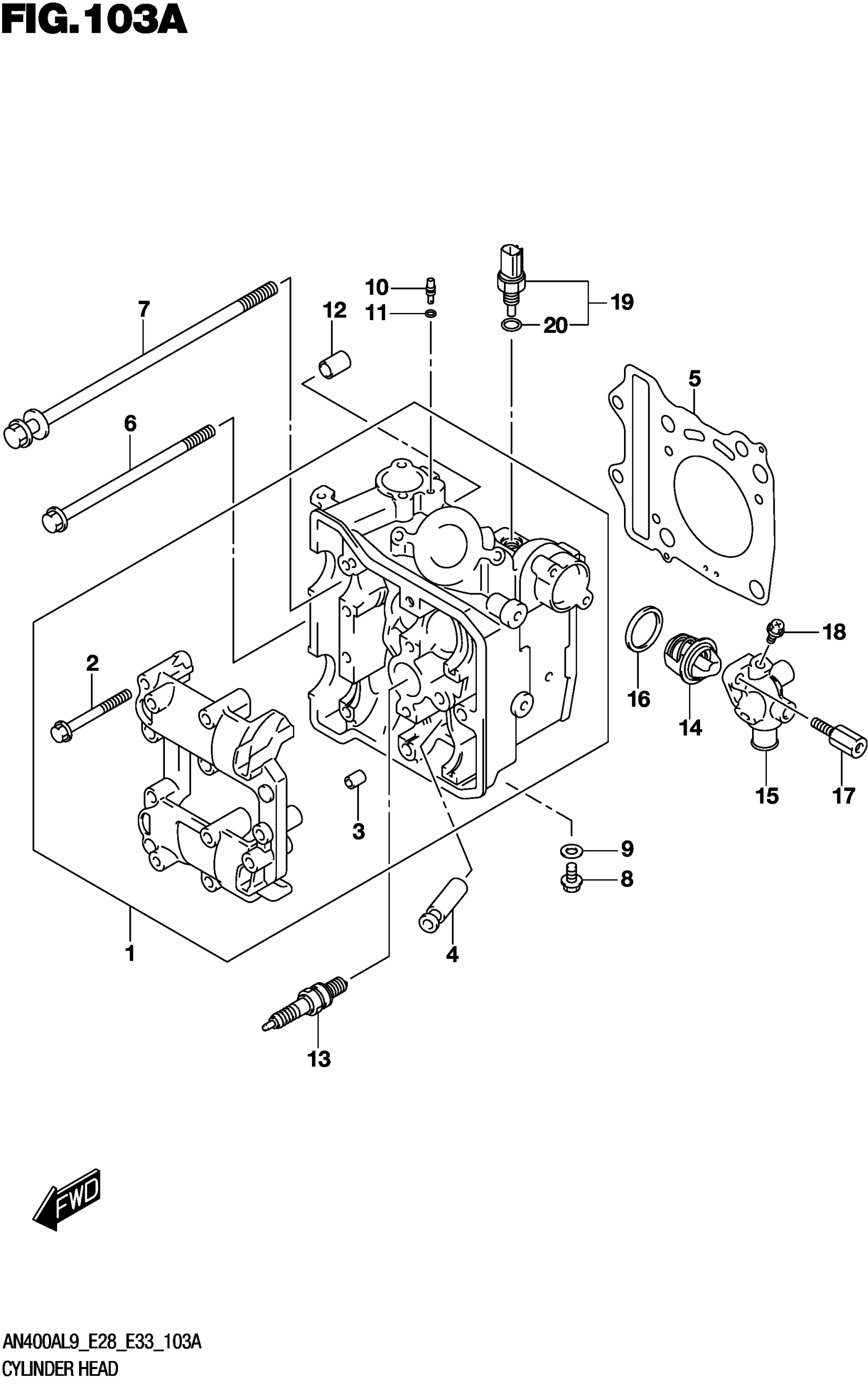

Suzuki AN400AL9 (2019) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-19K01

$740.83

2

.BOLT (6X45)

09103-06165

$3.30

3

.PIN (8X11)

09206-08001

$1.77

4

GUIDE,VALVE (OS:0.3) | OPT

11115-32C71

Unavailable

5

.GASKET,CYLINDER HEAD This part replaces 11141-05H00.

11141-19K00

$39.92

6

BOLT (8X130)

09103-08086

Unavailable

7

BOLT,CYLINDER HEAD (10X190)

11117-05H00

$17.18

8

BOLT

01550-0612A

$1.97

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

JET (#8)

09493-80005

$17.57

11

O-RING (D:1.2,ID:4)

09280-04004

$1.76

12

PIN (10.4X13X18)

04211-13189

$2.19

13-1

PLUG,SPARK (CR7EIA-9) | NGK

09482-00554

$10.64

13-2

PLUG,SPARK (IU22D) | DENSO

09482-00553

$19.08

13-3

PLUG,SPARK (CR8EIA-9) | OPT

09482-00556

$9.65

13-3

PLUG,SPARK (CR8EIA-9) | NGK

09482-00556

$9.65

13-4

PLUG,SPARK (IU24D) | OPT

09482-00555

$16.44

13-4

PLUG,SPARK (IU24D) | DENSO

09482-00555

$16.44

13-5

PLUG,SPARK (CR9EIA-9) | OPT

09482-00558

$10.79

13-5

PLUG,SPARK (CR9EIA-9) | NGK

09482-00558

$10.79

13-6

PLUG,SPARK (IU27D) | OPT

09482-00557

$15.20

13-6

PLUG,SPARK (IU27D) | DENSO

09482-00557

$15.20

14

THERMOSTAT,WATER This part replaces 17670-19K00.

17670-19K01

$42.45

15

COVER, THERMOSTAT

17661-05H01

$37.08

16

GASKET (6.4X11.5X0.84)

09168-06026

$2.80

17

BOLT

17667-21F00

Unavailable

18

UNION BOLT,AIR VENT

17568-50F00

$6.32

19

SENSOR,WATER TEMP

13650-14G00

$48.98

20

.O RING

13655-14G00

$10.48
