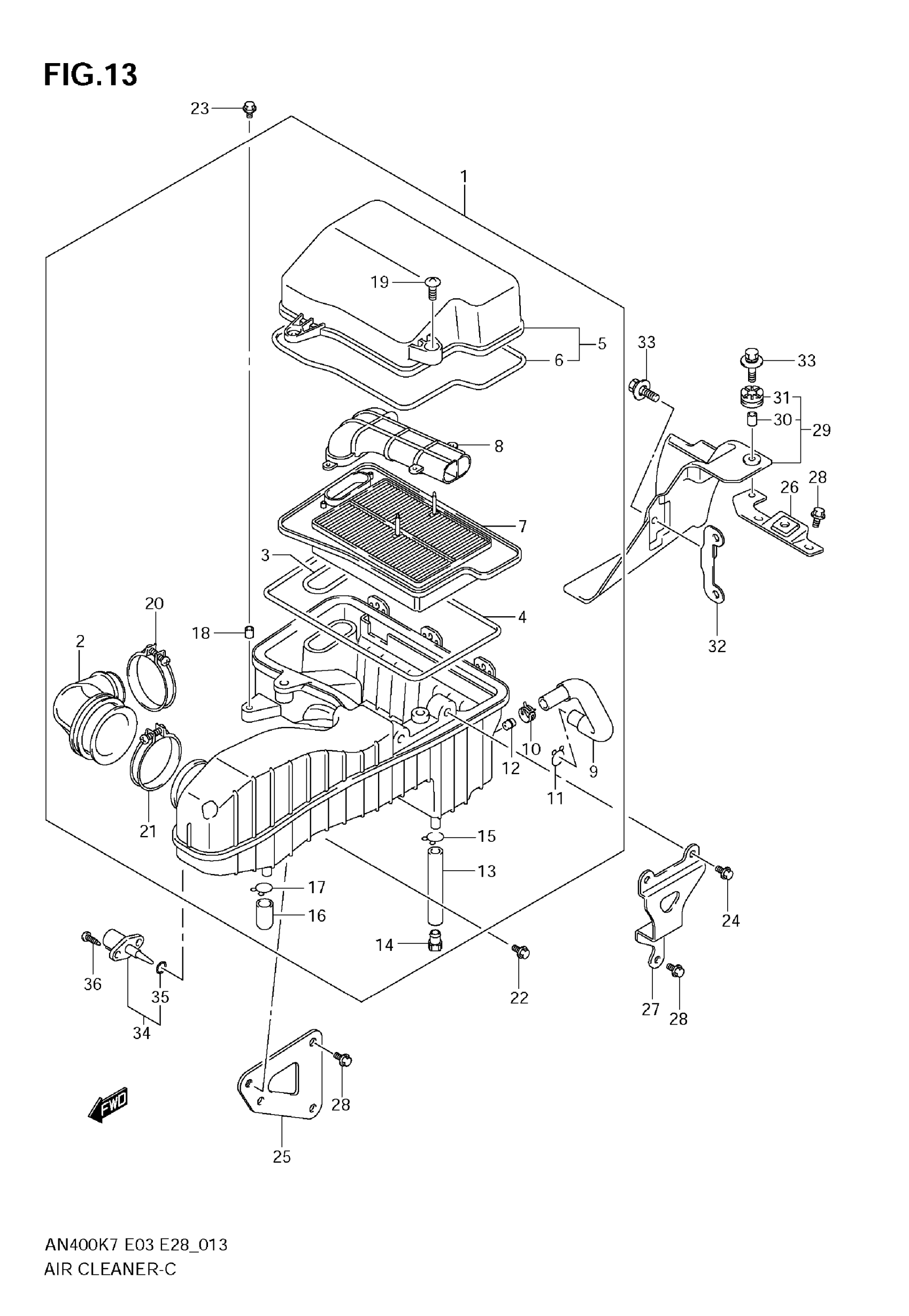

Find the part on the Air Cleaner diagram for your 2009 Suzuki AN400AK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN400AK9 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-05H00

1
Out of stock

2

1

$32.48

In stock

3

GASKET, FILTER

13747-05H00

—
Out of stock

4

GASKET, CASE

13748-05H00

1

$6.83

In stock

5

1

$53.92

In stock

6

GASKET, CAP

13746-05H00

—
Out of stock

7

FILTER

13781-05H00

1

$69.53

In stock

8

TUBE, INLET

13891-05H00

1

$36.30

In stock

9

1

$33.53

In stock

10

CLIP

09401-15404

1

$2.42

In stock

11

CLIP

09401-15101

1
Out of stock

12

1

$4.97

In stock

13

TUBE, DRAIN

13871-05H00

—
Out of stock

14

STOPPER

13877-00190

1

$6.00

In stock

15

CLIP

09401-14301

2

$2.50

In stock

16

1

$6.53

In stock

17

CLIP

09401-14301

1

$2.50

In stock

18

COLLAR

13912-43E60

—
Out of stock

19

SCREW

02142-0616A

2
Out of stock

20

1

$5.20

In stock

21

CLAMP

09402-62208

1

$6.47

In stock

22

BOLT

09116-06093

1
Out of stock

23

BOLT

09116-06103

1

$3.42

In stock

24

BOLT

01550-0612A

2
Out of stock

25

BRACKET, FRONT

13760-05H00

1
Out of stock

26

BRACKET, REAR

13760-05H20

1
Out of stock

27

BRACKET, LH

13760-05H10

1
Out of stock

28

BOLT

01547-0612A

6
Out of stock

29

COWLING, CYLINDER

17120-05H00

1
Out of stock

30

CUSHION

09320-10051

2

$3.03

In stock

31

SPACER

09180-06290

2
Out of stock

32

BRACKET

17122-05H00

1
Out of stock

33

BOLT

09118-06097

2
Out of stock

34

1

$51.91

In stock

35

O RING

13655-14G10

1

$11.18

In stock

36

SCREW

03511-0516A

2

$2.03

In stock
