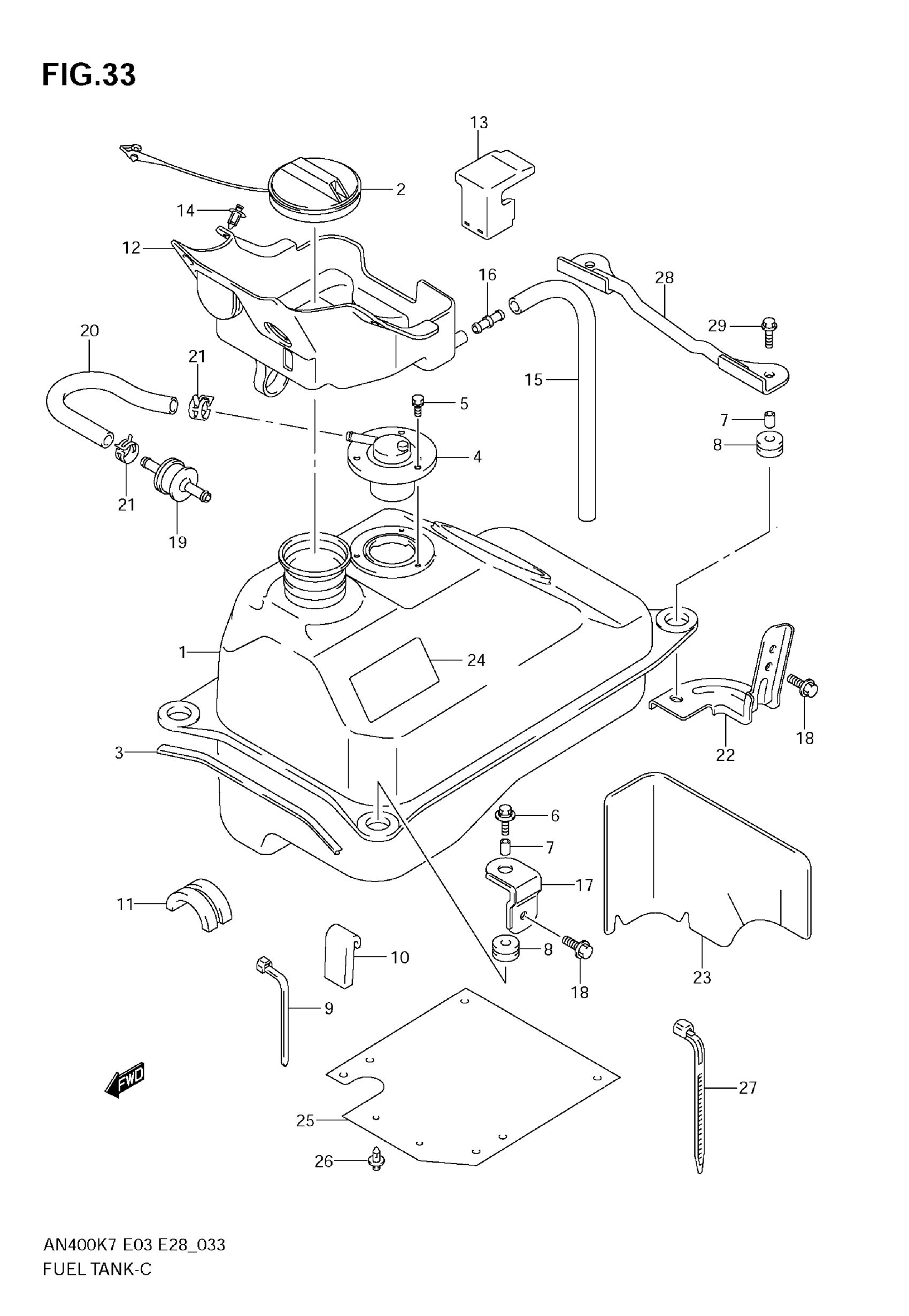

Suzuki AN400AK9 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-05H00.

44110-05H31

$580.12

2

CAP SET,FUEL TANK

44200-14840

$196.77

3

MOLDING

68241-04X50-300

$6.89

4

VALVE, FUEL CUT | MODEL K7

89485-65D00

$101.35

4

VALVE,FUEL CUT | MODEL K8/K9

89480-52DA0

$71.77

5

BOLT This part replaces 09117-05003.

01570-0510B

$2.55

6

BOLT

09116-06147

$2.93

7

SPACER

09180-06267

$4.45

8

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.44

9

CLAMP

09407-25402

$4.19

10

CUSHION, TANK LOWER RH

44541-14F00

Unavailable

11

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

12

TRAY, TANK INLET

44260-05H00

Unavailable

13

CUSHION

44262-05H00

$18.02

14

CLIP, TRAY

09409-07333

$2.29

15

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.07

16

JOINT

09367-08001

$4.53

17

BRACKET,FUEL TANK FRONT

44531-05H00

Unavailable

18

BOLT

01550-0612A

$1.97

19

VALVE,2 WAY CHECK

85451-75100

$44.04

20

HOSE, CHECK VALVE | MODEL K7

44434-05H00

Unavailable

20

HOSE, CHECK VALVE | MODEL K8/K9

44434-05H10

$43.30

21

CLIP (ID:10.5,H:8)

09401-10409

$2.28

22

BRACKET, REAR LH | MODEL K7/K8

44560-05H00

Unavailable

22

BRACKET,FUEL TANK REAR LH | MODEL K9

44560-05H10

$26.65

23

SHIELD,FUEL TANK HEAT

44191-05H00

Unavailable

24

TAPE,FUEL TANK SIDE

44192-05H00

$30.60

25

SHEET, FUEL TRAY

44193-05H01

Unavailable

26

CLIP (BLACK)

09409-06314-5PK

$2.80

27

CLAMP

09407-18402

$2.21

28

BRACKET, FUEL TANK REAR

44500-05H00

Unavailable

29

BOLT

01550-0625A

$1.97
