1969 Suzuki A100 Speedometer-Head Lamp-High Beam Indicator Diagram

← All diagrams

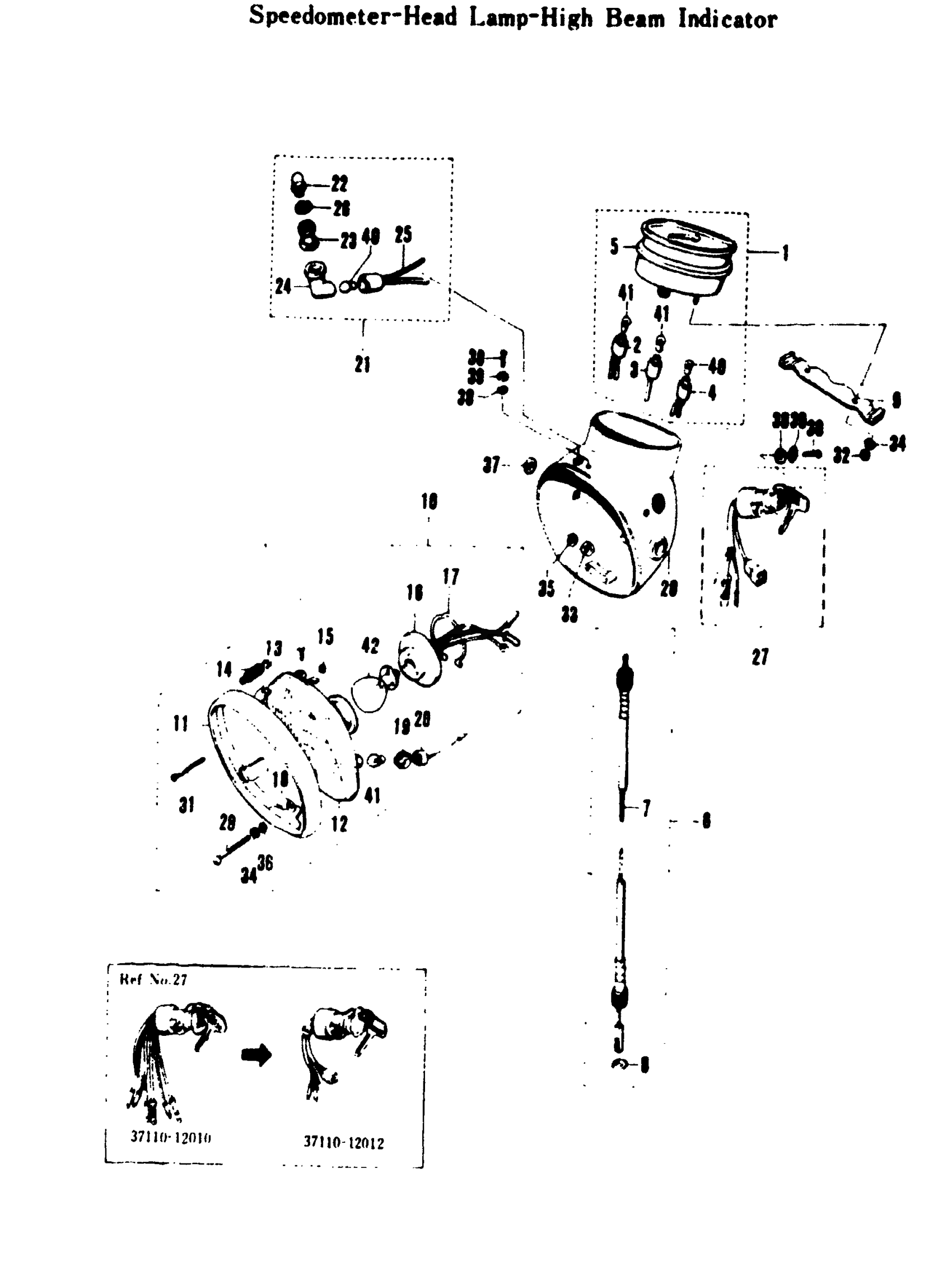

Find the part on the Speedometer-Head Lamp-High Beam Indicator diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki A100 Speedometer-Head Lamp-High Beam Indicator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASS'Y

34100-12601

—
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 34173-07020.

34173-08420

1
Out of stock

3

NEUTRAL LAMP BULB SOCKET

34174-11020

—
Out of stock

4

TURN SIGNAL LAMP BULB SOCKET

34175-12020

—
Out of stock

5

SPEEDOMETER GASKET

34181-07010

—
Out of stock

6

SPEEDOMETER CABLE ASS'Y

34910-05030

—
Out of stock

7

SPEEDOMETER INNER CABLE

34911-03032

—
Out of stock

8

SPEEDOMETER CABLE OIL SEAL | 00

34928-01030

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 34951-07000.

34951-07001

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 35100-07691.

35100-07611

—
Out of stock

11

HEAD LAMP RIM

35111-07691

—
Out of stock

12

HEAD LAMP UNIT

35121-07690

—
Out of stock

13

SCREW, UNIT HOLDER | O This part replaces 35136-07691.

35136-19610

2
Out of stock

13

HEAD LAMP UNIT SCREW

35136-07690

—
Out of stock

14

HEAD LAMP SPRING

35137-07690

—
Out of stock

15

HEAD LAMP ADJUSTER NUT | O

35155-07691

2
Out of stock

15

HEAD LAMP ADJUSTER NUT

35155-07690

—
Out of stock

16

HEAD LAMP SOCKET

35171-07690

—
Out of stock

17

HEAD LAMP SOCKET SPRING CLAMP

35172-10620

—
Out of stock

18

HEAD LAMP SPACER

35189-01320

—
Out of stock

19

PACKING LAMP SOCKET

36118-01681

—
Out of stock

20

PACKING LAMP SOCKET BOOT

36119-07690

—
Out of stock

21

HIGH BEAM INDICATOR ASS'Y

36330-02610

—
Out of stock

22

HIGH BEAM INDICATOR LAMP LENS

36331-01610

—
Out of stock

23

HIGH BEAM INDICATOR LAMP LENS

36332-01610

—
Out of stock

24

HIGH BEAM INDICATOR LAMP HOLD

36334-01610

1
Out of stock

25

HIGH BEAM INDICATOR LAMP SOCK

36335-01611

—
Out of stock

26

HIGH BEAM INDICATOR LAMP LEAS

36337-01610

—
Out of stock

27

IGNITION SWITCH ASS'Y

37110-12012

1
Out of stock

27

IGNITION SWITCH ASS'Y | TO E.NO A100-10353

37110-12010

—
Out of stock

28

HEAD LAMP HOUSING | LOR BLACK

51810-12691

—
Out of stock

28

HEAD LAMP HOUSING | LOR PERMANENT RED

51810-12693

—
Out of stock

28

HEAD LAMP HOUSING | LOR LIGHT PERMANENT BLUE

51810-12695

—
Out of stock

29

SCREW This part replaces 02111-05357.

02112-05357

1
Out of stock

29

CROSS HEAD SCREW

02111-05352

—
Out of stock

30

3

$2.10

In stock

30

CROSS HEAD SCREW

02131-04122

3
Out of stock

31

CROSS HEAD SCREW

02131-04408

1
Out of stock

31

CROSS HEAD SCREW

02131-04401

1
Out of stock

32

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

32

HEXAGON NUT

08311-11051

2
Out of stock

33

2

$1.93

In stock

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

35

2

$2.28

In stock

36

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

37

FLAT WASHER

08322-21087

—
Out of stock

38

HEAD LAMP RIM SCREW GASKET | 00; ID=4.2(0.17) OD=12.5(03(0.01)

09161-04005

3
Out of stock

39

IGNITION SWITCH HEAD LAMP WAS | 00

09165-04004

3
Out of stock

40

TURN SIGNAL INDICATOR LAMP BU | 00; 6V,1.5W

09471-06001

2
Out of stock

41

SPEEDOMETER LAMP BULB | 00; 6V,3W

09471-06002

3
Out of stock
