1969 Suzuki A100 Gear Shifting-Neutral Indicator Switch Diagram

← All diagrams

Find the part on the Gear Shifting-Neutral Indicator Switch diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

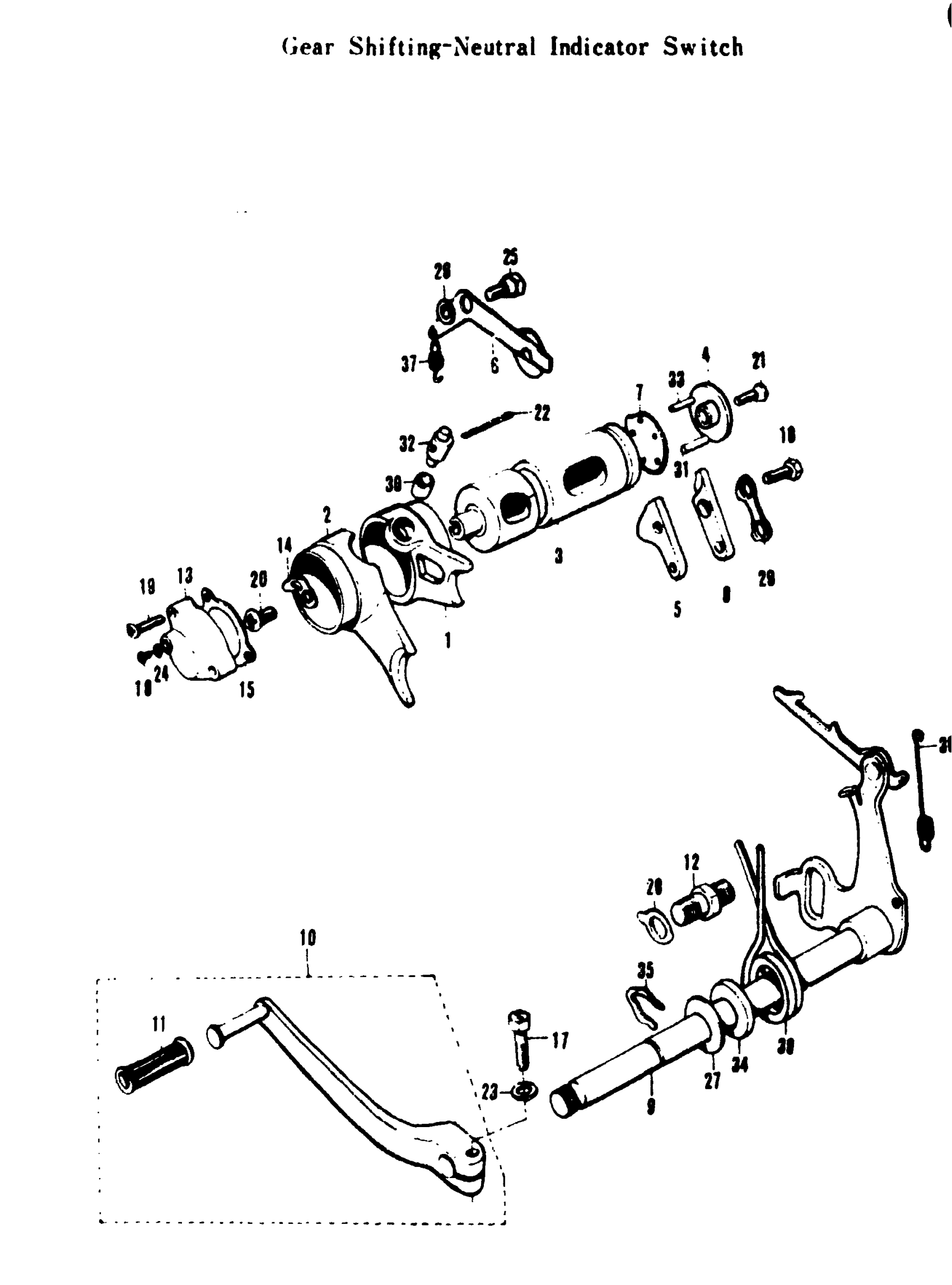

1969 Suzuki A100 Gear Shifting-Neutral Indicator Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOW SPEED GEAR SHIFTING FORK

25211-07000

—
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 25221-03600.

25221-03601

1
Out of stock

3

GEAR SHIFTING CAM

25311-07600

—
Out of stock

4

RETAINER, DRIVE PIN This part replaces 25322-03000.

25322-46000

1
Out of stock

5

SHIFTING CAM GUIDE

25341-03000

1
Out of stock

6

SHIFTING CAM STOPPER

25350-12000

—
Out of stock

7

SHIFTING CAM SIDE PLATE

25361-07600

1
Out of stock

8

SHIFTING CAM STOPPER PLATE

25362-07600

1
Out of stock

9

SHIFTING SHAFT COMP.

25510-12001

1
Out of stock

10

SHIFTING LEVER ASS'Y

25600-01602

—
Out of stock

11

.RUBBER,GEAR SHIFT PEDAL | 00 This part replaces 25652-03201.

25652-16510

1
Out of stock

12

SHIFTING ARM STOPPER | 00

25671-19000

1
Out of stock

13

BODY,CHANGE SWI | 00 This part replaces 37721-05100.

37721-05101

1
Out of stock

14

CONTACT, SWITCH | 0000 This part replaces 37711-05100.

37711-05101

1
Out of stock

15

NEUTRAL SWITCH GASKET | 00

37712-01000

1
Out of stock

16

BOLT This part replaces 01111-06208.

01500-06207

2
Out of stock

17

BOLT This part replaces 01111-06208.

01500-06207

1
Out of stock

17

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

18

CROSS HEAD SCREW

02111-03068

—
Out of stock

18

CROSS HEAD SCREW

02111-03061

1
Out of stock

19

3

$1.34

In stock

19

CROSS HEAD SCREW

02111-04161

—
Out of stock

20

CROSS HEAD SCREW

02121-06128

—
Out of stock

21

CROSS HEAD SCREW

02121-06208

—
Out of stock

22

1

$1.31

In stock

23

1

$2.28

In stock

24

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

25

SHIFTING CAM STOPPER HOLT | 00

09111-06003

1
Out of stock

26

SHIFTING CAM STOPPER WASHER | 6.5(0.26) OD=13(0.51) T

09160-06008

1
Out of stock

27

WASHER (12.5X26X1.6) | 00; ID=12.5(0.50) OD=251.5(0.06) This part replaces 09160-12020.

09160-12089

1
Out of stock

28

SHIFTING ARM STOPPER WASHER | 00; ID=10(0.39) OD=14(0.(0.05)

09167-10001

1
Out of stock

29

SHIFTING CAM GUIDE WASHER

09169-06003

1
Out of stock

30

ROLLER | 00; ID=5(0.20) OD=9.8(0..24) This part replaces 09180-06004.

09180-06086

2
Out of stock

31

SHIFTING CAM PIN

09201-04002

1
Out of stock

32

SHIFTING FORK GUIDE | 00

09209-10003

—
Out of stock

33

SHIFTING CAM PIN | 00; OD=4(0.15) L=20(0.78)

09261-04003

4
Out of stock

34

OIL SEAL (12X22X9) | 00; ID =12(0.47) OD=22(0827) This part replaces 09285-12001.

09285-12006

1
Out of stock

35

CIRCLIP | 00 This part replaces 09384-12001.

08331-3112A

1
Out of stock

36

SHIFTING PAWL RETURN SPRING | 00

09443-06008

1
Out of stock

37

SHIFTING CAM STOPPER SPRING | 00

09443-07003

1
Out of stock
