1969 Suzuki A100 Selenium Rectifier-Battery-Main Wiring Harness Diagram

← All diagrams

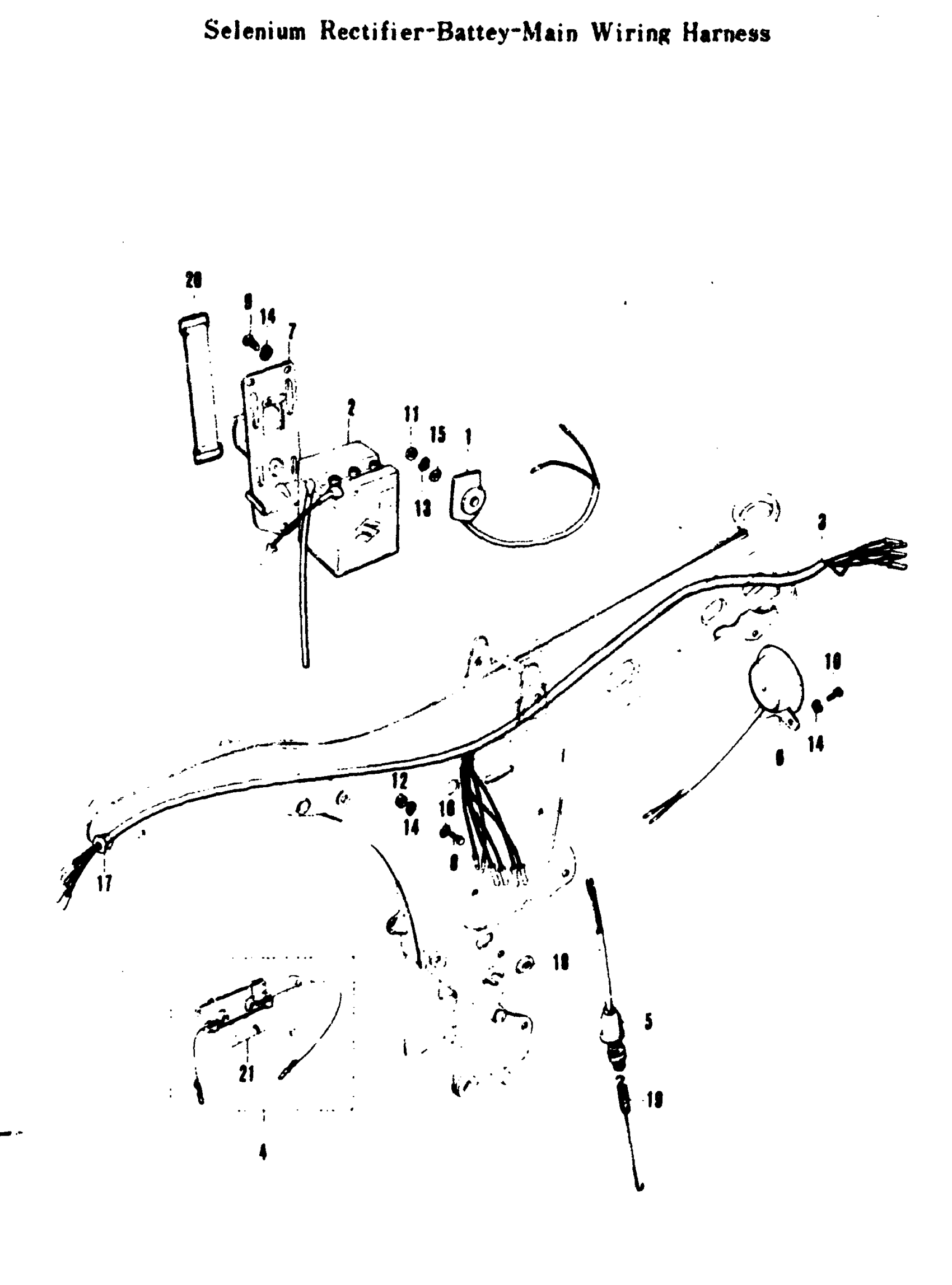

Find the part on the Selenium Rectifier-Battery-Main Wiring Harness diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki A100 Selenium Rectifier-Battery-Main Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DIODE | 00 This part replaces 32800-01020.

32800-16A00

1
Out of stock

2

BATTERY ASS'Y | 00; 6V,4AH

33610-03010

1
Out of stock

3

MAIN WIRING HARNESS

36610-12100

—
Out of stock

4

FUSE CASE ASSY | 00 This part replaces 36740-15010.

36740-15011

1
Out of stock

5

BRAKE LAMP SWITCH ASS'Y | 00

37740-11010

—
Out of stock

6

HORN | 00

38500-01030

—
Out of stock

7

BATTERY HOLDER

41540-03000

1
Out of stock

8

HEXAGON BOLT

01111-06128

—
Out of stock

9

CROSS HEAD SCREW

02111-06108

—
Out of stock

10

SCREW This part replaces 02111-06128.

02112-06127

2
Out of stock

11

NUT This part replaces 08311-11058.

08310-00057

1
Out of stock

11

HEXAGON NUT

08311-11051

1
Out of stock

12

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

14

3

$2.28

In stock

15

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

16

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

17

MAIN WIRING HARNESS GROMMET | 00

09308-10001

1
Out of stock

18

BRAKE LAMP SWITCH CORD GROMME | 00

09308-12003

—
Out of stock

19

BRAKE LAMP SWITCH SPRING | 00

09443-06006

—
Out of stock

20

BAND, TOOL | 00 This part replaces 09462-00002.

09462-00067

1
Out of stock
