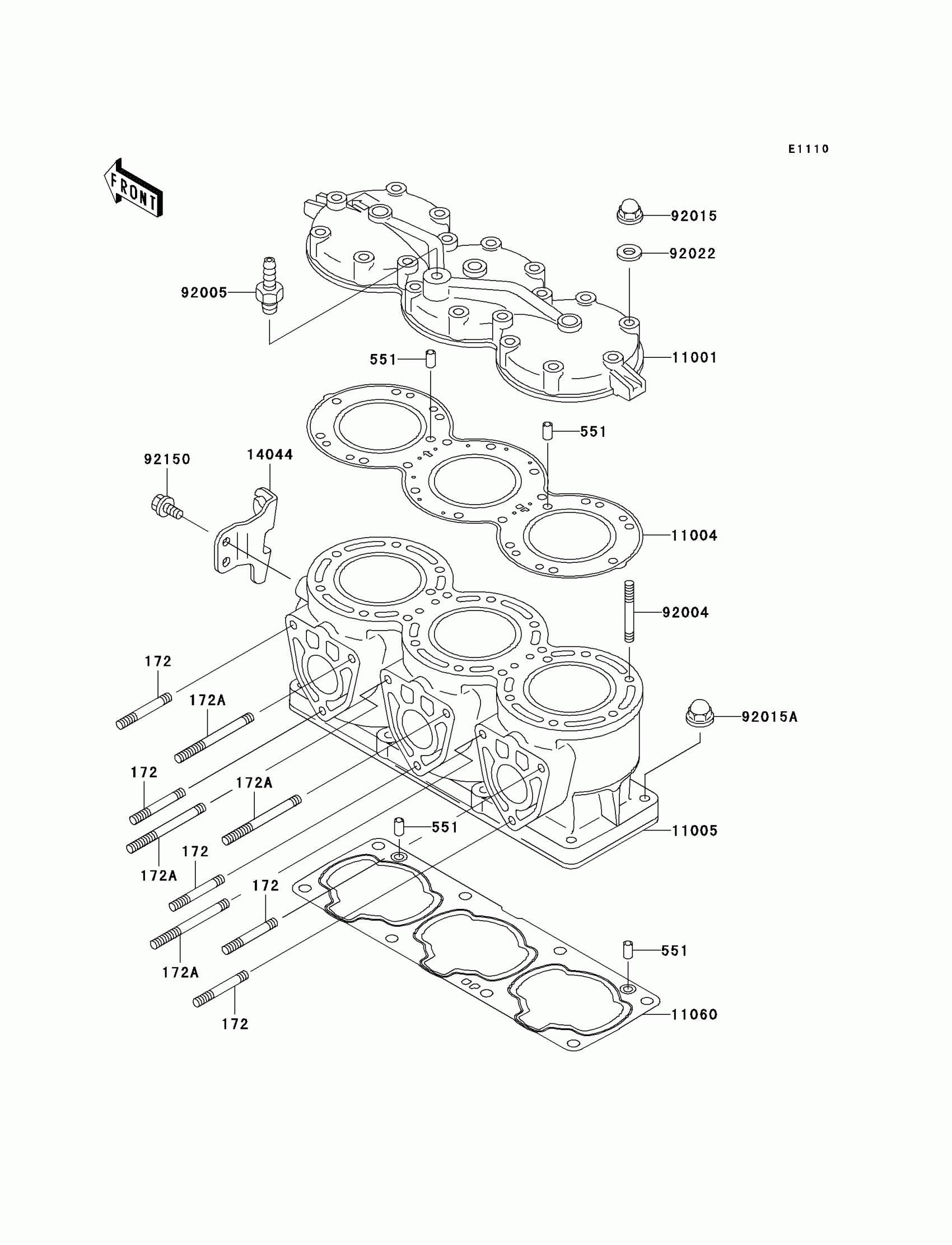

Kawasaki 900 STS Cylinder Head/Cylinder Diagram

Description

Price

172

BOLT-STUD,8X30

172R0830

$6.73

172A

BOLT-STUD,8X75

172R0875

$15.78

551

PIN-DOWEL

551R0812

$6.04

11001

HEAD-CYLINDER

11001-3737

$617.51

11004

GASKET-HEAD

11004-3713

$86.67

11005

CYLINDER-ENGINE

11005-3750

$1,433.78

11060

GASKET,CYLINDER BASE

11060-3752

$60.30

14044

HOLDER-CABLE

14044-3729

$37.15

92004

STUD,8X43

92004-3715

$8.31

92005

FITTING

92005-3714

$14.12

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,10MM

92015-1649

$3.79

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92150

BOLT,8X16

92150-3722

$7.49
