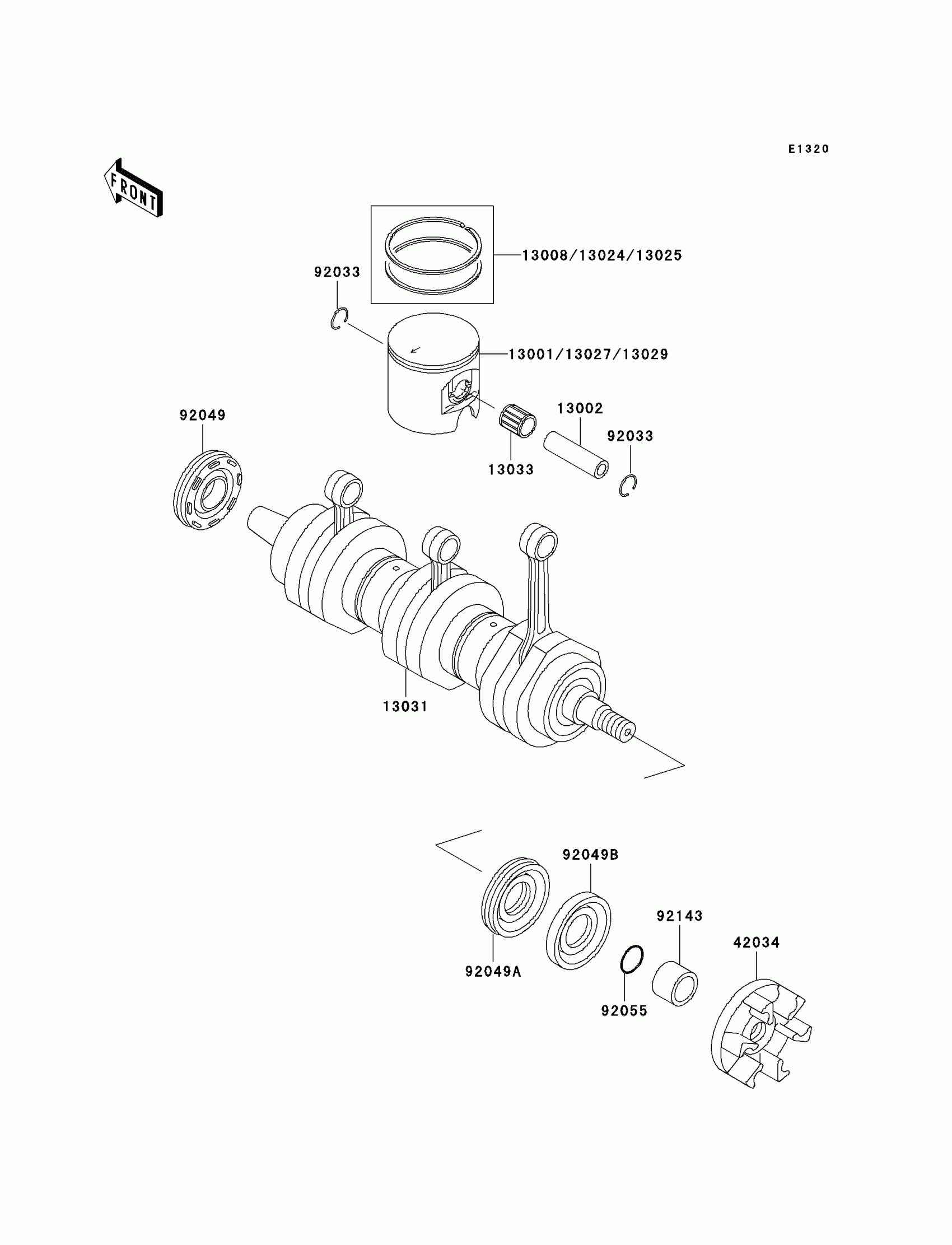

Kawasaki 900 STS Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3720

$125.46

13002

PIN-PISTON

13002-3705

$24.32

13008

RING-SET-PISTON,STD

13008-3709

$63.34

13024

RING-SET-PISTON LL,O/S,1.00

13024-3707

Unavailable

13025

RING-SET-PISTON L,O/S,0.50

13025-3707

Unavailable

13027

PISTON-ENGINE LL,O/S,1.00

13027-3712

Unavailable

13029

PISTON-ENGINE L,O/S,0.50

13029-3712

Unavailable

13031

CRANKSHAFT-COMP

13031-3732

$1,528.64

13033

BEARING-SMALL END

13033-3702

$30.80

42034

COUPLING

42034-3709

$57.45

92033

RING-SNAP

92033-1207

$1.65

92049

SEAL-OIL,FWJ7307210ZS

92049-3713

$31.68

92049A

SEAL-OIL

92049-3715

Unavailable

92049B

SEAL-OIL

92049-3716

Unavailable

92055

RING-O,20.8X2.4

92055-3740

Unavailable

92143

COLLAR

92143-3745

$37.15
