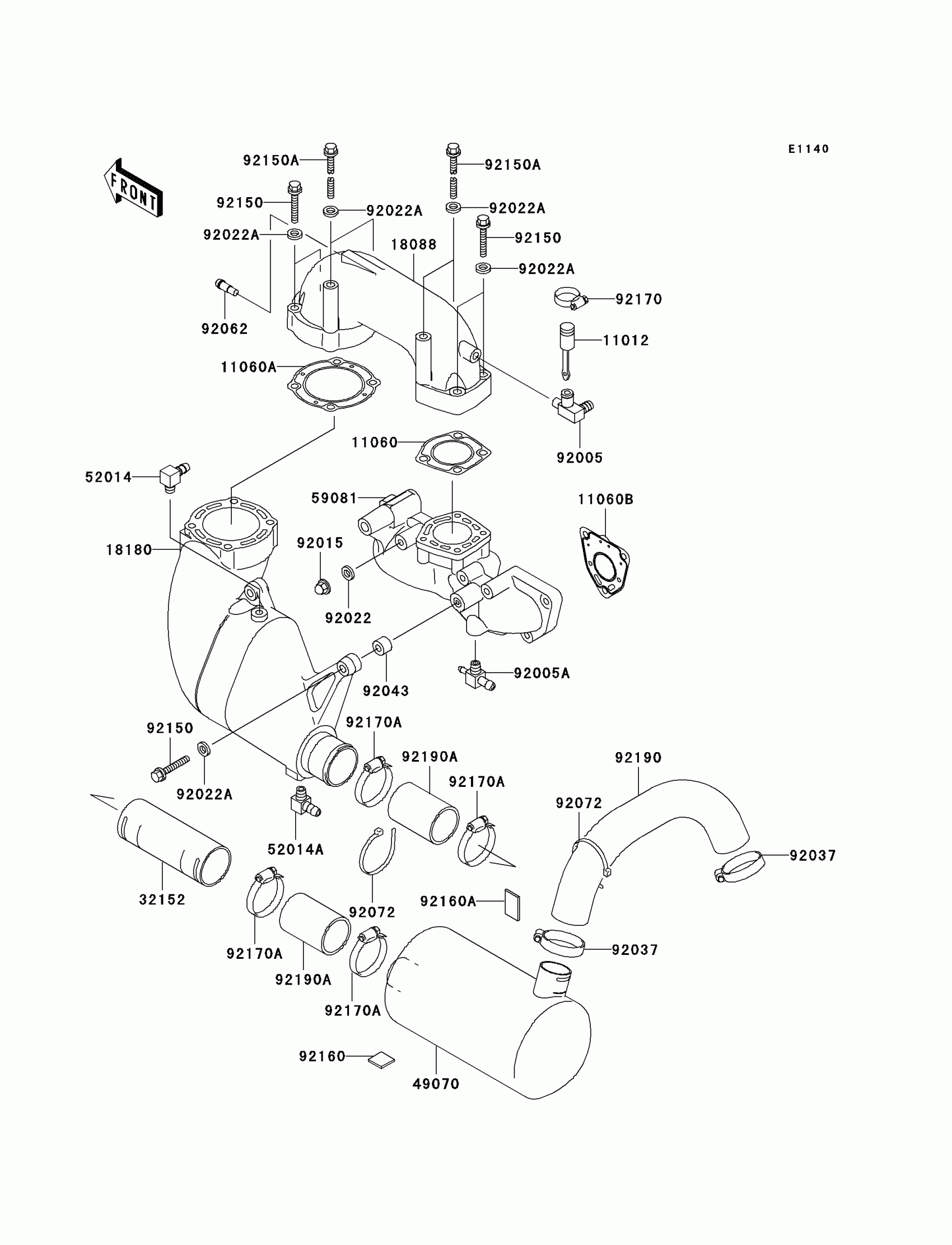

Kawasaki 900 STS Muffler(s) Diagram

#

Description
Price

11012

CAP

11012-3757

Unavailable

11060

GASKET

11060-3754

$37.48

11060A

GASKET

11060-3755

$30.24

11060B

GASKET

11060-3756

$28.80

18088

PIPE-EXHAUST

18088-3706

$220.97

18180

BODY-MUFFLER

18180-3724

$524.28

32152

PIPE

32152-3758

$59.86

49070

MUFFLER-COMP

49070-3734

$370.34

52014

ELBOW

52014-3709

$25.19

52014A

ELBOW

52014-3711

$26.63

59081

MANIFOLD-EXHAUST

59081-3732

$633.88

92005

FITTING

92005-3715

$49.75

92005A

FITTING

92005-3720

$41.60

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92037

CLAMP

92037-3738

$5.47

92043

PIN,11X14X12.3

92043-1266

$0.86

92062

NOZZLE

92062-3705

$6.73

92072

BAND,L=368.3

92072-3808

$1.20

92150

BOLT,10X50

92150-3819

Unavailable

92150A

BOLT,10X125

92150-3825

$19.24

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER,40X25

92160-3865

$4.61

92170

CLAMP

92170-3729

Unavailable

92170A

CLAMP

92170-3754

$12.71

92190

TUBE,MUFFLER-TAILPIPE

92190-3938

Unavailable

92190A

TUBE,CHAMBER-MUFLLER

92190-3950

$27.39
