2005 Kawasaki 800 SX-R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

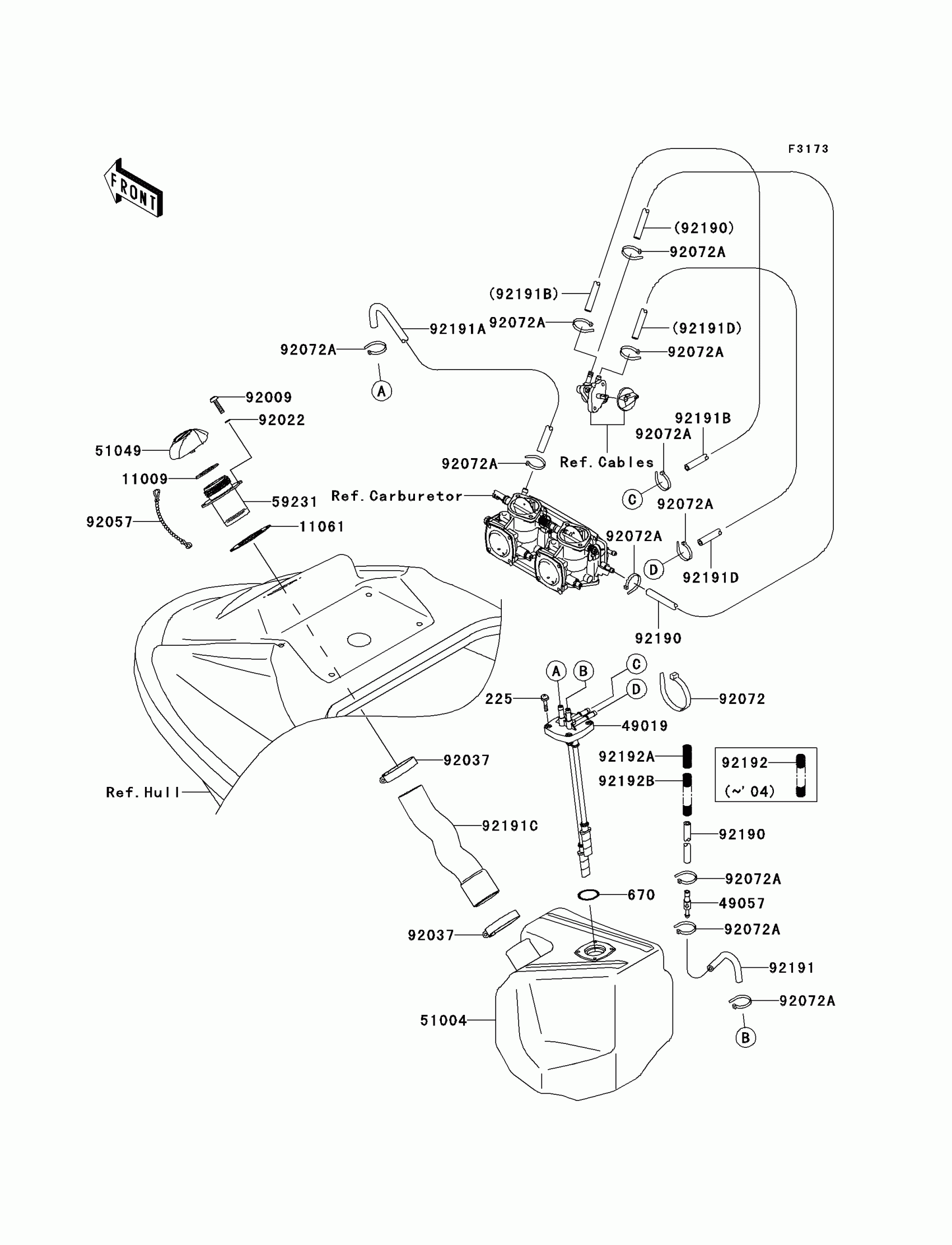

2005 Kawasaki 800 SX-R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

225

1

$4.14

In stock

670

"0" RING,36MM

670B3036

1

$0.97

In stock

11009

GASKET,TANK CAP

11009-3020

1

$10.69

In stock

11061

GASKET

11061-3701

1

$13.46

In stock

49019

FILTER-FUEL

49019-3718

1
Out of stock

49057

VALVE-RELIEF

49057-3707

1

$59.58

In stock

51004

TANK-FUEL

51004-3738

1
Out of stock

51049

CAP-TANK,FUEL

51049-3725

1
Out of stock

59231

FILLER,FUEL TANK

59231-3716

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92022

WASHER

92022-563

1
Out of stock

92037

CLAMP

92037-3009

1

$3.25

In stock

92057

CHAIN,COVER,L=100

92057-3704

1

$15.18

In stock

92072

BAND,L=188

92072-1239

1

$1.51

In stock

92072A

BAND,L=99

92072-3871

1
Out of stock

92190

TUBE,5.8X10.8X500

92190-3846

1

$20.95

In stock

92191

TUBE,AIR VENT

92191-3967

1
Out of stock

92191A

TUBE,"RETURN"

92191-3968

1
Out of stock

92191B

TUBE,"RES"

92191-3969

1
Out of stock

92191C

TUBE,TANK-FILLER

92191-3970

1
Out of stock

92191D

TUBE,"ON"

92191-3973

1
Out of stock

92192A

TUBE,CORRUGATED,L=40

92192-3733

1
Out of stock

92192B

TUBE,CORRUGATED,L=200

92192-3734

1
Out of stock
