2005 Kawasaki 800 SX-R Flame Arrester Diagram

← All diagrams

Find the part on the Flame Arrester diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

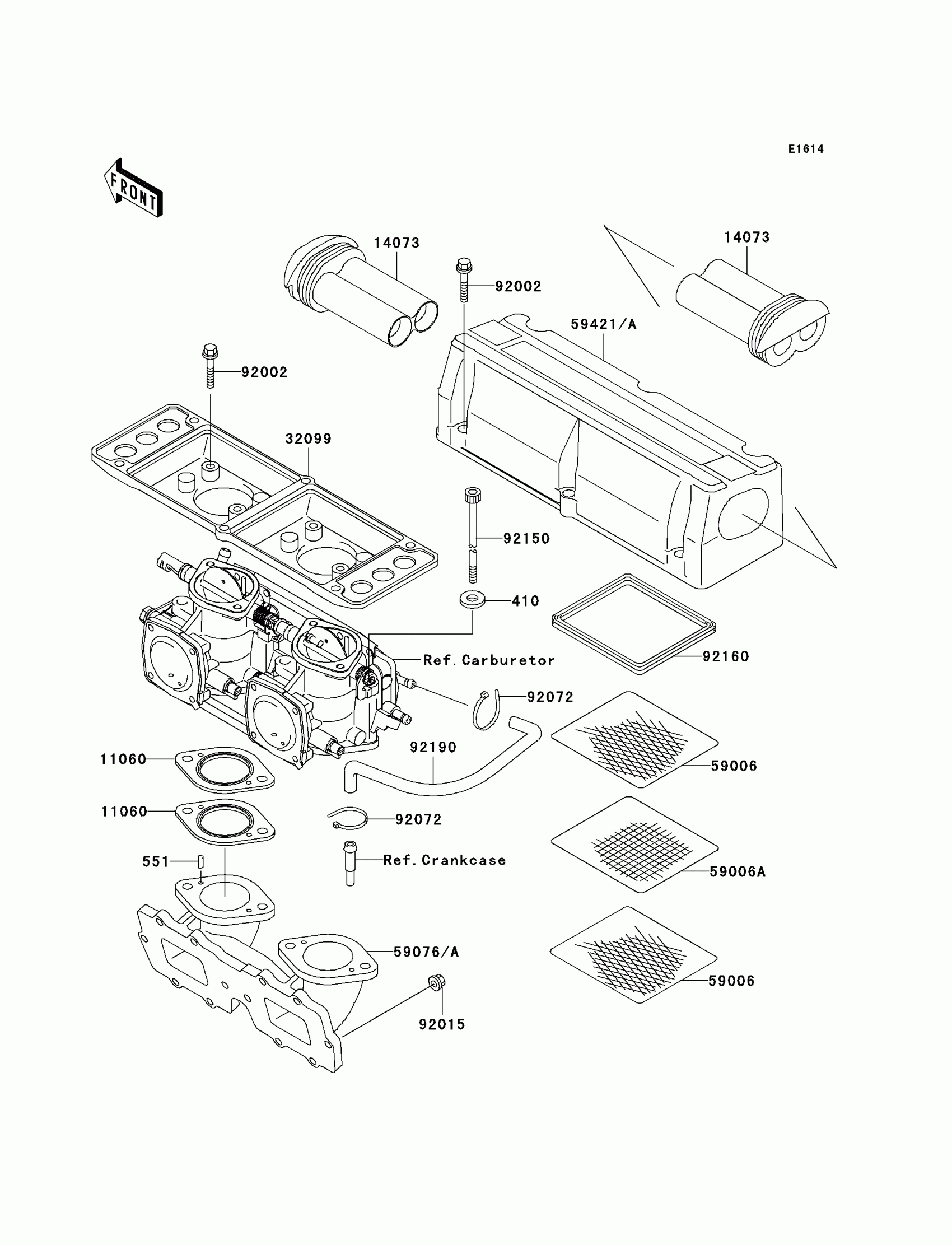

2005 Kawasaki 800 SX-R Flame Arrester Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

1

$1.68

In stock

551

PIN-DOWEL

551R0416

1

$4.71

In stock

11060

GASKET,CARBURETOR

11060-3761

1

$7.90

In stock

14073

DUCT

14073-3733

1

$32.03

In stock

32099

CASE

32099-3801

1

$116.05

In stock

59006

ARRESTER-FLAME

59006-3707

1

$31.84

In stock

59006A

ARRESTER-FLAME

59006-3708

1

$14.59

In stock

59076A

MANIFOLD-INTAKE

59076-3730

1

$294.13

In stock

59421A

COVER-INTAKE

59421-3733

1

$91.29

In stock

92002

BOLT,6X30

92002-3726

1
Out of stock

92015

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92072

BAND,L=152

92072-3874

1

$3.75

In stock

92150

BOLT,SOCKET,8X85

92150-3852

1

$17.53

In stock

92160

DAMPER

92160-3704

1

$18.29

In stock

92190

TUBE

92190-3965

1

$14.83

In stock
