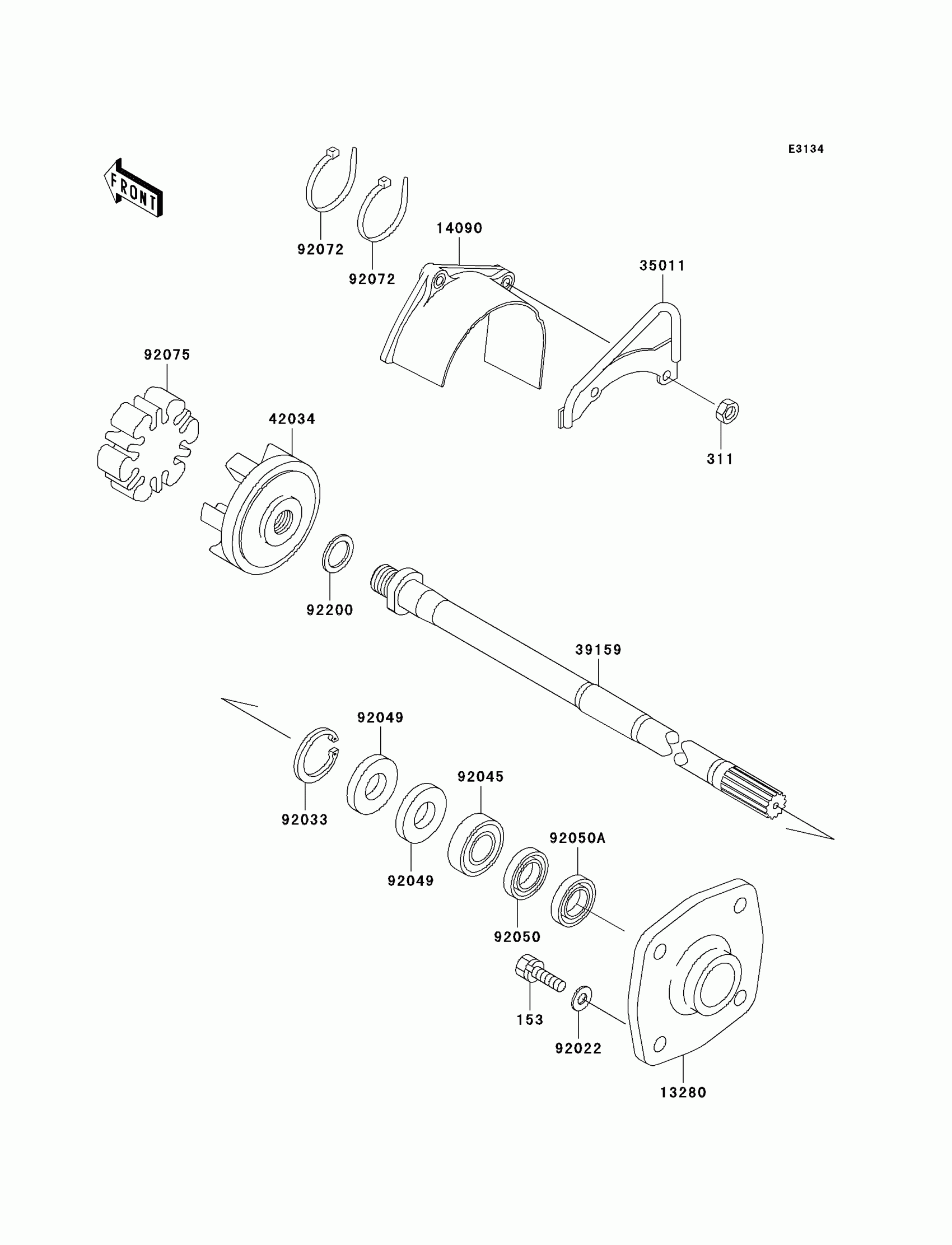

Find the part on the Drive Shaft diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki 800 SX-R Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

153

1

$5.36

In stock

311

NUT-HEX,6MM

311R0600

1

$0.75

In stock

13280

HOLDER

13280-3730

1
Out of stock

14090

COVER,COUPLING

14090-3761

1

$48.64

In stock

35011

STAY

35011-3704

1

$71.26

In stock

39159

SHAFT-DRIVE

39159-3738

1

$601.99

In stock

42034

COUPLING

42034-3707

1

$56.93

In stock

92022

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

92033

RING-SNAP,42MM

92033-3713

1

$16.63

In stock

92045

1

$29.91

In stock

92049

SEAL-OIL,S620426

92049-3707

1
Out of stock

92050

SEAL-OIL,SCY20368

92050-502

1
Out of stock

92050A

SEAL-OIL,SC20367

92050-503

1
Out of stock

92072

BAND,L=203.2

92072-3867

1

$1.61

In stock

92075

DAMPER,COUPLING

92075-520

1

$96.96

In stock

92200

WASHER,20X28X2.0

92200-3731

1
Out of stock
