2005 Kawasaki 800 SX-R Carburetor Diagram

← All diagrams

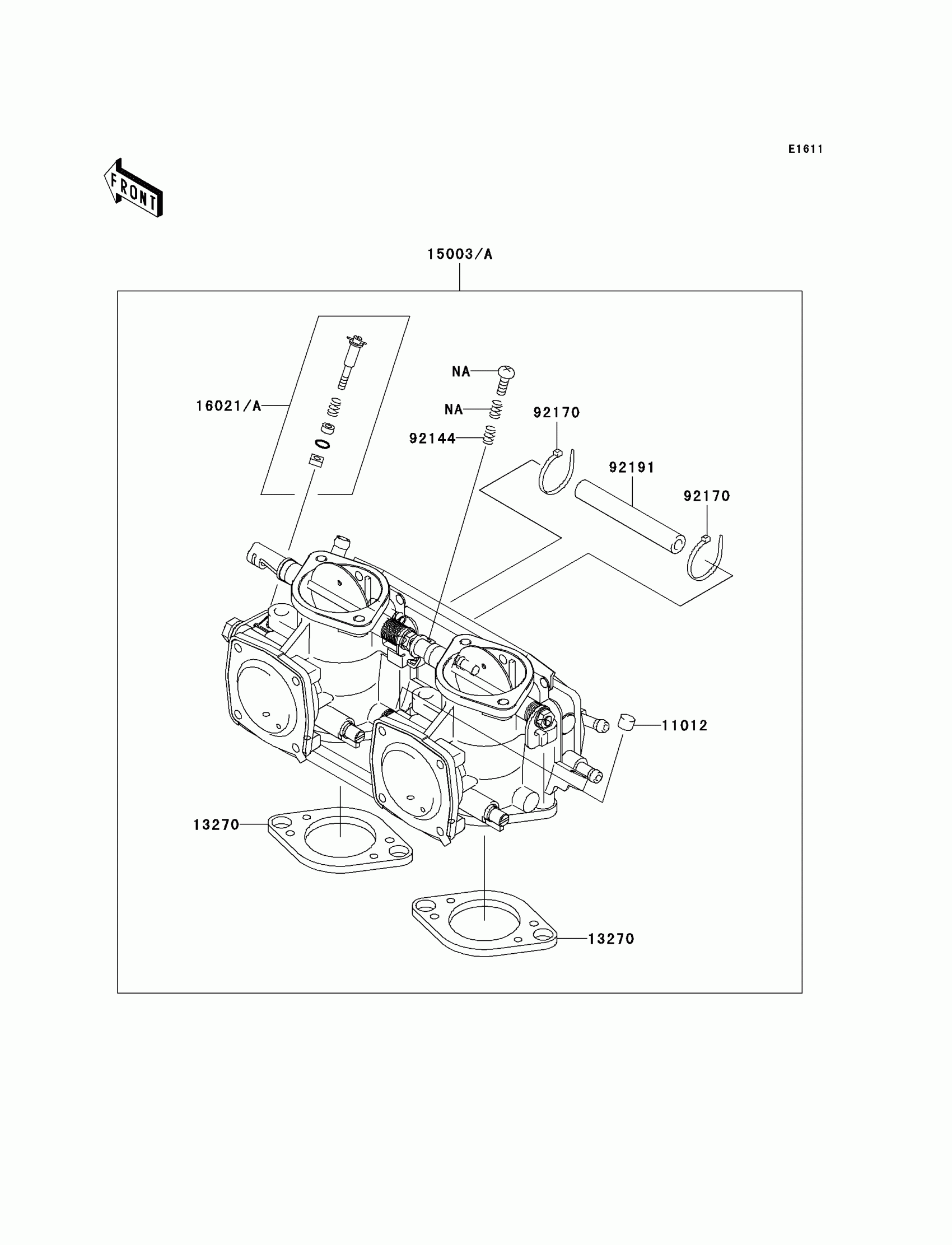

Find the part on the Carburetor diagram for your 2005 Kawasaki 800 SX-R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki 800 SX-R Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3789

1

$4.08

In stock

13270

PLATE,CARBURETOR

13270-3830

1
Out of stock

15003A

CARBURETOR-ASSY

15003-3746

1

$1,177.09

In stock

16021A

SCREW-THROTTLE STOP

16021-3710

1

$54.47

In stock

92144

SPRING

92144-3757

1

$9.31

In stock

92170

CLAMP

92170-3749

1

$3.15

In stock

92191

TUBE,5.3X10.5X85

92191-3770

1
Out of stock
