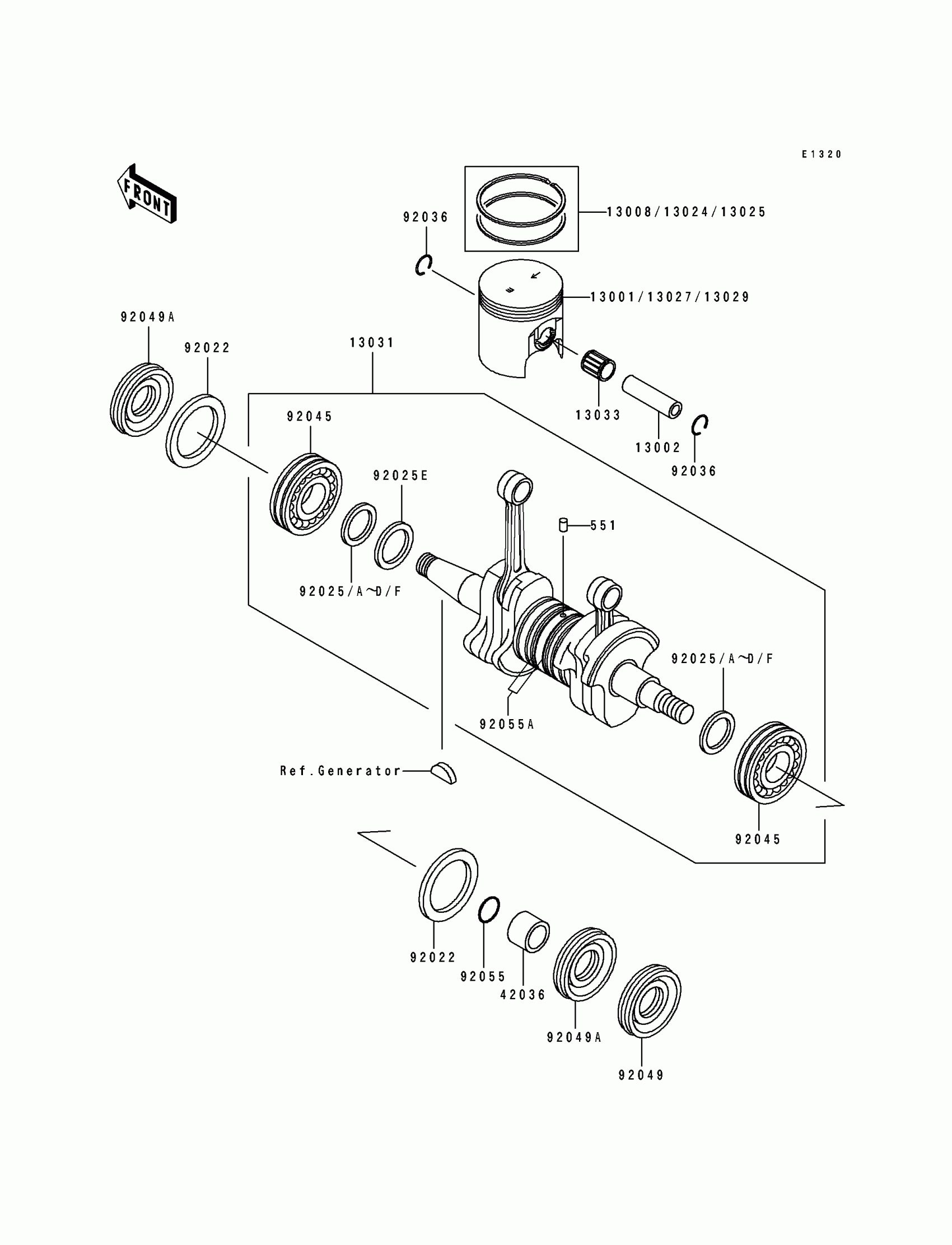

Kawasaki 550 SX Crankshaft/Piston(s) Diagram

#

Description
Price

13001

PISTON-ENGINE,STD

13001-3704

$128.94

13002

PIN-PISTON

13002-504

$12.41

13008

RING-SET-PISTON,STD

13008-3703

$82.54

13024

RING-SET-PISTON LL,O/S 1.00

13024-3703

$66.81

13025

RING-SET-PISTON L,O/S 0.50

13025-3703

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3704

$128.94

13029

PISTON-ENGINE L,O/S 0.50

13029-3704

Unavailable

13031

CRANKSHAFT-COMP

13031-3715

Unavailable

13033

BEARING-NEEDLE,KBK16X20X22.8X6

13033-3005

Unavailable

42036

SLEEVE,CRANKSHAFT OUT

42036-3007

Unavailable

92022

WASHER,CRANK,RH

92022-3021

$4.98

92025

SHIM,T=0.1

92025-513

Unavailable

92025A

SHIM,T=0.2

92025-518

Unavailable

92025B

SHIM,T=0.3

92025-523

Unavailable

92025C

SHIM,T=0.4

92025-527

Unavailable

92025D

SHIM,T=0.5

92025-530

Unavailable

92025E

SHIM,T=1.0MM

92025-532

$2.03

92025F

SHIM,T=0.6

92025-533

Unavailable

92036

RING-SNAP

92036-507

$0.55

92045

BEARING-BALL

92045-3010

$41.25

92049

SEAL-OIL,OIL,TCY306210

92049-3005

$74.18

92049A

SEAL-OIL,OIL,DCY30629

92049-3006

$18.12

92055

RING-O,22MM

92055-3009

Unavailable

92055A

RING-O

92055-504

Unavailable

551

PIN-DOWEL,4X10

551A0410

$0.57
