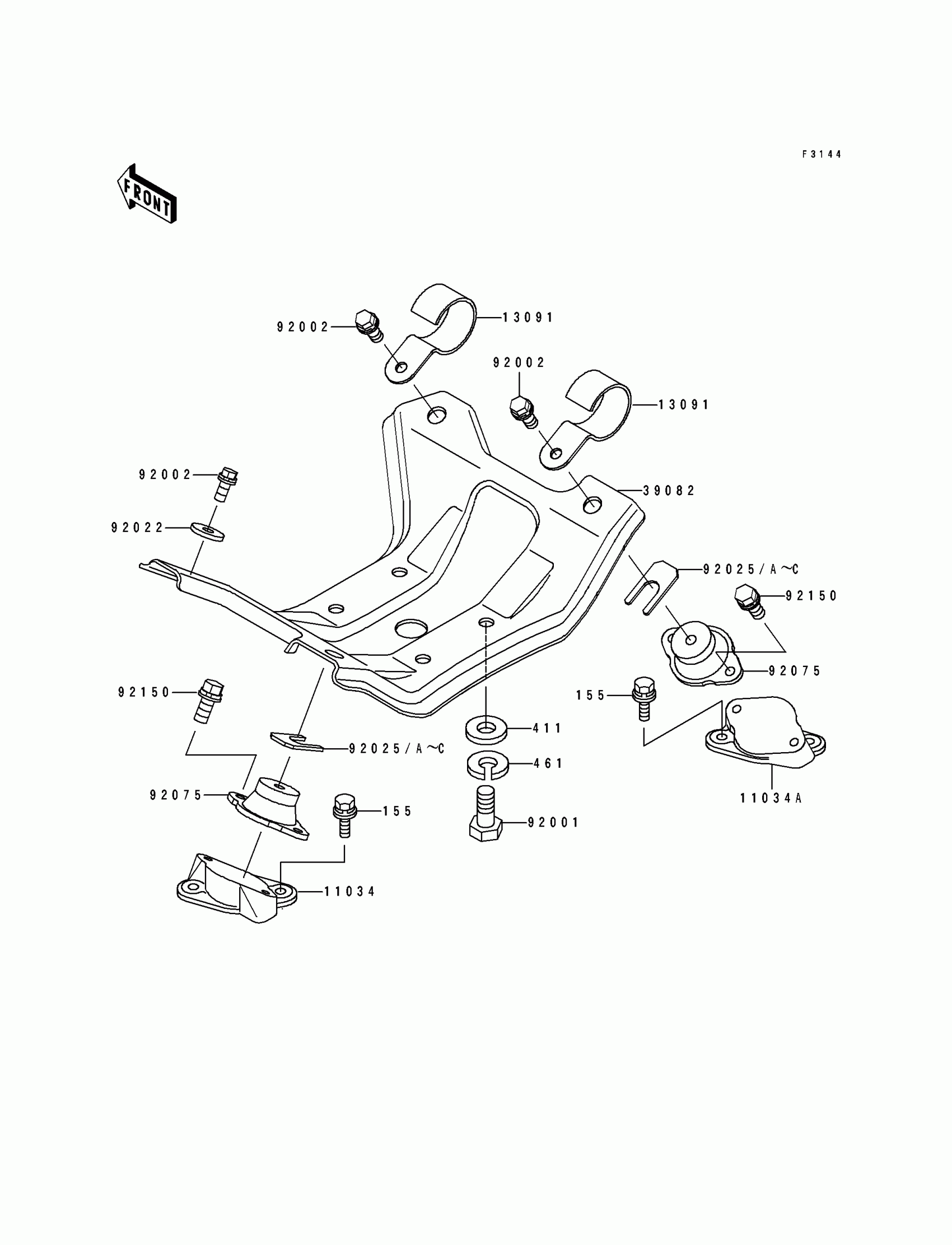

Kawasaki 550 SX Engine Mount Diagram

Description

Price

11034

BRACKET,ENGINE MOUNT

59016-532

Unavailable

11034A

BRACKET,ENGINE MOUNT

59016-533

Unavailable

13091

HOLDER,EXHAUST DUCT

13091-3737

Unavailable

39082

MOUNT-ENGINE

59181-509-9G

$132.60

92001

BOLT,1/2"X31

92003-533

Unavailable

92002

BOLT,10X25

92002-3770

$8.41

92022

WASHER,32X10.5X4

92022-3023

$6.74

92025

SHIM,T=0.3MM

92025-3705

Unavailable

92025A

SHIM,T=0.5MM

92025-3706

Unavailable

92025B

SHIM,T=1.0MM

92025-3707

Unavailable

92025C

SHIM,T=1.5MM

92025-3708

Unavailable

92075

DAMPER,ENGINE

92075-3006

Unavailable

92150

BOLT,8X20

92150-3713

$7.88

155

BOLT-WSP-SMALL,8X20

155R0820

$4.81

411

WASHER-PLAIN,14MM

411S1400

$4.49

461

WASHER-SPRING,14MM

461S1400

Unavailable
