1989 Kawasaki 454 LTD Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

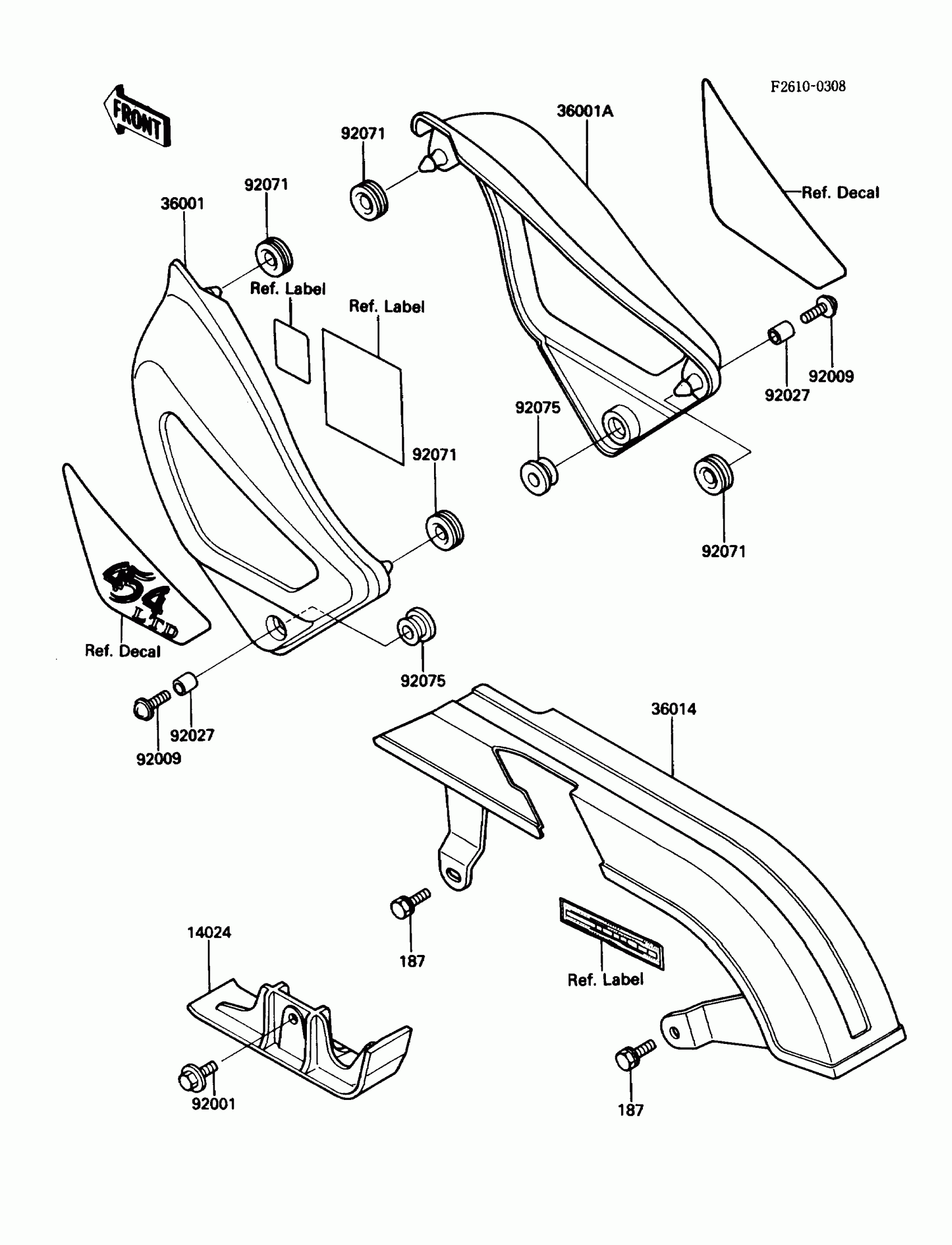

1989 Kawasaki 454 LTD Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,DRIVE BELT

14025-1381

1
Out of stock

36001

COVER-SIDE,LH

36001-1282

1

$114.97

In stock

36001A

COVER-SIDE,RH

36001-1283

1
Out of stock

36014

CASE-CHAIN

36014-1127

1

$133.77

In stock

92001

BOLT,6X16

92001-1772

1

$3.68

In stock

92009

SCREW,6X22,BLACK

92009-1251

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

1

$3.80

In stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock
