1989 Kawasaki 454 LTD Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

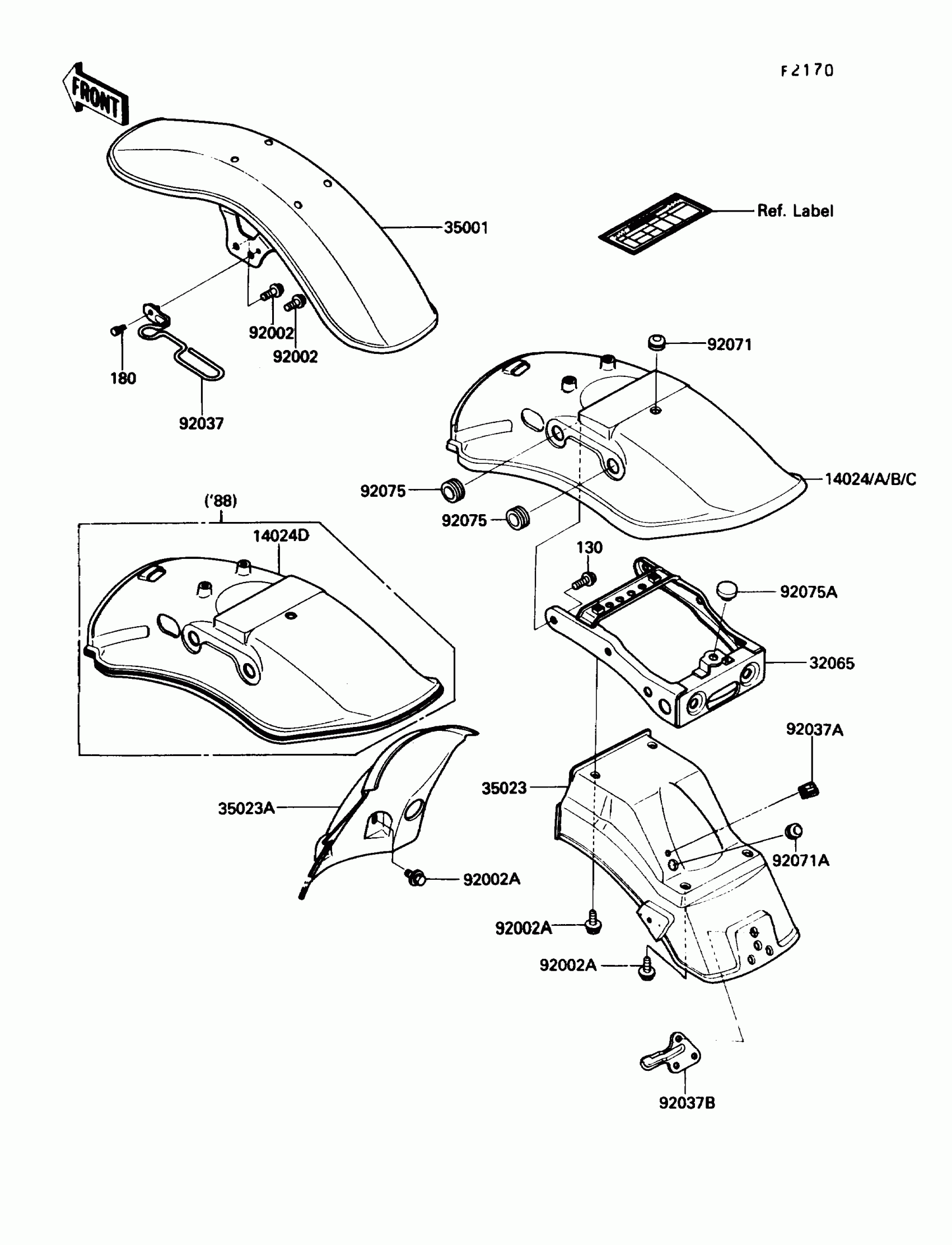

1989 Kawasaki 454 LTD Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024A

COVER,TAIL,M.S.BLACK

14025-1710-F4

1
Out of stock

32065

BRACKET-FENDER

32065-1176

1

$109.95

In stock

35001

FENDER-ASSY-FRONT,CR PLATED

35001-1111

1
Out of stock

35023

FENDER-REAR,RR,BLACK

35023-1126-6Z

1

$82.64

In stock

35023A

FENDER-REAR,FR

35023-1127

1

$82.64

In stock

92002

BOLT,FLANGED,8X16

92002-1200

1

$4.34

In stock

92002A

BOLT,6X16

92002-1219

1

$3.57

In stock

92037

CLAMP,CABLE

92037-1116

1
Out of stock

92037A

CLAMP,HARNESS

92037-1634

1

$10.24

In stock

92037B

CLAMP,HARNESS

92037-1635

1

$10.53

In stock

92071

GROMMET,10MM

92071-019

1

$3.10

In stock

92071A

GROMMET

92071-024

1

$4.14

In stock

92075

DAMPER

92075-104

1
Out of stock

92075A

DAMPER,9X24X14

92075-281

1

$4.93

In stock

130

BOLT-FLANGED

130D0820

1
Out of stock

180

BOLT 6X12

180B0612

1
Out of stock
