1989 Kawasaki 454 LTD Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

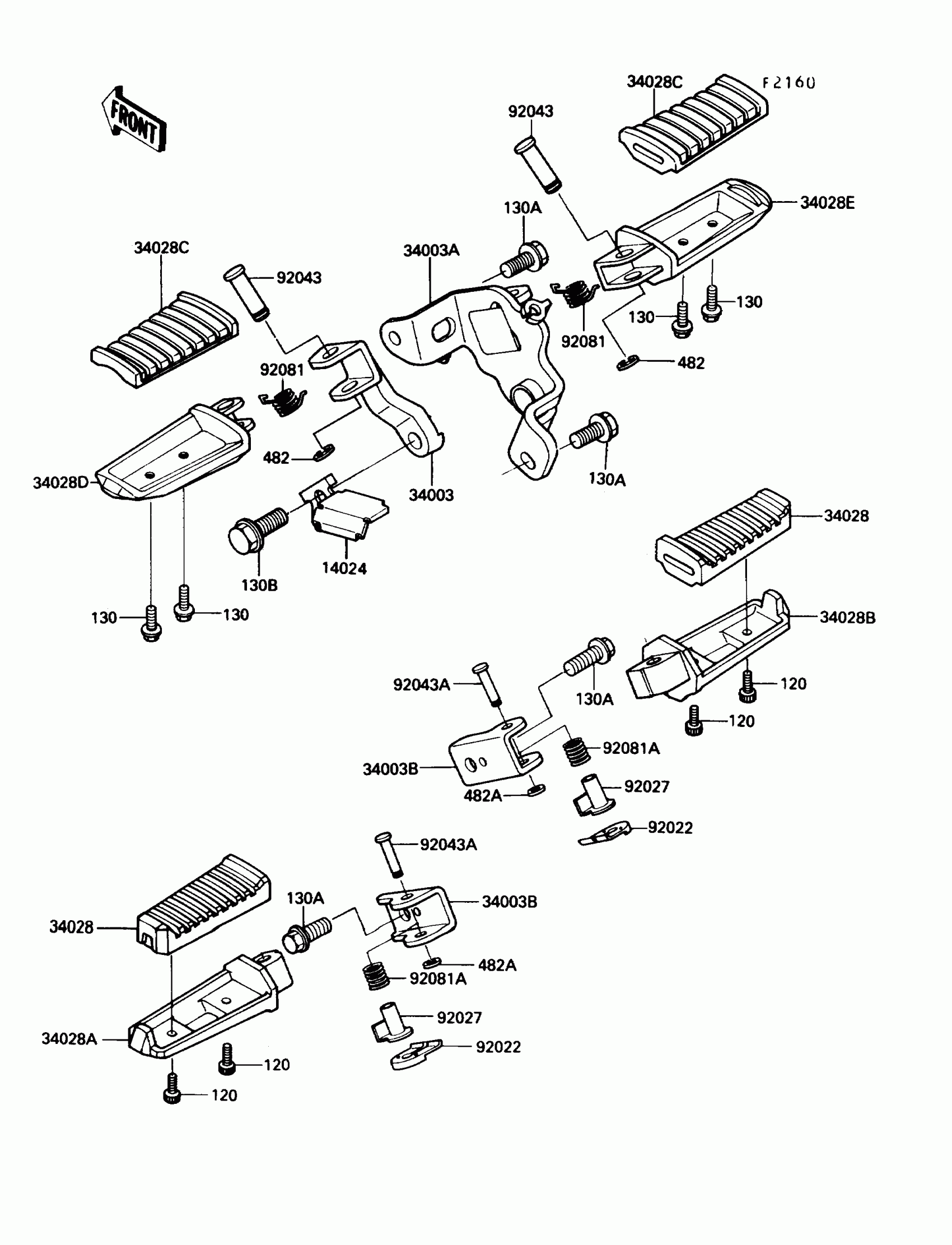

1989 Kawasaki 454 LTD Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SIDE STAND SWITCH

14024-1077

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1229

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1230

1
Out of stock

34003B

HOLDER-STEP,RR

34003-1231

1

$37.23

In stock

34028

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028A

STEP,RR,LH

34028-1121

1
Out of stock

34028B

STEP,RR,RH

34028-1122

1
Out of stock

34028C

STEP,FR,RUBBER

34028-1132

1

$23.34

In stock

34028D

STEP,FR,LH

34028-1160

1

$56.31

In stock

34028E

STEP,FR,RH

34028-1161

1

$60.11

In stock

92022

WASHER,STOPPER

92022-1661

1

$6.51

In stock

92027

COLLAR,STEP

92027-1732

1

$10.73

In stock

92043

PIN,12X37

92043-1144

1

$8.90

In stock

92043A

PIN,6X34

92043-1271

1

$4.85

In stock

92081

1

$5.15

In stock

92081A

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

120

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

130

BOLT-FLANGED,5X10

130B0510

1
Out of stock

130A

BOLT-FLANGED,10X20

130J1020

1
Out of stock

130B

BOLT-FLANGED

130J1230

1
Out of stock

482

1

$0.98

In stock

482A

1

$1.20

In stock
