1989 Kawasaki 454 LTD Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

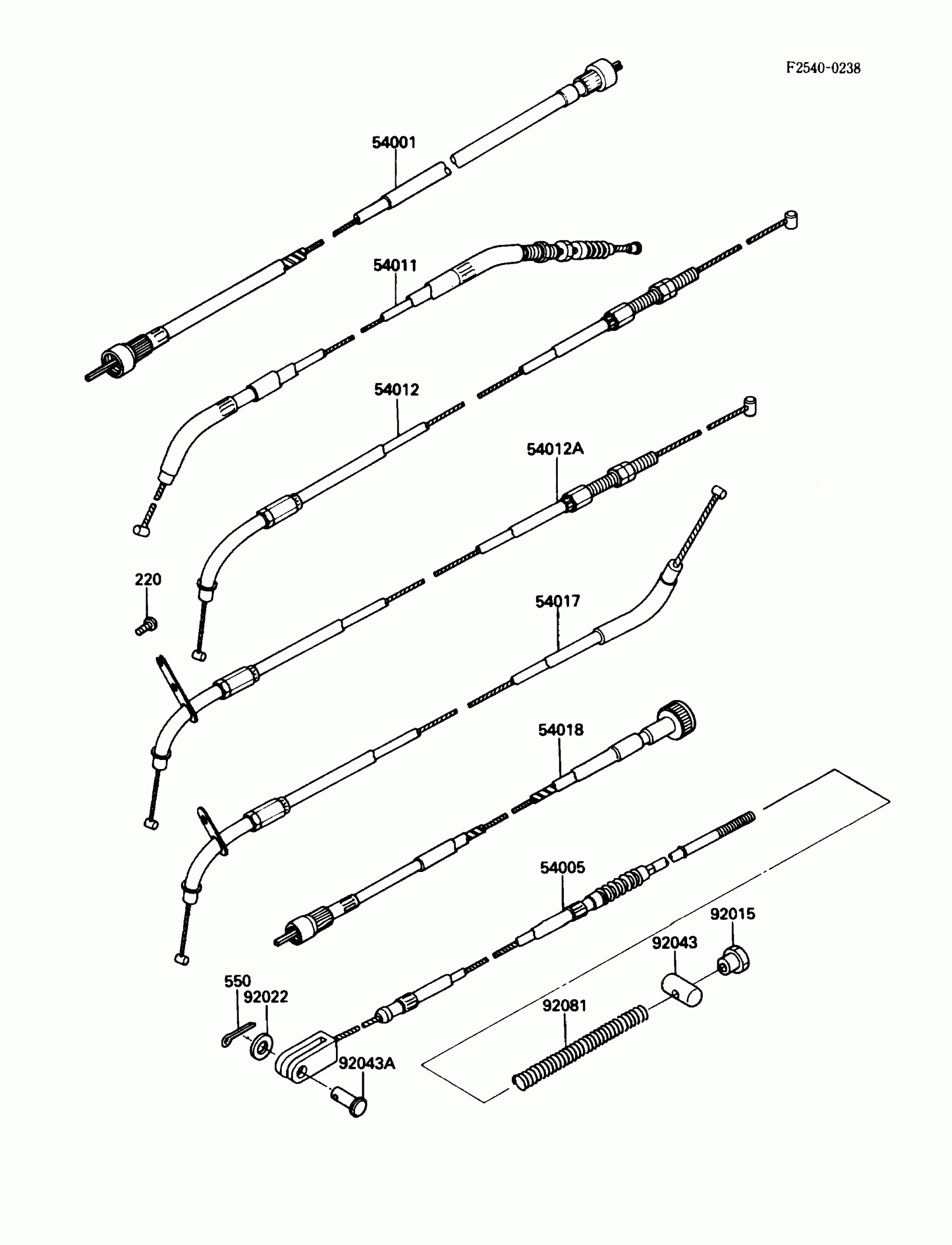

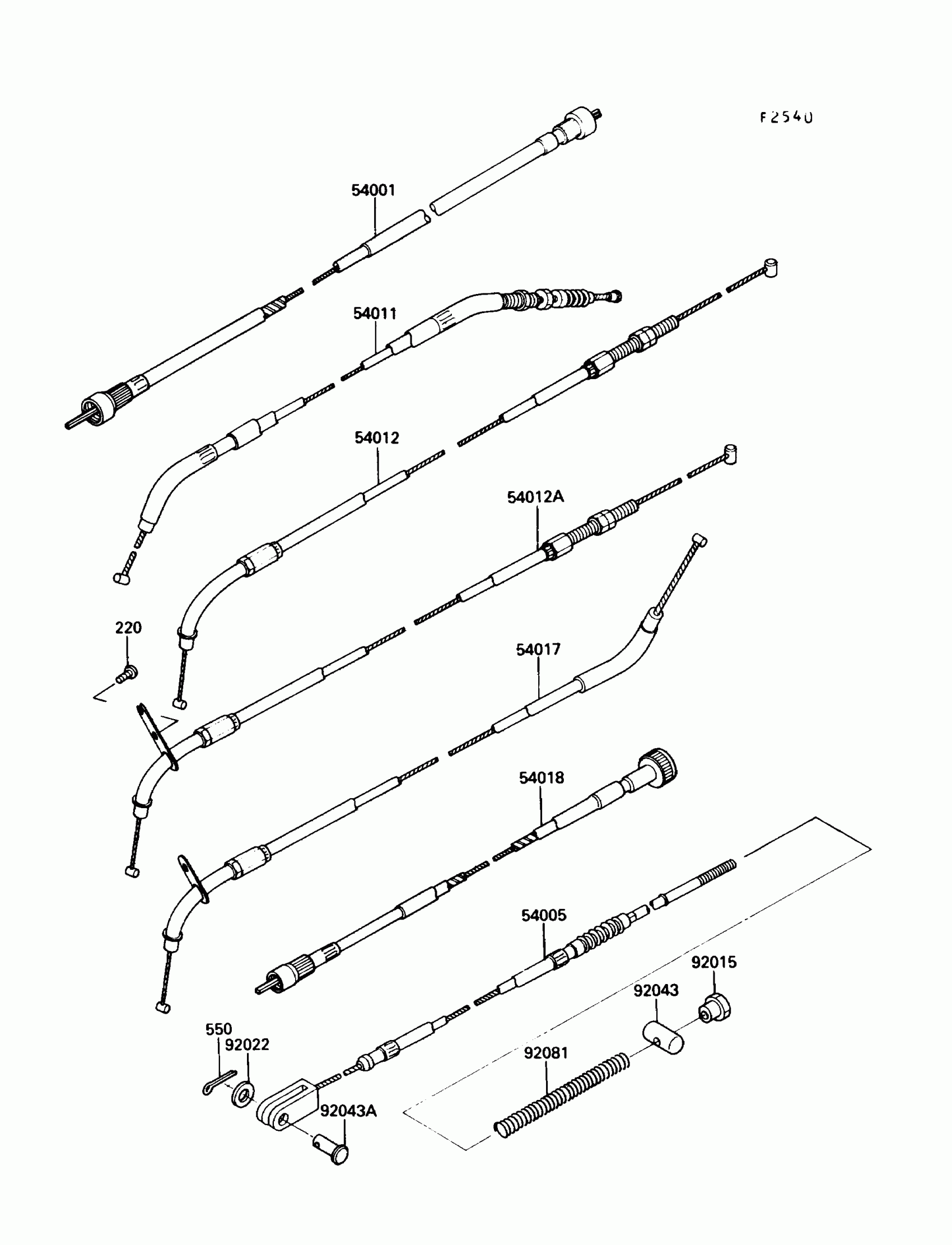

1989 Kawasaki 454 LTD Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1113

1
Out of stock

54005

CABLE-BRAKE

54005-1125

1
Out of stock

54011

CABLE-CLUTCH

54011-1231

1
Out of stock

54012

CABLE-THROTTLE,OPENING

54012-1264

1
Out of stock

54012A

1

$41.60

In stock

54017

CABLE-STARTER

54017-1063

1
Out of stock

54018

CABLE-TACHOMETER

54018-1054

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92043

PIN,BRAKE ROD

92043-065

1

$4.42

In stock

92043A

PIN,8X16

92043-1013

1
Out of stock

92081

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
