1989 Kawasaki 454 LTD Front Master Cylinder Diagram

← All diagrams

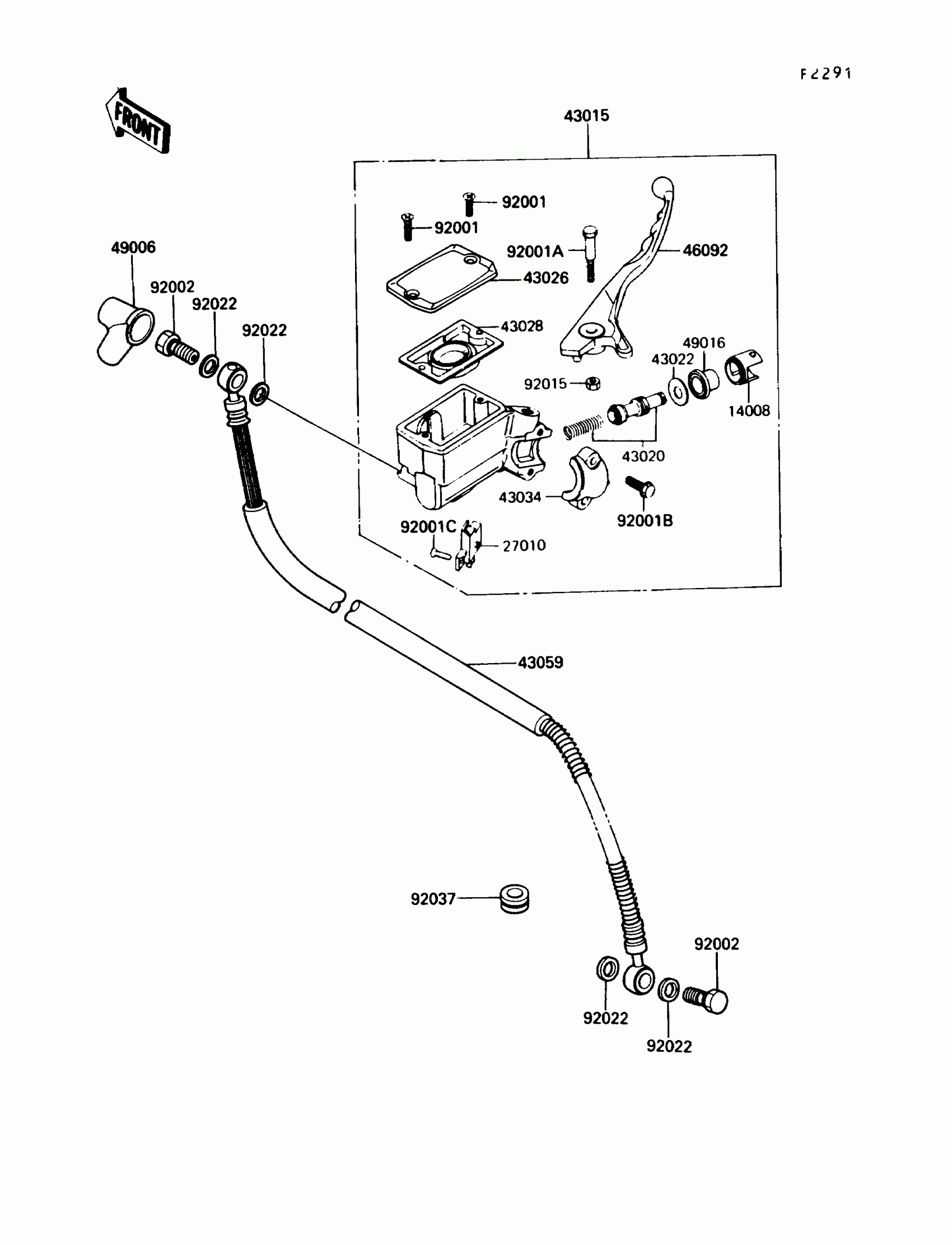

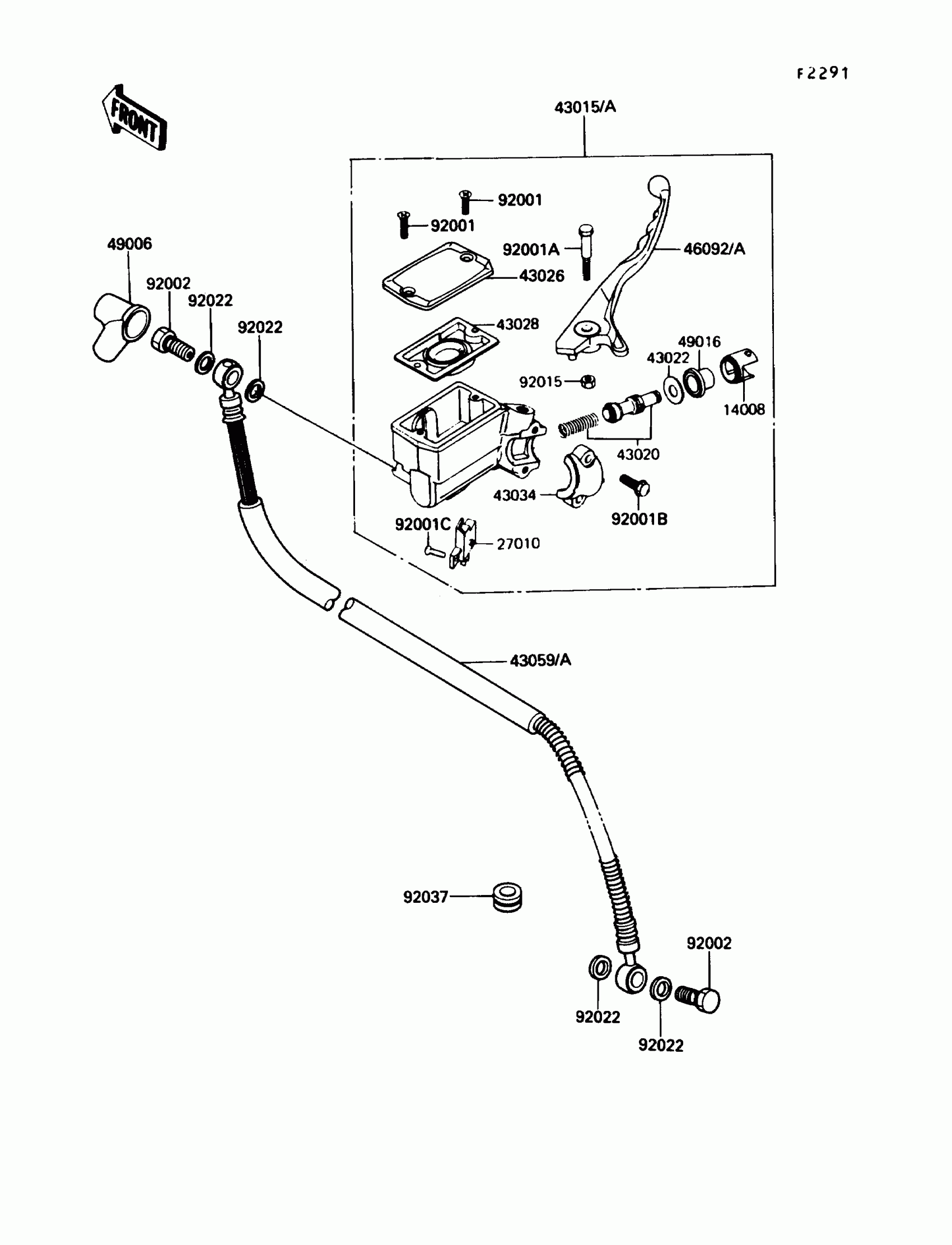

Find the part on the Front Master Cylinder diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1035

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015A

1

$424.18

In stock

43020

PISTON-COMP-BRAKE

43020-1033

1
Out of stock

43022

1

$5.20

In stock

43026

CAP-BRAKE

43026-1056

1
Out of stock

43028

1

$25.99

In stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059A

HOSE-BRAKE,FR

43059-1476

1

$140.82

In stock

46092A

LEVER-GRIP,FRONT BRAKE

46092-1150

1
Out of stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

1

$10.69

In stock

92001

1

$4.84

In stock

92001A

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001B

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001C

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock
