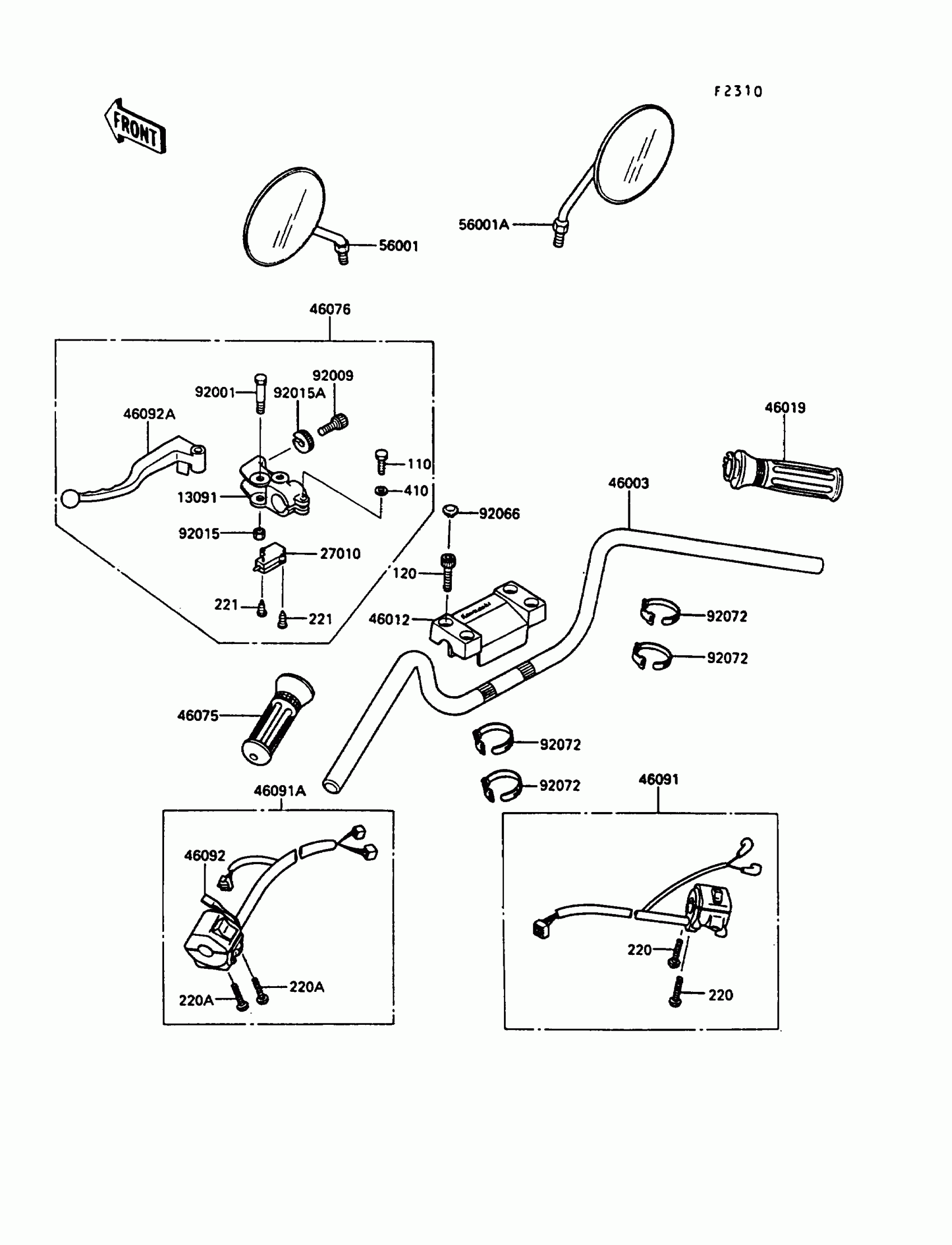

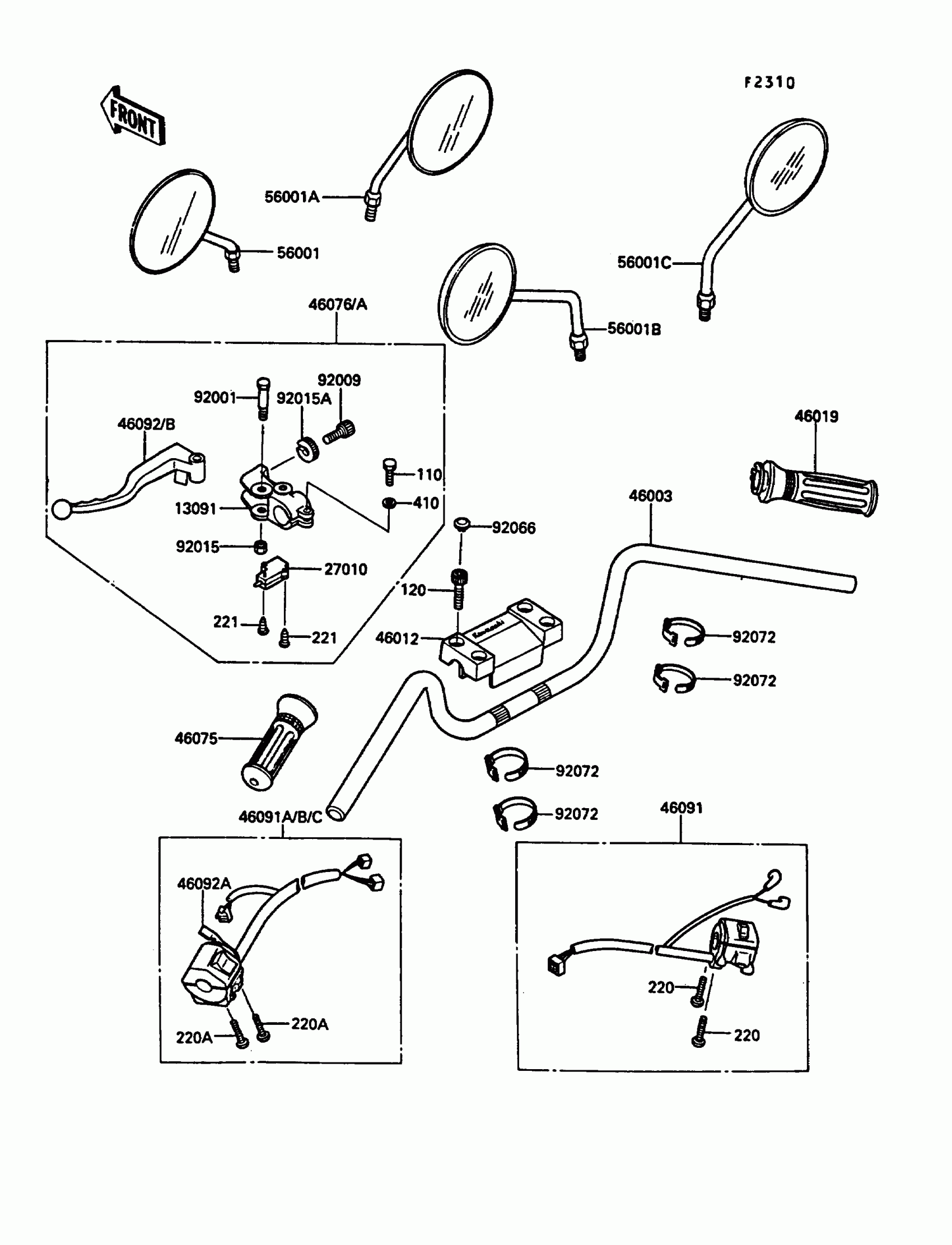

Kawasaki 454 LTD Handlebar Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER

13091-1272

$49.42

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003

HANDLE

46003-1181

$133.35

46012

HOLDER-HANDLE

46012-1125

$93.35

46019

GRIP-ASSY,THROTTLE

46019-1062

$33.35

46075

GRIP,LH

46075-1061

Unavailable

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-1133

$77.27

46091

HOUSING-ASSY-CONTROL,RH

46091-1354

Unavailable

46091C

HOUSING-ASSY-CONTROL,LH

46091-1506

$223.13

46092A

LEVER-GRIP,CHOKE

46092-1124

$6.67

46092B

LEVER-GRIP,CLUTCH

46092-1153

Unavailable

56001

MIRROR-ASSY,LH

56001-1007

Unavailable

56001A

MIRROR-ASSY,RH

56001-1008

Unavailable

56001B

MIRROR-ASSY,LH

56001-1023

Unavailable

56001C

MIRROR-ASSY,RH

56001-1024

Unavailable

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

$6.46

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92066

PLUG

92066-1216

$3.54

92072

BAND,L=123

92072-030

$3.81

110

BOLT,6X22,BLACK

110C0622

Unavailable

120

BOLT-SOCKET,8X30

120S0830

Unavailable

220

SCREW-PAN-CROS,5X40

220C0540

Unavailable

220A

SCREW-PAN-CROS,5X45

220C0545

$1.49

221

SCREW-CSK-CROS

221C0316

$3.24

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable
