1989 Kawasaki 454 LTD Swingarm/shock Absorber Diagram

← All diagrams

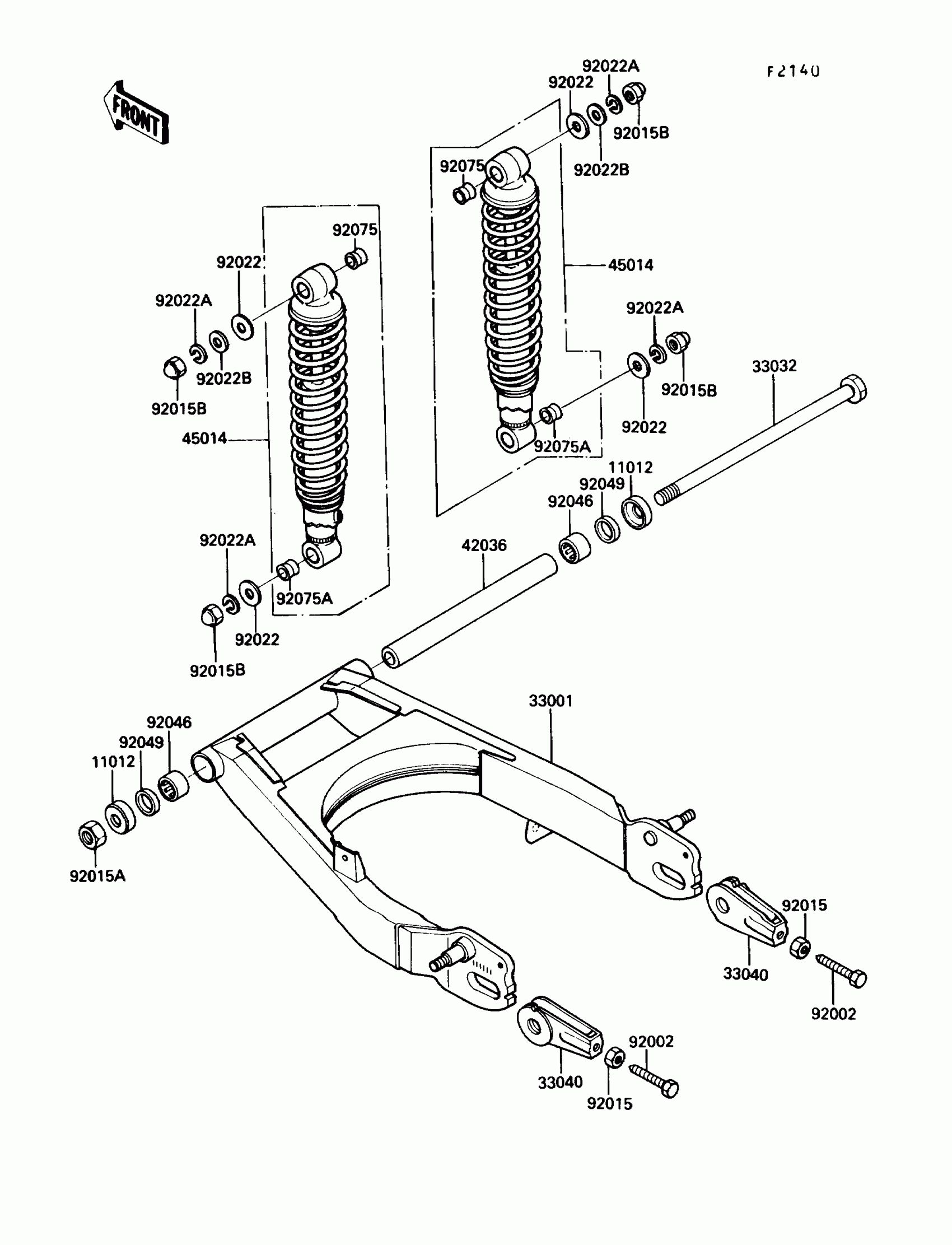

Find the part on the Swingarm/shock Absorber diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki 454 LTD Swingarm/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1029

1

$20.53

In stock

33001

ARM-COMP-SWING

33001-1235

1

$261.18

In stock

33032

SHAFT-SWING ARM

33032-1113

1
Out of stock

33040

ADJUSTER-CHAIN

33040-043

1

$31.12

In stock

42036

SLEEVE,SWING ARM

42036-1018

1
Out of stock

45014

SHOCKABSORBER

45014-1305

1

$373.43

In stock

92002

1

$7.52

In stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,14MM

92015-1411

1

$9.69

In stock

92015B

NUT,CAP,10MM

92020-003

1

$5.16

In stock

92022

WASHER,10.5X26X2.3

92022-044

1

$3.12

In stock

92022A

WASHER,SPRING,10MM

92022-1540

1

$3.27

In stock

92022B

WASHER,10.5X22X1.6

92022-1558

1

$3.92

In stock

92046

BEARING-NEEDLE,HK2216

92046-1115

1
Out of stock

92049

SEAL-OIL,MHA22284

92049-1059

1
Out of stock

92075

DAMPER,SHOCKABSORBER

45017-015

1
Out of stock

92075A

1

$11.79

In stock
