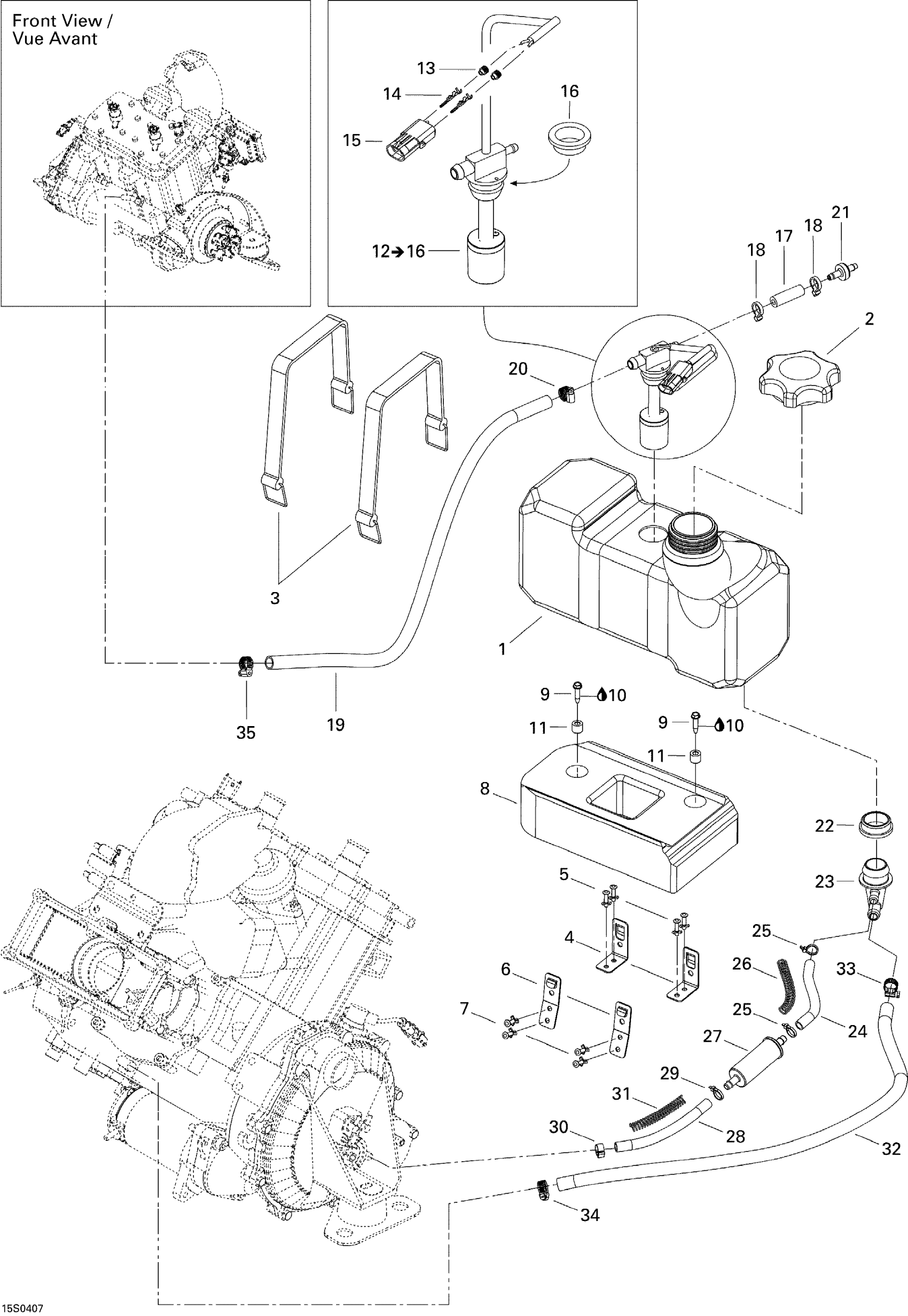

Sea-doo 3D RFI, 2004 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000210

Unavailable

2

Fuel Tank Cap

513033025

Unavailable

3

Retainer Strap

293850097

Unavailable

4

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

5

Avdel Rivet 3/16"

293150037

Unavailable

6

Strap Clip

293850030

Unavailable

7

Avdel Rivet 3/16"

293150037

Unavailable

8

Foam Pad

275000258

Unavailable

9

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

10

Loctite 271, 10 ml

293800005

Unavailable

11

Sleeve

292000528

Unavailable

12

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

13

Wire Seal

278000218

Unavailable

14

Male Terminal | XT Models

278000222

Unavailable

15

Female Housing, 2 Circuits

278000217

Unavailable

16

Grommet

293720008

Unavailable

17

Was 275500549 Hose 1/4"

219704357

Unavailable

18

Tie Wrap 142 mm

293750002

Unavailable

19

Was 275500008 Hose 12 mm

219704356

Unavailable

20

Norma Clamp

293650084

Unavailable

21

Check Valve

275500398

Unavailable

22

Grommet

293720008

Unavailable

23

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

25

Tie Wrap 94 mm | 4X4

293750001

Unavailable

26

SPRING - Call your local BRP dealership

275000261

Unavailable

27

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

28

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

Unavailable

30

Oetiker Clamp

293650042

Unavailable

31

SPRING - Call your local BRP dealership

275000261

Unavailable

32

Was 275500008 Hose 12 mm

219704356

Unavailable

33

Norma Clamp

293650084

Unavailable

34

Norma Clamp

293650084

Unavailable

35

Norma Clamp

293650084

Unavailable
