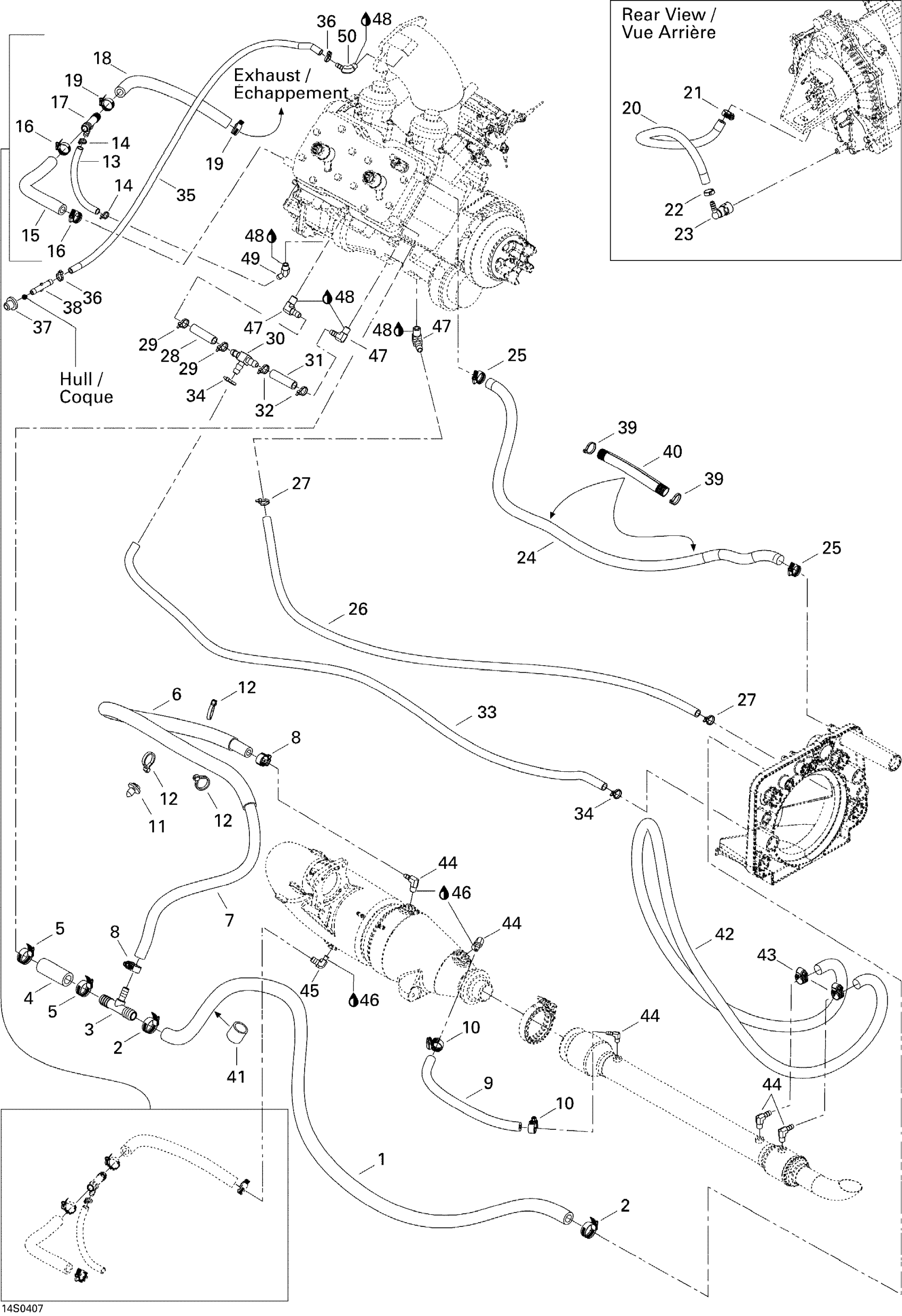

Sea-doo 3D RFI, 2004 Cooling System Diagram

#

Description
Price

1

Was 276000001 Hose 12.5 mm

219704394

Unavailable

2

Tridon Gear Clamp

293650172

Unavailable

3

T-Fitting

293710116

Unavailable

4

Was 276000001 Hose 12.5 mm

219704394

Unavailable

5

Tridon Gear Clamp

293650172

Unavailable

6

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

7

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

8

Tridon Gear Clamp

293650170

Unavailable

9

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

10

Tridon Gear Clamp

293650170

Unavailable

11

Mount Dart

293730040

Unavailable

12

Tie Wrap 142 mm

293750002

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

14

Tie Wrap 94 mm | 4X4

293750001

Unavailable

15

Was 276000001 Hose 12.5 mm

219704394

Unavailable

16

Tridon Gear Clamp

293650172

Unavailable

17

T-Fitting

293710116

Unavailable

18

Was 276000001 Hose 12.5 mm

219704394

Unavailable

19

Tridon Gear Clamp

293650172

Unavailable

20

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

21

Tridon Gear Clamp

293650170

Unavailable

22

Crimp Clamp, 15.3-706R

293650047

Unavailable

23

Quick Fitting 90° Ass'y

415128965

Unavailable

24

Was 276000001 Hose 12.5 mm

219704394

Unavailable

25

Tridon Gear Clamp

293650172

Unavailable

26

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

27

Tie Wrap 94 mm | 4X4

293750001

Unavailable

28

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

Unavailable

30

T-FITTING - Call your local BRP dealership

293710061

Unavailable

31

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

32

Tie Wrap 94 mm | 4X4

293750001

Unavailable

33

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

34

Tie Wrap 94 mm | 4X4

293750001

Unavailable

35

Hose 6 Mm 15000Mm Long

219704360

Unavailable

36

Tie Wrap 94 mm | 4X4

293750001

Unavailable

37

Grommet

293720029

Unavailable

38

Straight Fitting

293710039

Unavailable

39

Tie Wrap 142 mm

293750002

Unavailable

40

Tubing 25 MM 1000MM Long

219704402

Unavailable

41

Shrink Tubing

276000132

Unavailable

42

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

43

Tridon Gear Clamp

293650170

Unavailable

44

Elbow Fitting 90°

293700022

Unavailable

45

Elbow Fitting 90° | Without Catalyst

293700023

Unavailable

46

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

47

Elbow Fitting

293700016

Unavailable

48

Was 293800013 Loctite 56765

219704454

Unavailable

49

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

50

Elbow Fitting 90°

293710018

Unavailable
