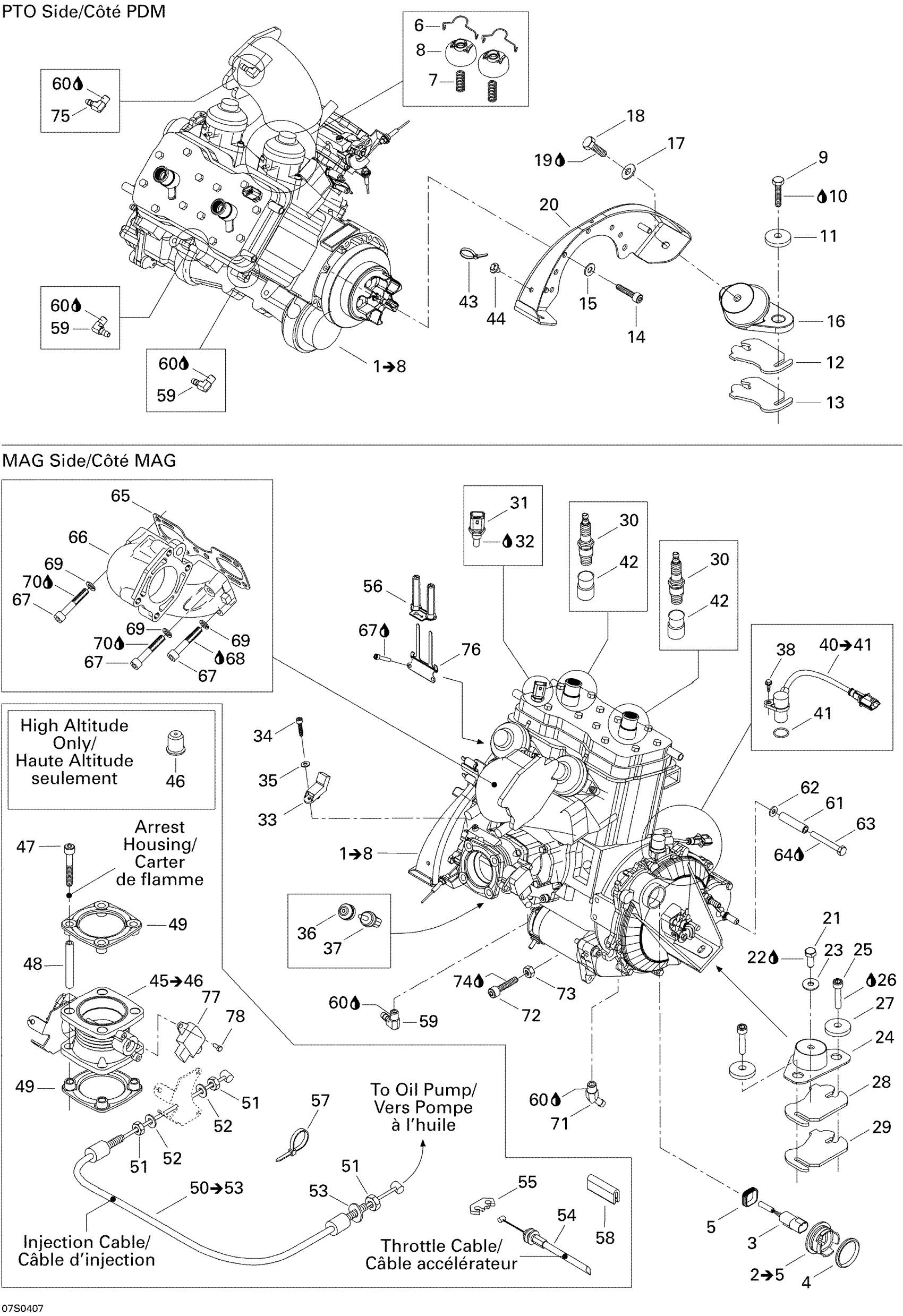

Sea-doo 3D RFI, 2004 Engine Diagram

#

Description
Price

1

Rotax Engine 787 SDI | Includes 1 to 8

270000583

Unavailable

2

Adaptor Ass'y | Includes 2 to 5

270000243

Unavailable

3

Female Housing, 4 Circuits

278000635

$13.60

4

Gasket

293300033

Unavailable

5

GASKET - Call your local BRP dealership

293200042

Unavailable

6

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

7

COMPRESSION SPRING - Call your local BRP dealership

420939137

Unavailable

8

Valve Cover This part replaces 420911558.

420911559

$24.02

9

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

10

Loctite 243, 10 ml

293800060

$20.77

11

Cone Washer

250200018

$4.64

12

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

13

Shim 1.3 mm

270000762

$9.04

14

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

15

Stainless, Flat Washer 8 mm

234081600

$0.46

16

RUBBER MOUNT - Call your local BRP dealership

270000631

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$1.98

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Loctite 243, 10 ml

293800060

$20.77

20

ENGINE SUPPORT - Call your local BRP dealership

270000622

Unavailable

21

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

22

Loctite 243, 10 ml

293800060

$20.77

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

RUBBER MOUNT - Call your local BRP dealership

270000588

Unavailable

25

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Cone Washer

250200018

$4.64

28

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

29

Shim 1.3 mm

270000762

$9.04

30

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.03

31

Temperature Sensor

278002895

$31.82

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

33

Pressure Sensor

270600040

$157.92

34

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

35

Stainless Flat Washer M6

234061600

$0.25

36

INSULATOR - Call your local BRP dealership

278001054

Unavailable

37

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

38

Hex. Forming Screw M6 X 16

210361660

Unavailable

39

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

40

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

43

Tie-Rap 180 mm

414115200

$0.09

44

Mount Dart

293730040

$0.86

45

THROTTLE BODY ASS'Y - Call your local BRP dealership | Includes 37 to 38

270600092

Unavailable

46

Cap, High Altitude

270600097

Unavailable

47

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

48

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

49

GASKET - Call your local BRP dealership

293250071

Unavailable

50

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

Unavailable

51

Hex. Nut M6

232160600

$1.04

52

Stainless Flat Washer M6

234061600

$0.25

53

Lock Washer Helical M6

234161601

$0.92

54

THROTTLE CABLE - Call your local BRP dealership

277001208

Unavailable

55

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

56

INSULATOR - Call your local BRP dealership

278001512

Unavailable

57

Tie Wrap 142 mm

293750002

$0.88

58

Was 271000110 Protection Trim

219704353

$14.58

59

Elbow Fitting

293700016

Unavailable

60

Was 293800013 Loctite 56765

219704454

$63.40

61

Spacer Tube

275500640

Unavailable

62

Stainless Flat Washer M6

234061600

$0.25

63

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

64

Loctite 243, 10 ml

293800060

$20.77

65

Gasket This part replaces 290931480.

420931481

$15.57

66

Exhaust Manifold, Black

420979483

Unavailable

67

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

68

Loctite 243, 10 ml

293800060

$20.77

69

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

70

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

71

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

72

Socket Screw M10 X 30

205003060

Unavailable

73

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

74

Loctite 271, 10 ml

293800005

$20.77

75

Elbow Fitting 90°

293710018

Unavailable

76

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

77

Position Sensor

420866120

$77.97

78

Not Available As Spare Part - Friction Washer

Unavailable
