Air Intake

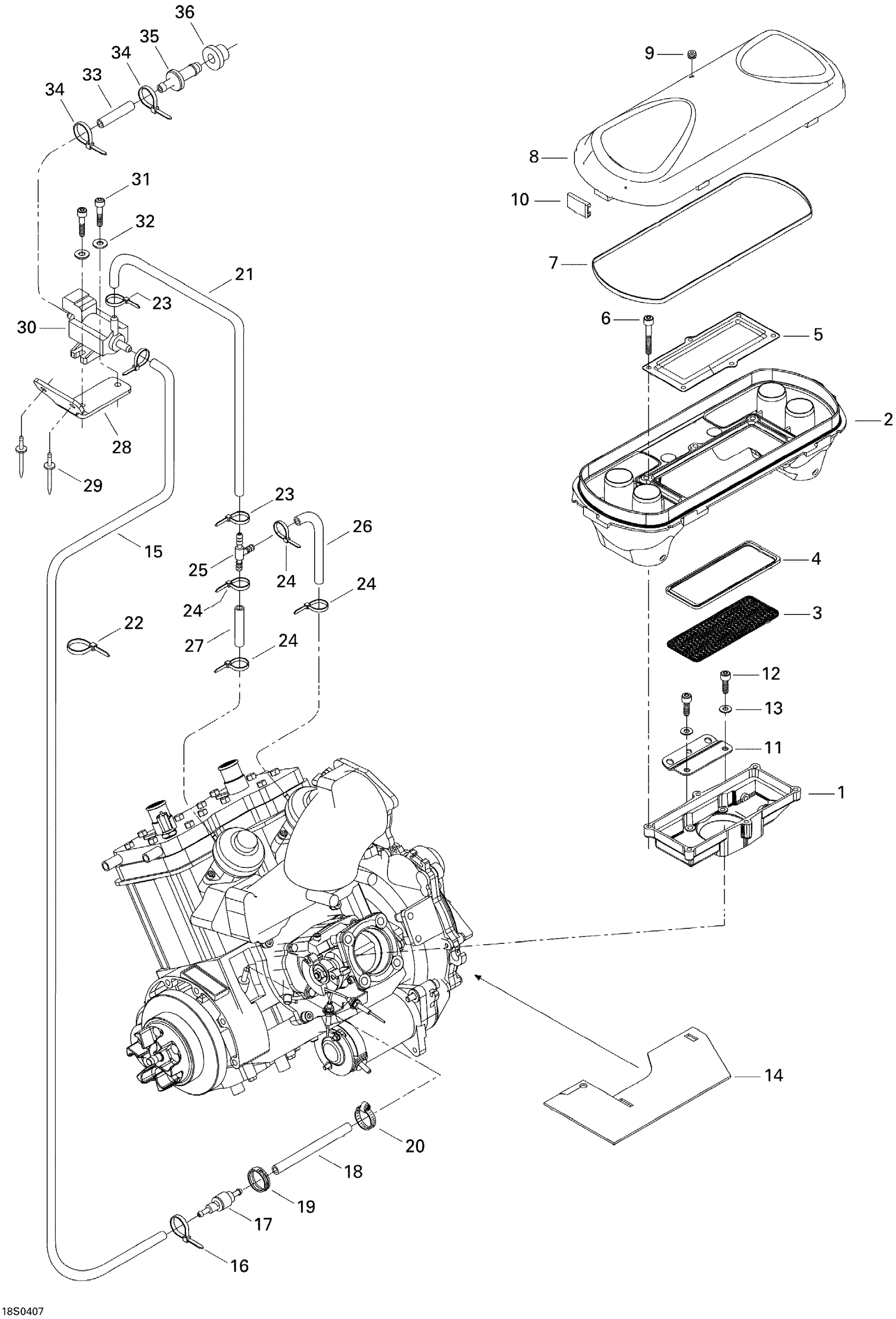

Sea-doo 3D RFI, 2004 Air Intake Diagram
#
1
Arrest Housing, Black
273000226
Unavailable
2
AIR SILENCER BASE - Call your local BRP dealership
273000103
Unavailable
3
Flame Arrester
273000118
Unavailable
4
ISOLATOR - Call your local BRP dealership
273000020
Unavailable
5
HOLDER PLATE - Call your local BRP dealership
273000059
Unavailable
6
Socket Head Screw M6 X 25, Scotch Grip
205562560
Unavailable
7
GASKET - Call your local BRP dealership
293250023
Unavailable
8
AIR SILENCER COVER - Call your local BRP dealership
273000115
Unavailable
9
Rubber Bumper
293830005
Unavailable
10
Retainer Clip
273000006
Unavailable
11
SUPPORT - Call your local BRP dealership
270000565
Unavailable
12
Socket Head Screw M6 X 12, Scotch Grip
205561260
Unavailable
13
Stainless Flat Washer M6
234061600
Unavailable
14
Protector Pad
270000646
Unavailable
15
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
16
Tie Wrap 94 mm | 4X4
293750001
Unavailable
17
CHECK VALVE - Call your local BRP dealership
275500479
Unavailable
18
Was 275500549 Hose 1/4"
219704357
Unavailable
19
Oetiker Gear Clamp
293650025
Unavailable
20
Tridon Gear Clamp
293650170
Unavailable
21
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
22
Tie-Rap 180 mm
414115200
Unavailable
23
Tie Wrap 94 mm | 4X4
293750001
Unavailable
24
Tie Wrap 94 mm | 4X4
293750001
Unavailable
25
T-Fitting
293710068
Unavailable
26
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
27
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
28
Solenoid Valve Support
270000625
Unavailable
29
Pop Rivet 3/16"
293150123
Unavailable
30
Solenoid Valve
270600005
Unavailable
31
Hex. Screw M5 X 16, Scotch Grip
207351660
Unavailable
32
Flat Washer M5, Stainless
234051600
Unavailable
33
Was 420660574 Pressure Hose 280 mm
219704352
Unavailable
34
Tie Wrap 94 mm | 4X4
293750001
Unavailable
35
Fitting
293700031
Unavailable
36
Grommet
293720029
Unavailable
