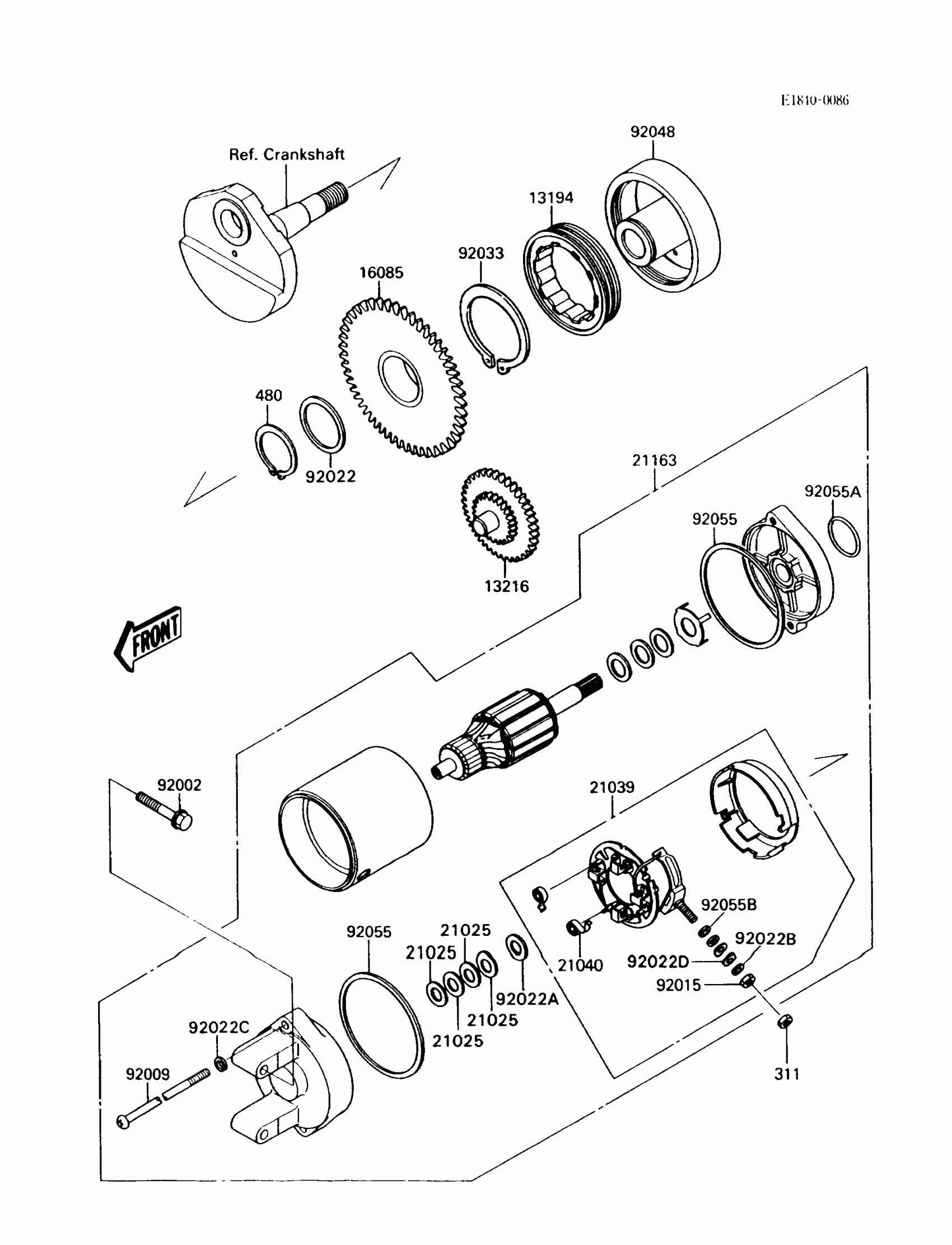

Kawasaki 300 SX Starter Motor(JS300-A1) Diagram

Description

Price

13194

CLUTCH-ONEWAY

13194-3703

Unavailable

13216

GEAR-COMP,STARTER IDLE

13216-1009

Unavailable

16085

GEAR,STARTER,59T

16085-3701

Unavailable

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-3702

Unavailable

21040

SPRING-BRUSH

21040-1003

$9.12

21163

STARTER-ELECTRIC

21163-3703

$617.38

92002

BOLT,6X35

92002-3715

$5.75

92009

SCREW,STARTER MOTOR

92009-3702

$13.32

92015

NUT,6MM

92015-3710

$3.75

92022

WASHER,36.3X46X2

92022-1102

$5.27

92022A

WASHER,9.1X18X0.8

92022-1132

$5.42

92022B

WASHER,6MM

92022-3711

$3.75

92022C

WASHER,SPRING,5MM

92022-3712

Unavailable

92022D

WASHER,6MM

92022-3713

$2.19

92033

RING-SNAP

92033-3706

Unavailable

92048

RACE,CLUTCH

92048-3706

$239.30

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

311

NUT-HEX,6MM

311R0600

$0.65

480

CIRCLIP-TYPE-C,36MM

480J3600

Unavailable
