1987 Kawasaki 300 SX Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1987 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

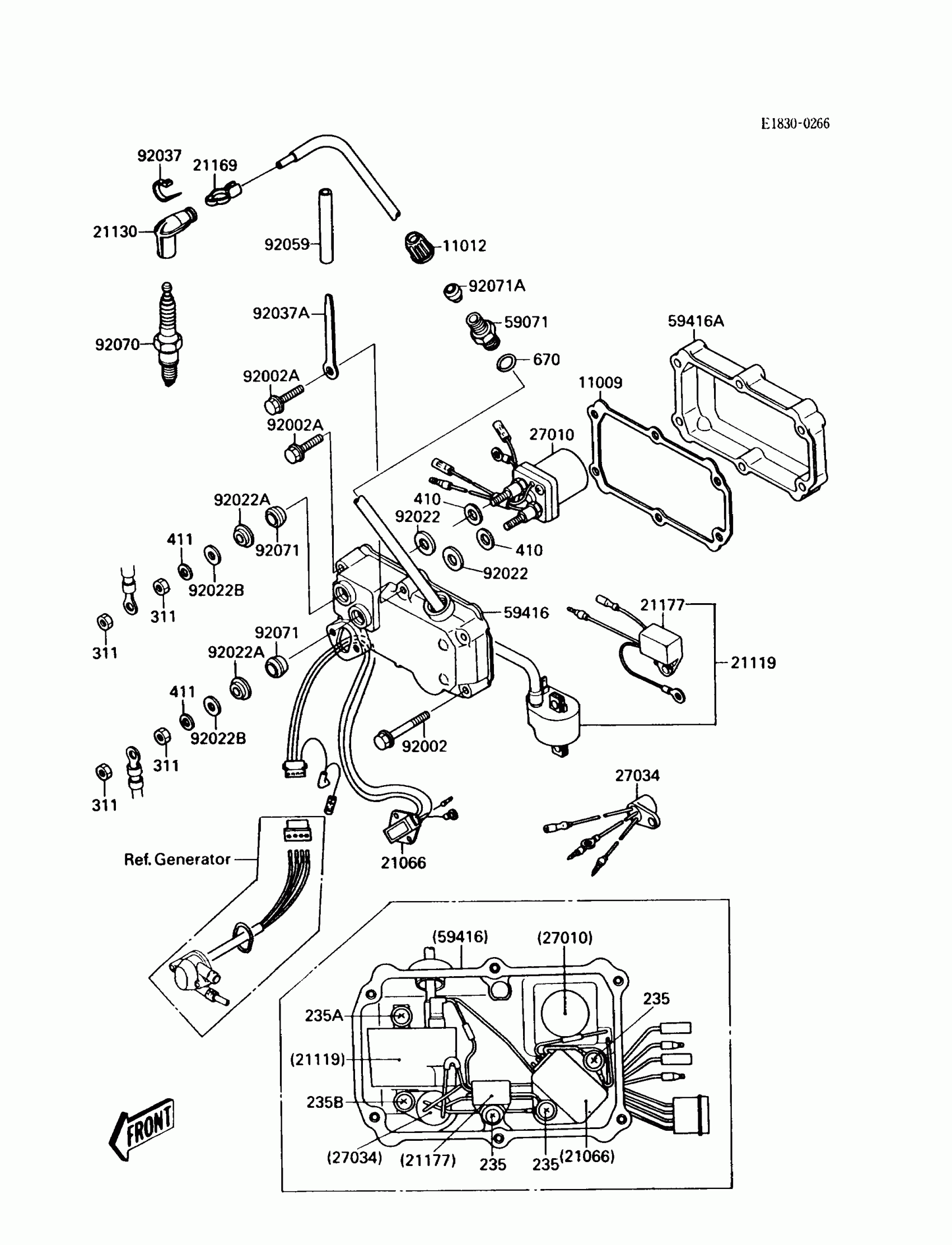

1987 Kawasaki 300 SX Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,ELECTRIC CASE

11009-3711

1
Out of stock

11012

CAP

11012-3005

1

$4.39

In stock

21066

REGULATOR-VOLTAGE

21066-3701

1

$245.55

In stock

21119

IGNITER

21119-3707

1
Out of stock

21130

CAP-SPARK PLUG

21130-1006

1
Out of stock

21169

TERMINAL,PLUG CAP

21169-001

1
Out of stock

21177

CONTROLLER

21177-3701

1

$142.31

In stock

27010

1

$171.64

In stock

27034

RELAY,STOP SWITCH

27034-3002

1
Out of stock

59071

JOINT

59071-3001

1

$4.98

In stock

59416

CASE-ELECTRIC,FR

59416-3702

1

$135.54

In stock

59416A

CASE-ELECTRIC,RR

59416-3703

1

$88.99

In stock

92002

BOLT,6X35

92002-3715

1
Out of stock

92002A

BOLT,6X65

92002-3720

1
Out of stock

92022

WASHER

92022-3035

1
Out of stock

92022A

WASHER

92022-3708

1
Out of stock

92022B

WASHER,6.5X19X2

92022-3709

1
Out of stock

92037

CLAMP

92037-1173

1

$2.92

In stock

92037A

CLAMP,LEAD WIRE

92037-3011

1

$4.85

In stock

92059

TUBE,VINYL,5X73

92059-3017

1
Out of stock

92070

1

$3.66

In stock

92071

GROMMET

92071-3004

1

$3.18

In stock

92071A

GROMMET

92071-527

1

$5.44

In stock

235

1

$3.66

In stock

235A

SCREW-PAN-WP-CROS

235B0620

1
Out of stock

235B

SCREW-PAN-WP-CROS

235B0625

1
Out of stock

311

NUT-HEX,6MM

311R0600

1

$0.75

In stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock

411

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock
