1988 Kawasaki 300 SX Hull Diagram

← All diagrams

Find the part on the Hull diagram for your 1988 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

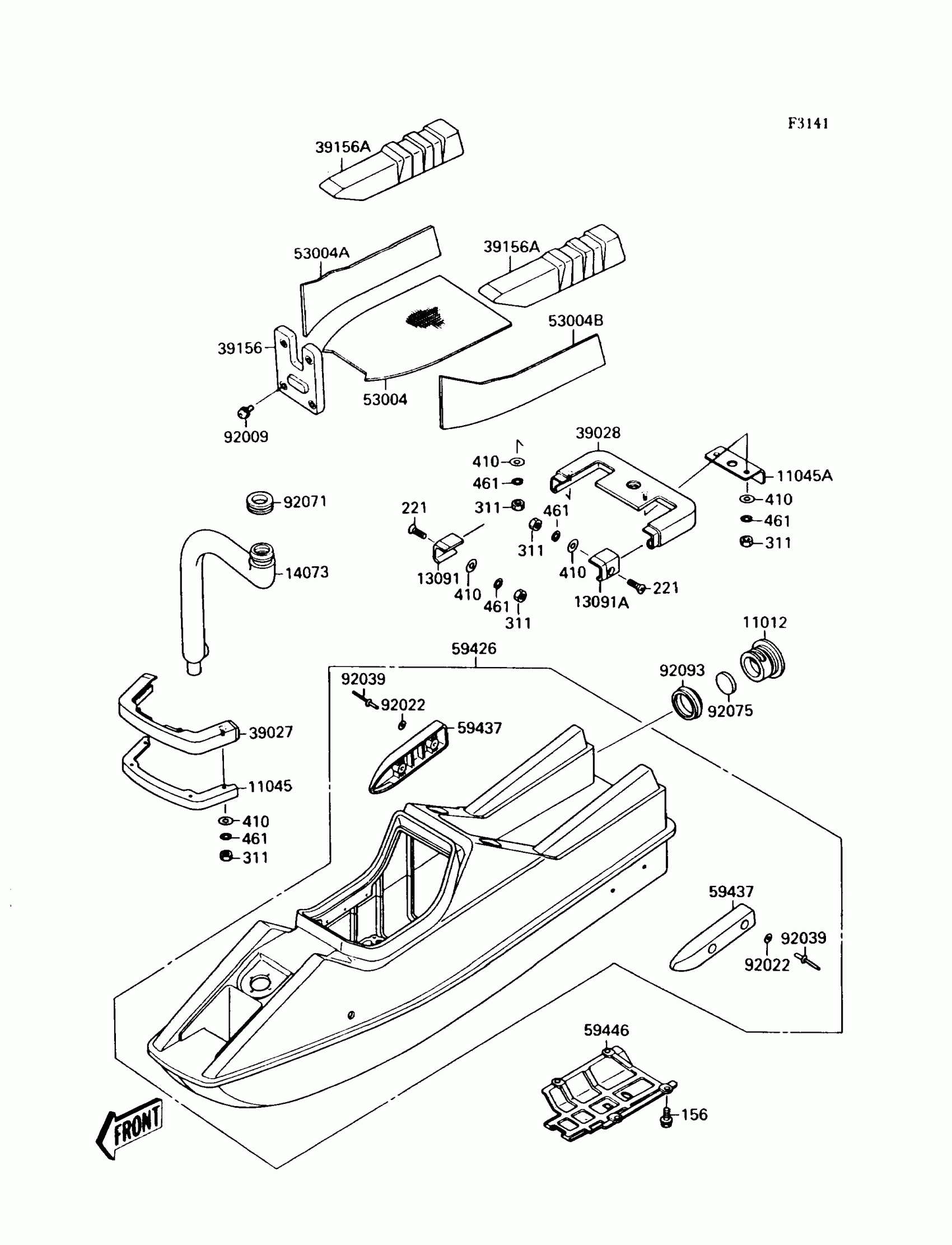

1988 Kawasaki 300 SX Hull Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3708

1
Out of stock

11045

BRACKET,FRONT BUMPER

11045-3707

1
Out of stock

11045A

BRACKET,REAR BUMPER

11045-3708

1
Out of stock

13091

HOLDER,DECK,RH

13091-3719

1
Out of stock

13091A

HOLDER,DECK,LH

13091-3720

1
Out of stock

14073

DUCT

14073-3702

1
Out of stock

39027

BUMPER-FRONT

39027-3701

1

$140.72

In stock

39028

BUMPER-REAR

39028-3701

1

$278.95

In stock

39156

PAD,DASHBOARD

39156-3701

1

$63.69

In stock

39156A

PAD,DECK FIN

39156-3703

1
Out of stock

53004

MAT,FLOOR

53004-3711

1

$177.76

In stock

53004A

MAT,DECK SIDE,RH

53004-3712

1

$95.80

In stock

53004B

MAT,DECK SIDE,LH

53004-3713

1

$95.73

In stock

59426

HULL-COMP,JET WHITE

59426-3713-8C

1

$1,523.59

In stock

59437

STABILIZER

59437-3002

1
Out of stock

59446

COVER-JET PUMP

59446-3702

1

$173.24

In stock

92009

SCREW,6X16

92009-3721

1
Out of stock

92022

WASHER,5X16X1.5

92022-3041

1
Out of stock

92039

RIVET

92039-3002

1

$5.10

In stock

92071

GROMMET

92071-3724

1
Out of stock

92075

DAMPER

92075-3719

1

$7.79

In stock

92093

SEAL,OSR70X82X7.5

92093-3704

1
Out of stock

156

BOLT-WP,6X22

156R0622

1

$3.66

In stock

221

1

$3.92

In stock

311

NUT-HEX,5MM

311R0500

1

$1.44

In stock

410

W-PLAIN-S,5MM

410S0500

1

$1.39

In stock

461

1

$0.54

In stock
