1987 Kawasaki 300 SX Generator Diagram

← All diagrams

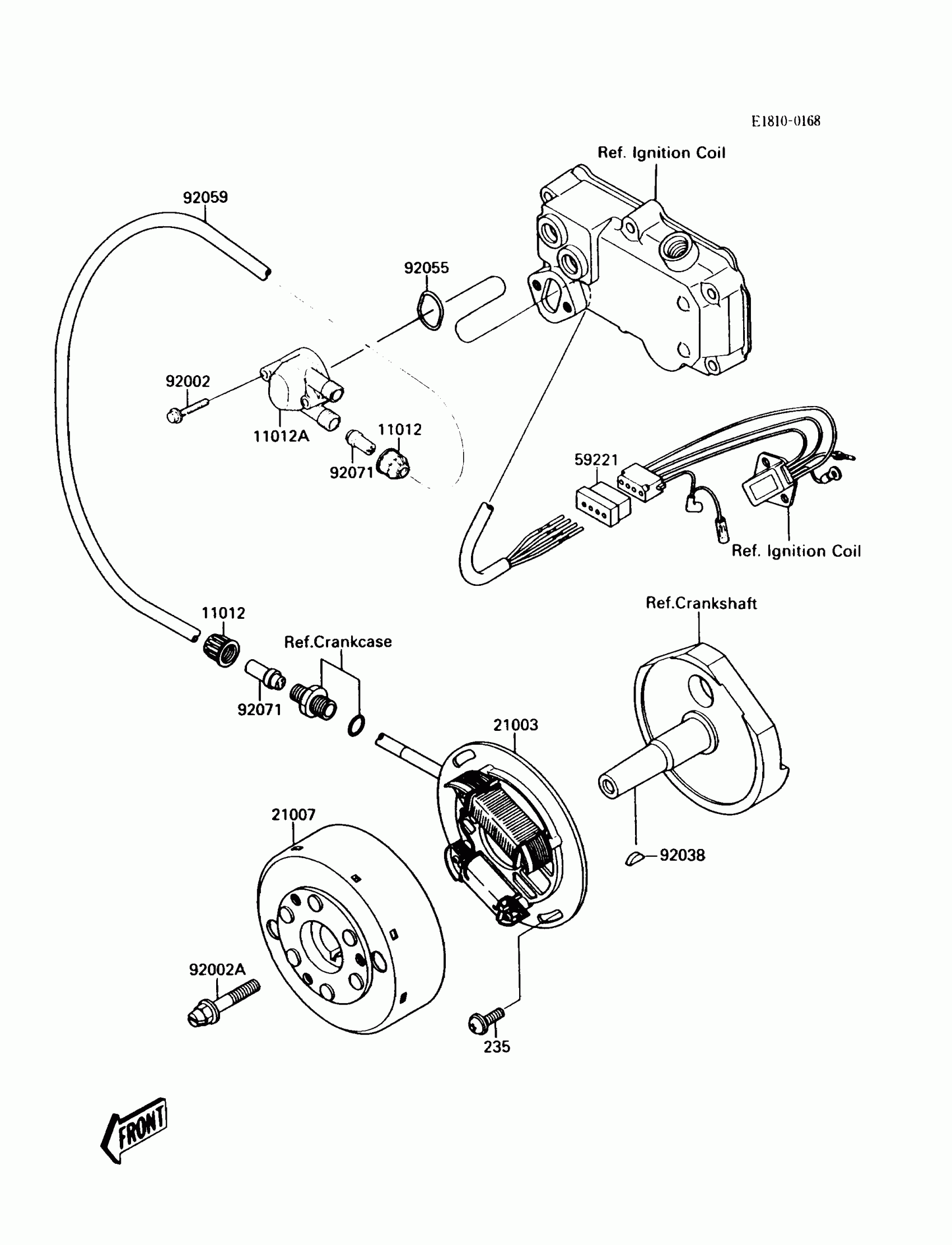

Find the part on the Generator diagram for your 1987 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki 300 SX Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3005

1

$4.39

In stock

11012A

CAP,ELECTRIC CASE

11012-3704

1
Out of stock

21003

STATOR

21003-3704

1
Out of stock

21007

ROTOR

21007-3701

1

$486.97

In stock

59221

CONNECTOR-CORD

59221-3701

1

$11.08

In stock

92002

BOLT,6X35

92002-3715

1
Out of stock

92002A

BOLT

92002-3738

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92055

RING-O

92055-3706

1

$3.70

In stock

92059

TUBE,10X12X630

92059-3717

1

$19.22

In stock

92071

GROMMET

92071-3711

1
Out of stock

235

1

$3.66

In stock
