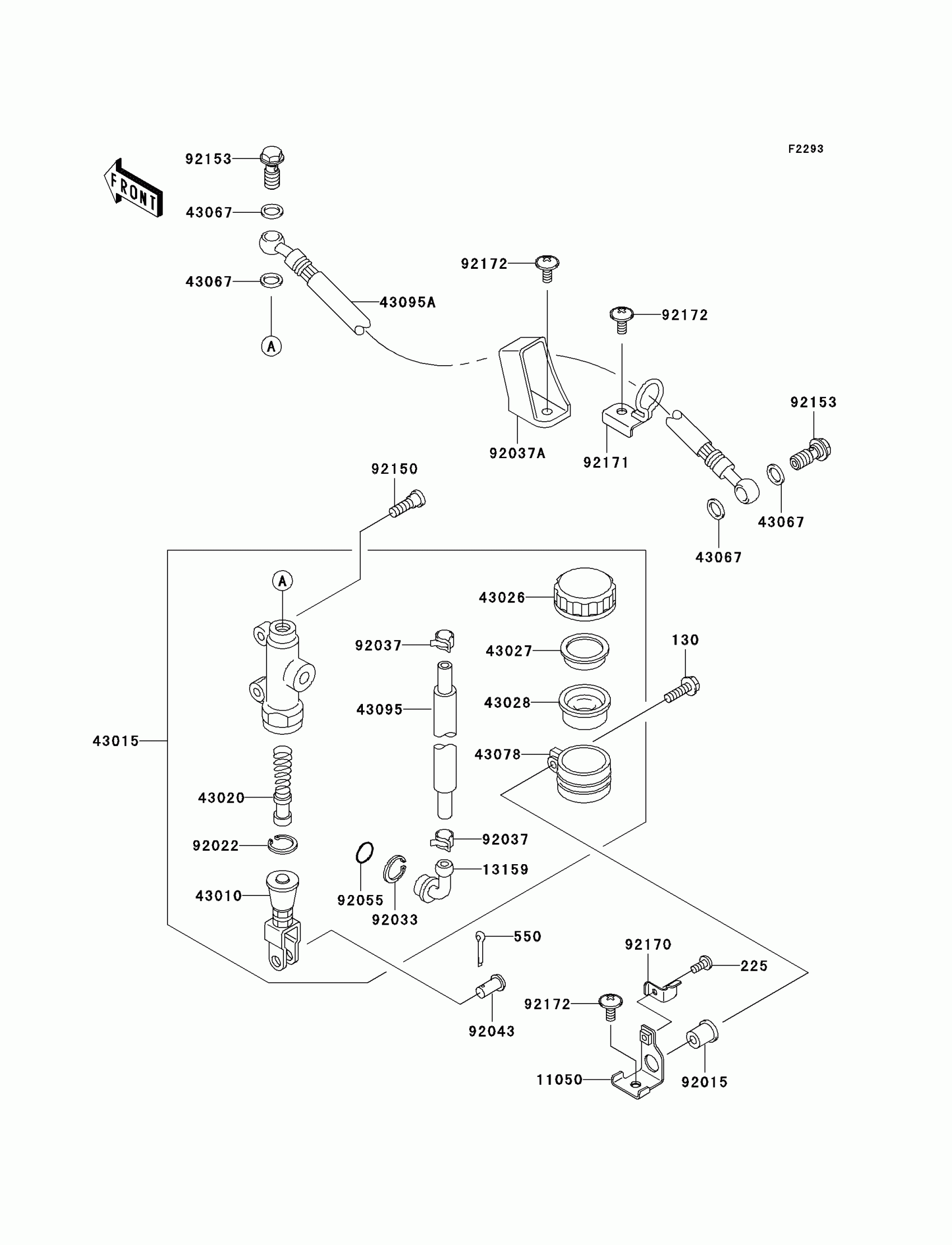

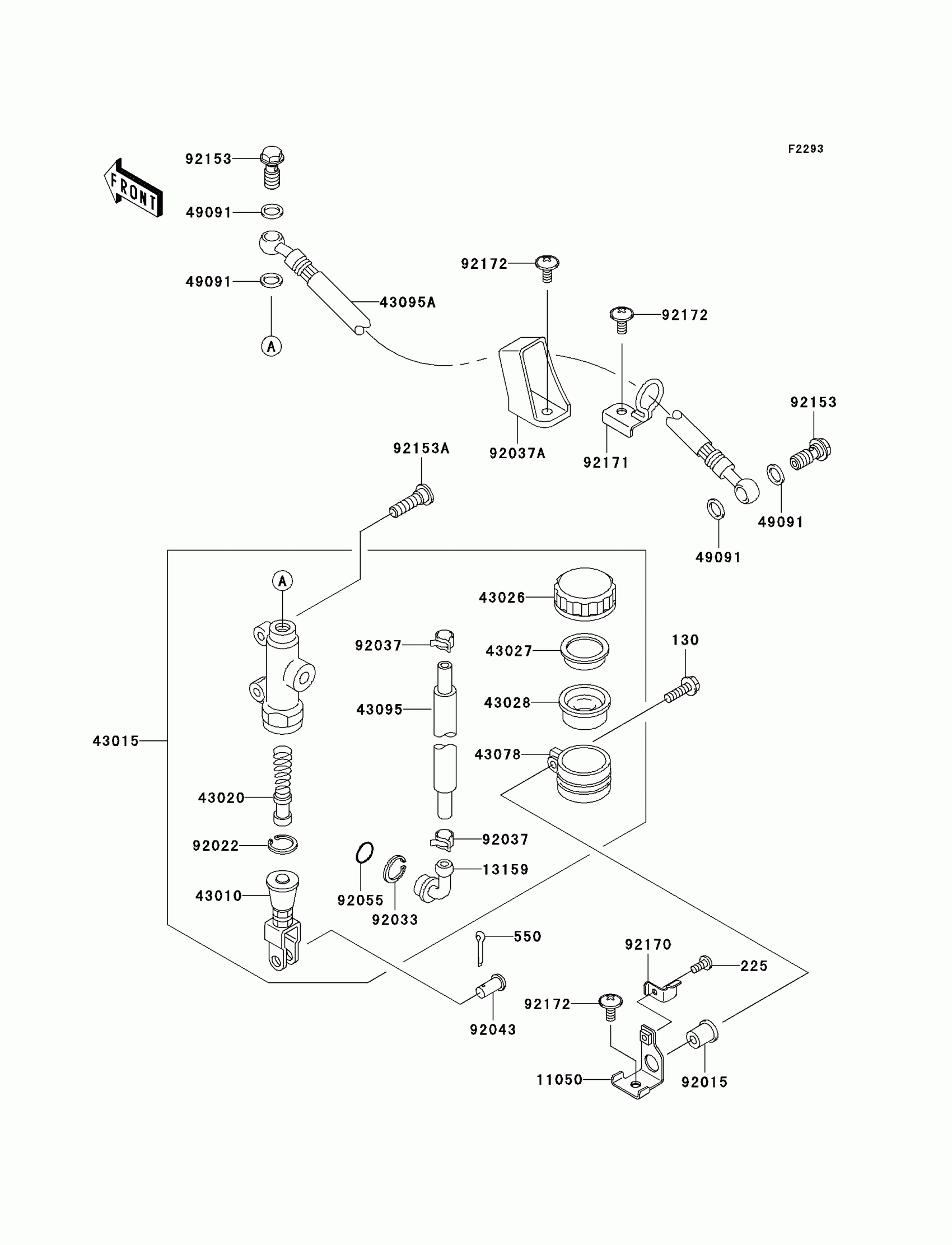

Kawasaki ZZR600 Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130V0620

Unavailable

225

SCREW-PAN-WSP-CROS,4X12

225C0412

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

11050

BRACKET,RESERVE TANK

11050-1768

$11.20

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1081

$62.47

43015

CYLINDER-ASSY-MASTER,RR

43015-1642

$437.36

43020

PISTON-COMP-BRAKE

43020-1120

$76.18

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-1121

$38.77

43095A

HOSE-BRAKE,RR

43095-1377

$84.06

92015

NUT

92015-1700

$6.55

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,SOCKET,8X30

92150-1843

$2.98

92153

BOLT,OIL,L=23

92153-0627

$4.15

92170

CLAMP,RESERVOIR TANK CAP

92170-1879

$4.80

92171

CLAMP,BRAKE HOSE

92171-1244

$15.73

92172

SCREW,6X14

92172-0004

$1.98
