2005 Kawasaki ZZR600 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

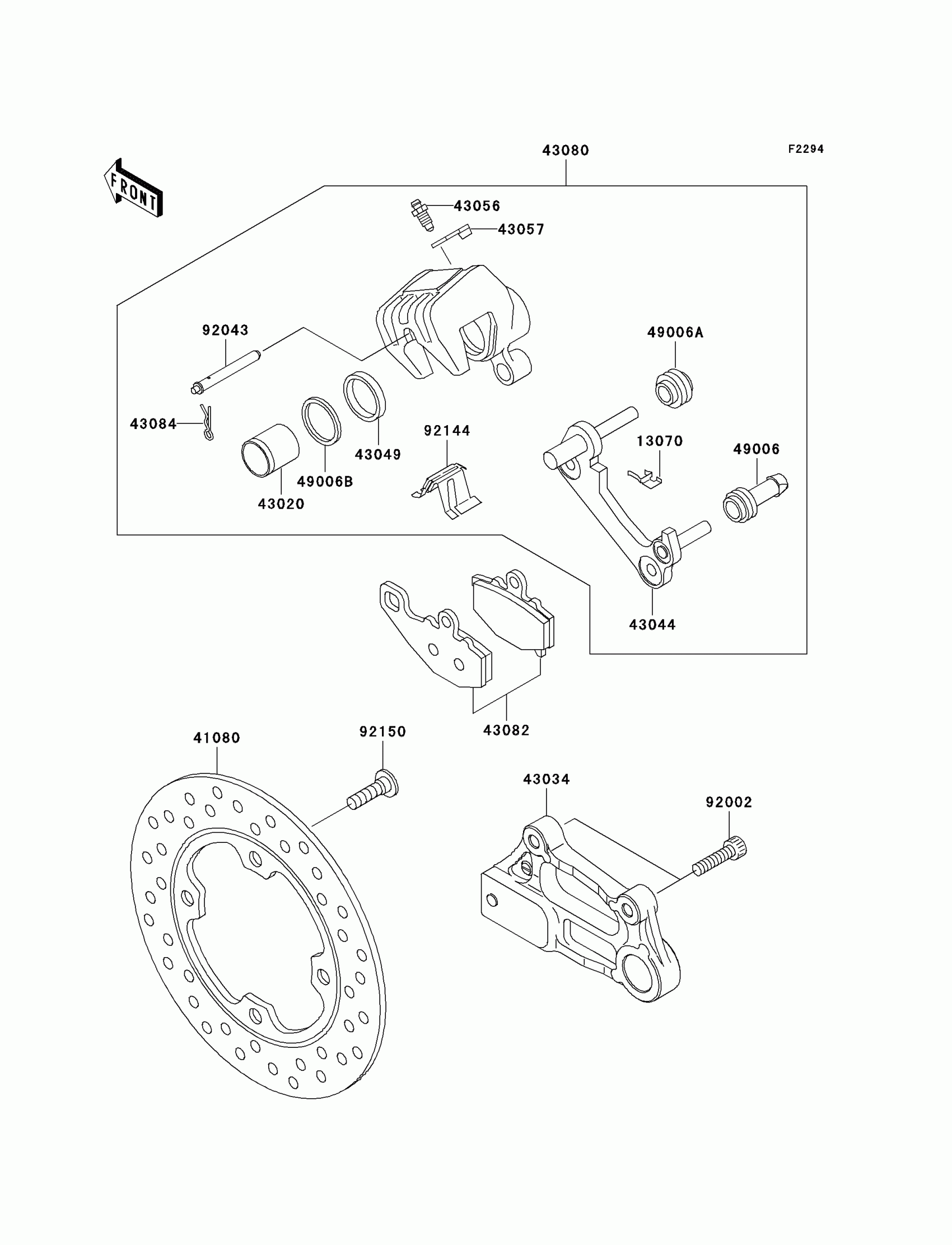

2005 Kawasaki ZZR600 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE PAD

13070-0045

1

$10.25

In stock

41080

DISC,RR

41080-0037

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1119

1

$66.46

In stock

43034

HOLDER-BRAKE,REAR CALIPER

43034-1159

1
Out of stock

43044

1

$147.38

In stock

43049

PACKING,PISTON SEAL

43049-1097

1

$8.76

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$427.90

In stock

43082

PAD-ASSY-BRAKE

43082-1213

1

$63.15

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

49006B

BOOT,PISTON SEAL

49006-1212

1

$21.56

In stock

92002

BOLT,SOCKET,8X20

92002-1178

1

$4.01

In stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92144

SPRING,PAD

92144-1719

1

$37.56

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock
