2005 Kawasaki ZZR600 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

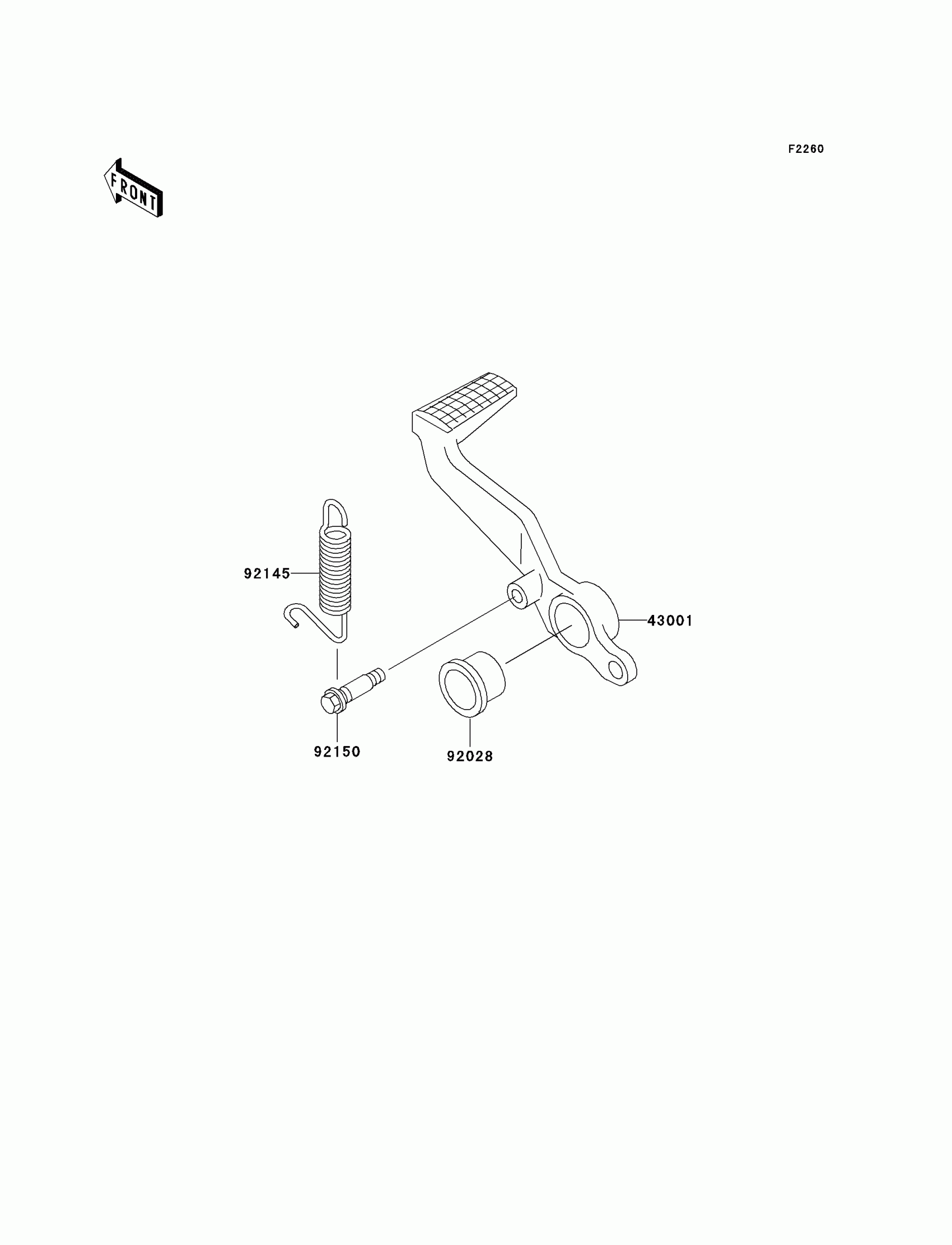

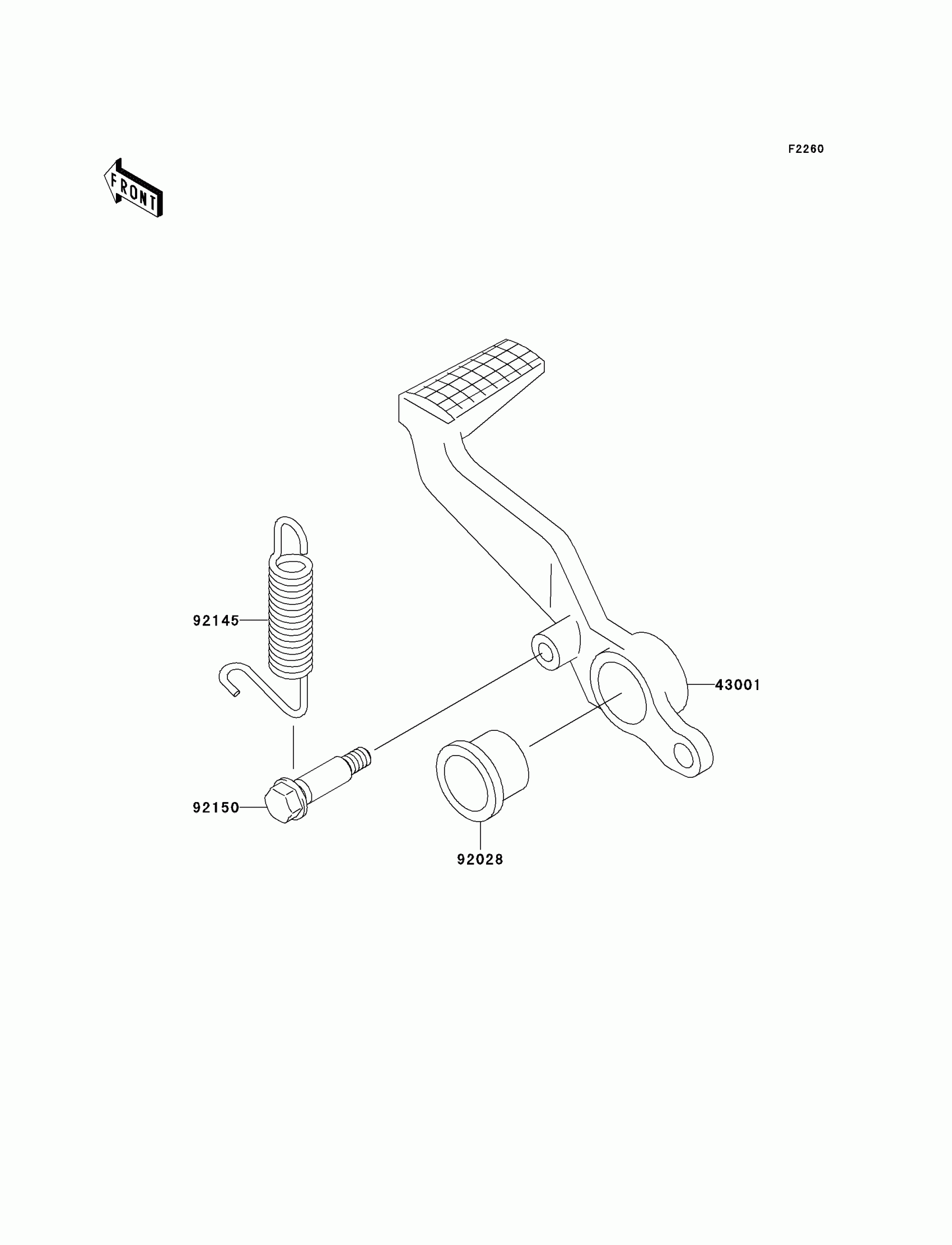

2005 Kawasaki ZZR600 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1393

1
Out of stock

92028

BUSHING

92028-1576

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-1090

1
Out of stock

92150

BOLT

92150-1439

1
Out of stock
