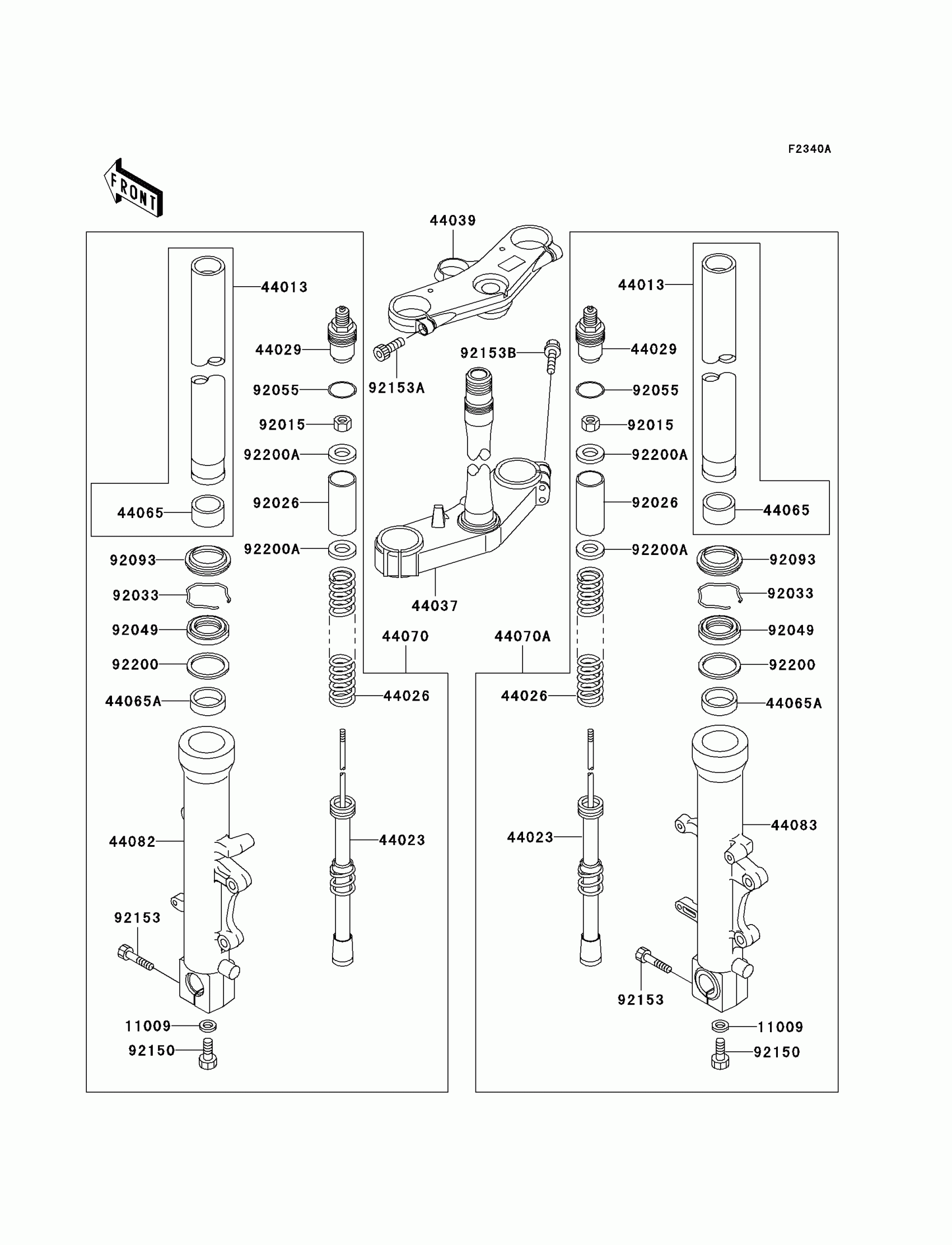

2007 Kawasaki ZZR600 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2007 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki ZZR600 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

44013

PIPE-FORK INNER

44013-1473

1

$431.34

In stock

44023

CYLINDER-SET-FORK

44023-1149

1

$479.90

In stock

44026

SPRING-FRONT FORK

44026-1765

1

$76.71

In stock

44029

SEAT-FORK SPRING

44029-1173

1

$137.11

In stock

44037

HOLDER-FORK UNDER

44037-1438

1

$409.08

In stock

44039

HOLDER-FORK UPPER

44039-1329

1

$304.28

In stock

44065

BUSHING-FRONT FORK

44065-1129

1

$19.72

In stock

44065A

BUSHING-FRONT FORK

44065-1130

1

$19.92

In stock

44070

DAMPER-ASSY,FORK,LH

44070-1962

1

$1,143.69

In stock

44070A

DAMPER-ASSY,FORK,RH

44070-1963

1

$1,143.69

In stock

44082

1

$471.55

In stock

44083

1

$471.55

In stock

92015

NUT

92015-1905

1

$18.34

In stock

92026

SPACER,FORK,L=125

92026-1578

1

$22.31

In stock

92033

RING-SNAP

92033-1264

1

$4.96

In stock

92049

SEAL-OIL

92049-1508

1
Out of stock

92055

RING-O

92055-1140

1

$0.97

In stock

92093

1

$21.23

In stock

92150

BOLT,12X22

92150-1398

1

$8.95

In stock

92153

BOLT,SOCKET,8X40

92153-1178

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-1179

1
Out of stock

92153B

BOLT,FLANGED,8X40

92153-1193

1
Out of stock

92200

WASHER

92200-1006

1
Out of stock

92200A

WASHER

92200-1420

1
Out of stock
