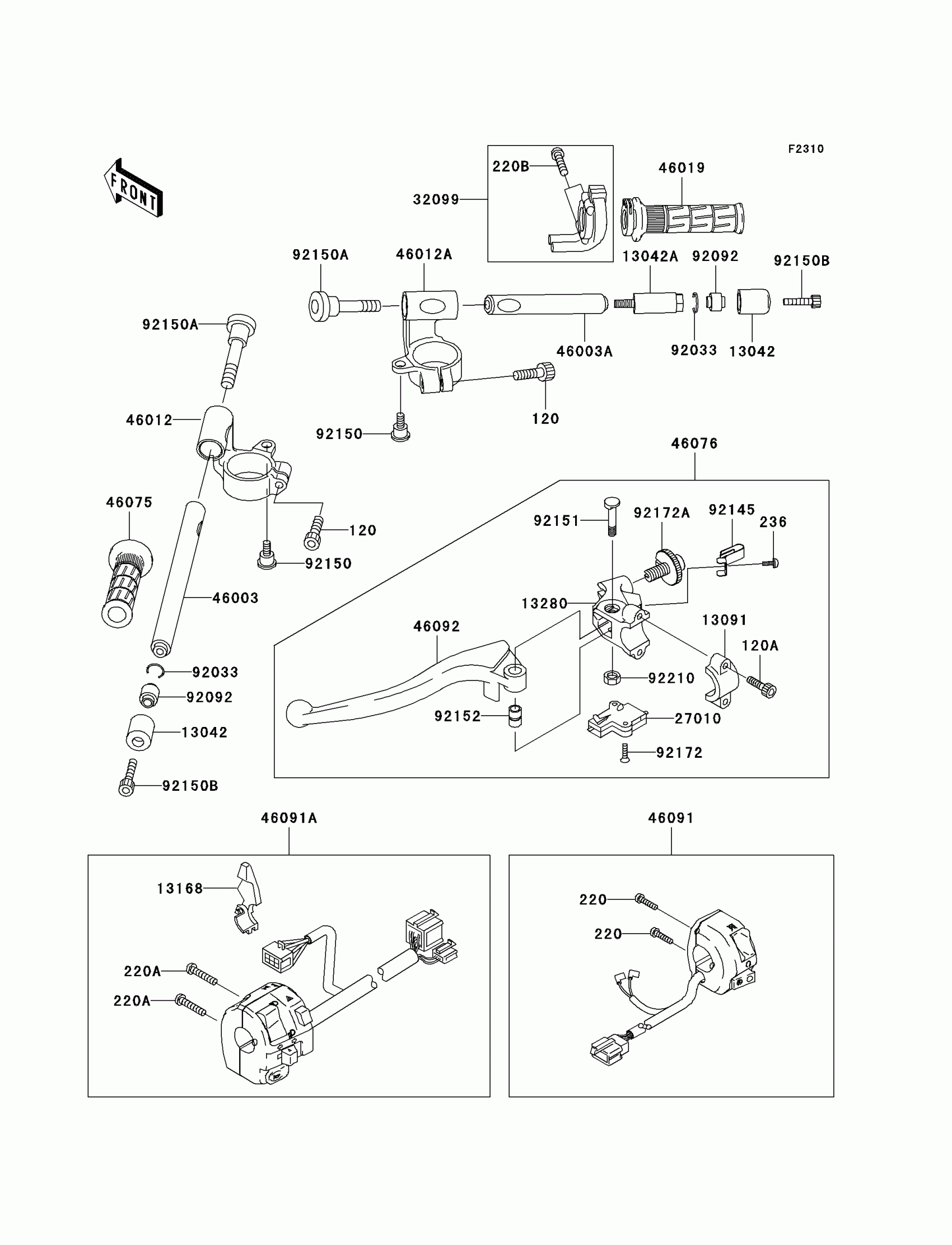

Kawasaki ZZR600 Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,8X30

120P0830

Unavailable

120A

BOLT-SOCKET,6X20

120S0620

Unavailable

220

SCREW-PAN-CROS,5X22

220C0522

$0.89

220A

SCREW-PAN-CROS,5X25

220C0525

$2.66

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

236

SCREW-PAN-WSP-CROS,4X10

236C0410

$1.34

13042

WEIGHT,HANDLE

13042-1133

Unavailable

13042A

WEIGHT,HANDLE

13042-1144

$38.65

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13168

LEVER,CHOKE

13168-1516

$7.46

13280

HOLDER,CLUTCH LEVER

13280-1160

$48.11

27010

SWITCH,CLUTCH

27010-1447

$37.39

32099

CASE,THROTTLE CABLE

32099-1193

$43.92

46003

HANDLE,LH

46003-1523

$139.53

46003A

HANDLE,RH

46003-1553

$139.39

46012

HOLDER-HANDLE,LH

46012-1298

$132.25

46012A

HOLDER-HANDLE,RH

46012-1299

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1095

$55.22

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1248

Unavailable

46091

HOUSING-ASSY-CONTROL,RH

46091-1823

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1857

$229.43

46092

LEVER-GRIP,CLUTCH

46092-0003

$17.53

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92092

BUSHING-RUBBER,HANDLE

92092-1075

$9.53

92145

SPRING

92145-1286

$5.19

92150

BOLT,6MM

92150-1090

$5.69

92150A

BOLT,SOCKET,10X37

92150-1469

$5.91

92150B

BOLT,SOCKET,8X30

92150-1604

$4.37

92151

BOLT

92151-1523

$5.69

92152

COLLAR

92152-0103

$14.34

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW,ADJUST NUT

92172-1060

$39.89

92210

NUT,LOCK,6MM

92210-0006

$1.76
