2004 Kawasaki ZZR600 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2004 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

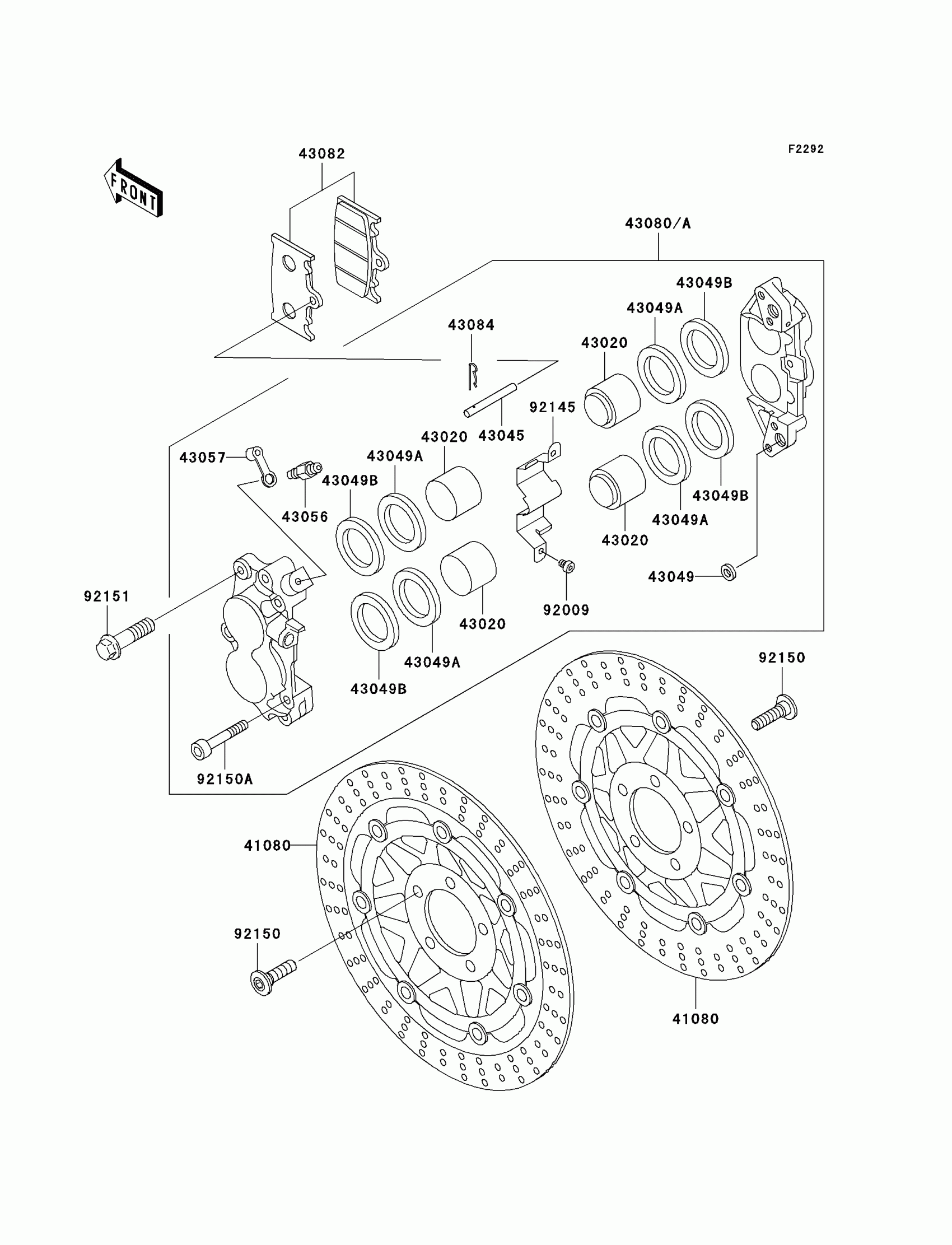

2004 Kawasaki ZZR600 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,GRAY+SILVER

41080-1436-5C

1

$430.10

In stock

43020

PISTON-COMP-BRAKE

43020-1089

1

$69.61

In stock

43045

SHAFT-CALIPER

43045-007

1

$5.15

In stock

43049

1

$4.88

In stock

43049A

PACKING

43049-1068

1

$7.79

In stock

43049B

PACKING,PISTON SEAL

43049-1092

1

$8.25

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$428.82

In stock

43080A

1

$428.82

In stock

43082

PAD-ASSY-BRAKE

43082-1142

1

$65.15

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

92009

BOLT,SOCKET,4X6

92009-1758

1
Out of stock

92145

SPRING,COVER

92145-1263

1

$31.44

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92150A

BOLT,SOCKET,8X40

92150-1973

1

$5.37

In stock

92151

BOLT,FLANGED,10X38

92151-1288

1

$4.24

In stock
