2005 Kawasaki ZZR600 (Canada Only) Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

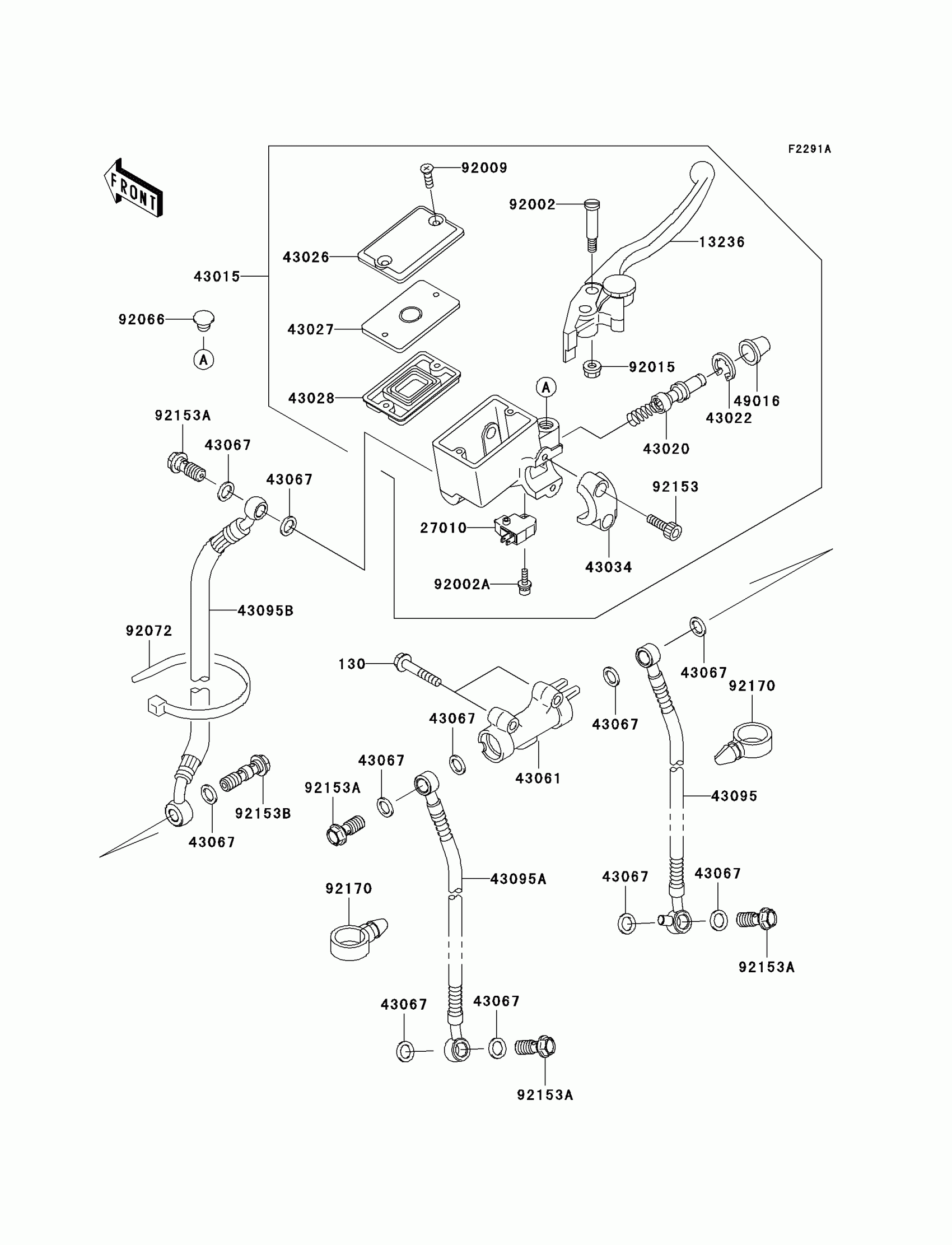

2005 Kawasaki ZZR600 (Canada Only) Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

13236-1337

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1

$33.39

In stock

43015

1

$463.79

In stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1076

1

$43.44

In stock

43027

PLATE-DIAPHRAGM

43027-1055

1

$7.68

In stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43061

JOINT-BRAKE

43061-1002

1

$73.52

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

43095

HOSE-BRAKE,FR

43095-0056

1
Out of stock

43095A

HOSE-BRAKE,FR

43095-1379

1

$85.70

In stock

43095B

HOSE-BRAKE,FR

43095-1381

1
Out of stock

49016

1

$6.90

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92066

1

$3.69

In stock

92072

BAND,L=250

92072-1237

1

$1.80

In stock

92153

BOLT,SOCKET,6X20

92153-0417

1
Out of stock

130

BOLT-FLANGED,6X35

130L0635

1
Out of stock

92153A

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153B

BOLT,OIL,L=37

92153-0628

1
Out of stock

92170

CLAMP

92170-1067

1

$5.93

In stock
