2005 Kawasaki ZZR600 (Canada Only) Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

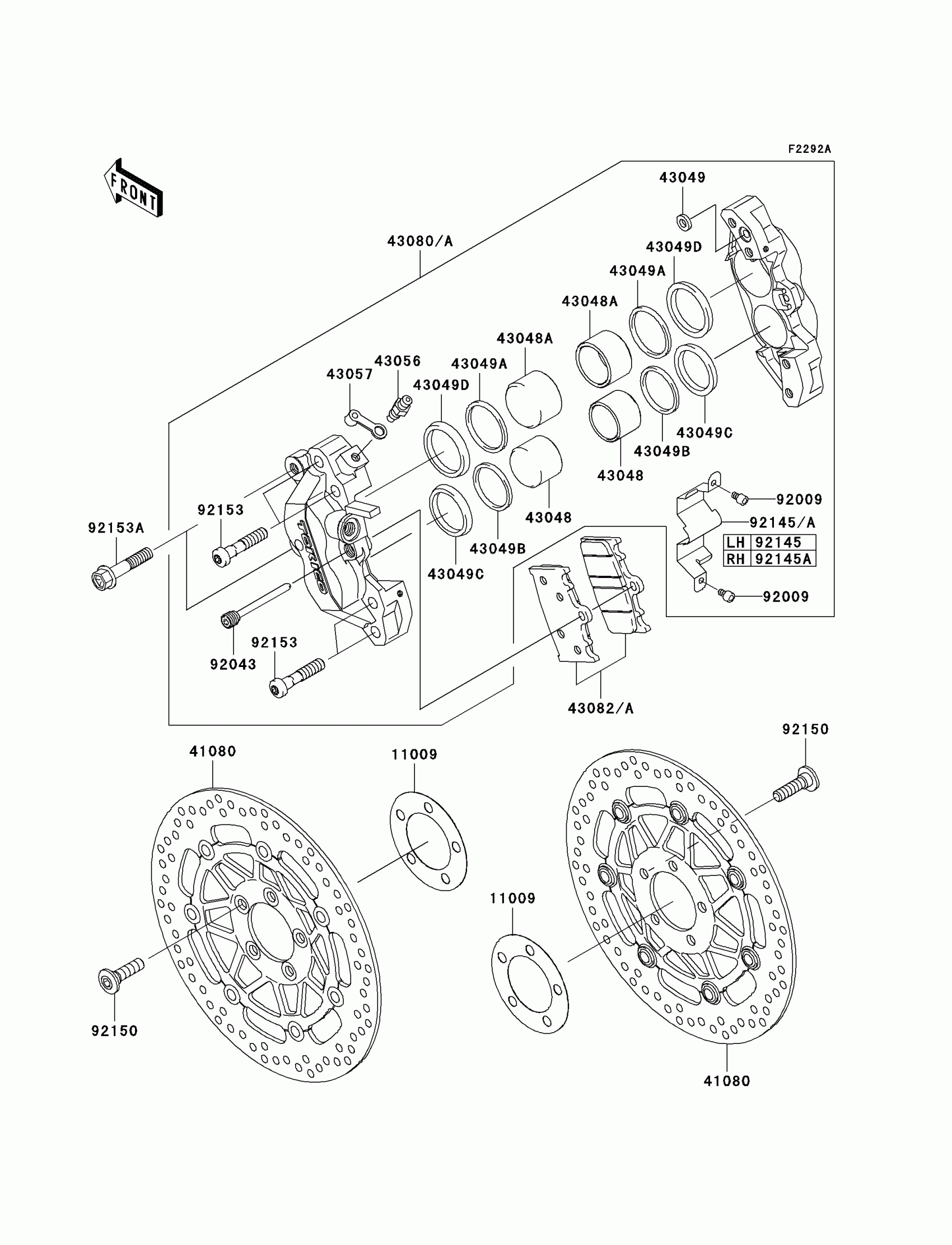

2005 Kawasaki ZZR600 (Canada Only) Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,DISC PLATE

11009-1754

1

$17.92

In stock

41080

DISC,FR,GRAY+DISC-SILVER

41080-0043-S1

1
Out of stock

43048

1

$33.98

In stock

43048A

1

$42.35

In stock

43049

1

$4.88

In stock

43049A

PACKING,PISTON

43049-1057

1

$10.02

In stock

43049B

PACKING

43049-1068

1

$7.79

In stock

43049C

PACKING,PISTON SEAL

43049-1092

1

$8.25

In stock

43049D

PACKING,PISTON SEAL

43049-1095

1

$10.38

In stock

43056

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$415.71

In stock

43080A

1

$435.69

In stock

43082A

PAD-ASSY-BRAKE

43082-0025

1
Out of stock

92009

BOLT,SOCKET,4X6

92009-1758

1
Out of stock

92043

PIN,PAD

92043-1683

1

$3.75

In stock

92145

SPRING,COVER,LH

92145-1503

1

$28.82

In stock

92145A

SPRING,COVER,RH

92145-1504

1

$28.82

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92153

BOLT,SOCKET,8X40

92153-0360

1
Out of stock

92153A

BOLT,FLANGED,8X40

92153-0482

1
Out of stock
