2005 Kawasaki ZZR600 (Canada Only) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

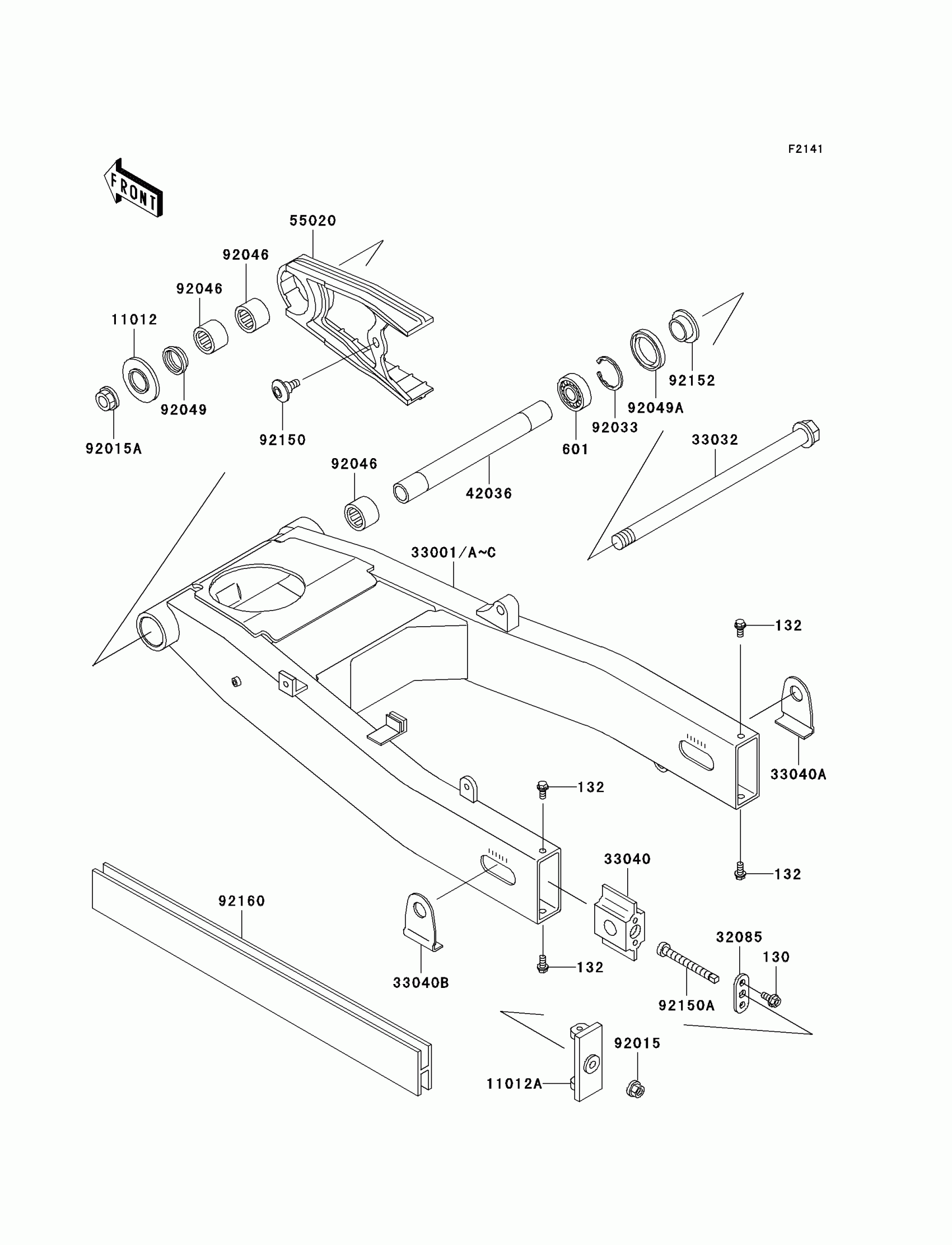

2005 Kawasaki ZZR600 (Canada Only) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130H0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

601

1

$9.42

In stock

11012

CAP

11012-1658

1
Out of stock

11012A

CAP,CHAIN ADJUSTER

11012-1704

1

$37.15

In stock

32085

1

$5.37

In stock

33001

ARM-COMP-SWING,SILVER

33001-0033-TX

1
Out of stock

33032

SHAFT-SWING ARM

33032-1165

1

$86.23

In stock

33040

1

$50.78

In stock

33040A

1

$8.64

In stock

33040B

1

$8.64

In stock

42036

1

$95.06

In stock

55020

GUARD,CHAIN

55020-1524

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1154

1

$6.24

In stock

92150A

BOLT,CHAIN ADJUSTER

92150-1285

1

$7.18

In stock

92152

1

$7.13

In stock

92160

DAMPER,SWING ARM

92160-1174

1

$92.86

In stock
