2005 Kawasaki ZZR600 (Canada Only) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2005 Kawasaki ZZR600 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

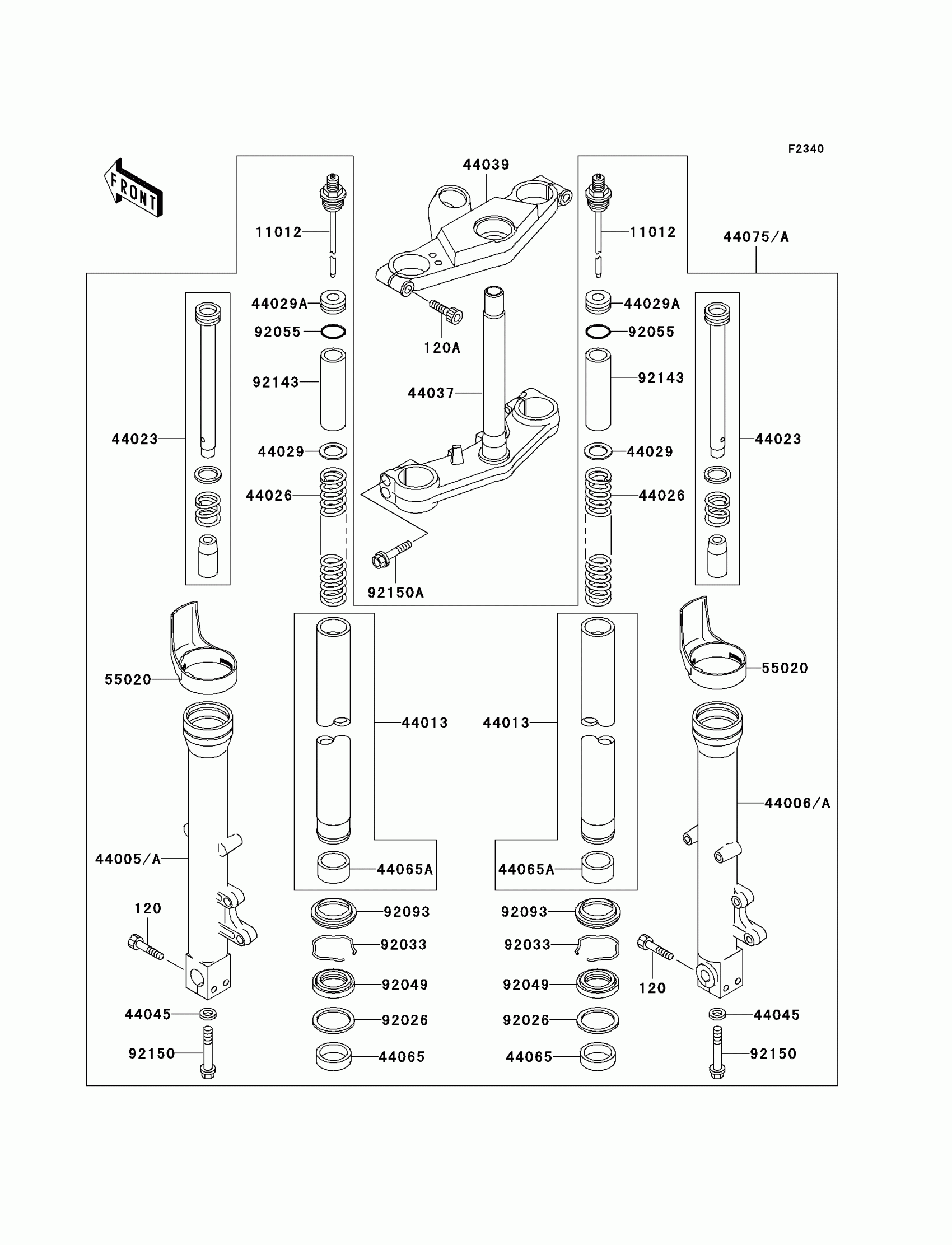

2005 Kawasaki ZZR600 (Canada Only) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X40

120P0840

1
Out of stock

120A

BOLT-SOCKET,8X40

120S0840

1
Out of stock

11012

CAP,FORK BOLT

11012-1928

1

$14.76

In stock

44005

PIPE-LEFT FORK OUTER,G.GRAY

44005-0023-GD

1
Out of stock

44006

PIPE-RIGHT FORK OUTER,G.GRAY

44006-0023-GD

1
Out of stock

44013

PIPE-FORK INNER

44013-1409

1

$358.10

In stock

44023

CYLINDER-COMP-FORK

44023-1096

1

$172.80

In stock

44026

SPRING-FRONT FORK

44026-1583

1

$74.31

In stock

44029

SEAT-FORK SPRING

44029-1131

1

$10.00

In stock

44029A

SEAT-FORK SPRING

44029-1158

1

$24.97

In stock

44037

HOLDER-FORK UNDER

44037-1311

1

$395.50

In stock

44039

HOLDER-FORK UPPER,C.GRAY

44039-1251-EZ

1

$296.67

In stock

44045

1

$4.88

In stock

44065

BUSHING-FRONT FORK

44065-1079

1

$22.97

In stock

44065A

1

$27.24

In stock

44075

DAMPER-SET-FORK,G.GRAY

44075-0038-GD

1
Out of stock

55020

GUARD,FORK

55020-1645

1

$11.17

In stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL,FORK

92049-1363

1
Out of stock

92055

RING-O,FORK TOP

92055-1420

1

$4.37

In stock

92093

SEAL,FORK

92093-1268

1

$23.35

In stock

92143

COLLAR,FORK,L=100

92143-1758

1

$20.73

In stock

92150

BOLT,SOCKET,8X18

92150-1432

1

$7.86

In stock

92150A

BOLT,SOCKET,8MM

92150-1613

1

$4.24

In stock
