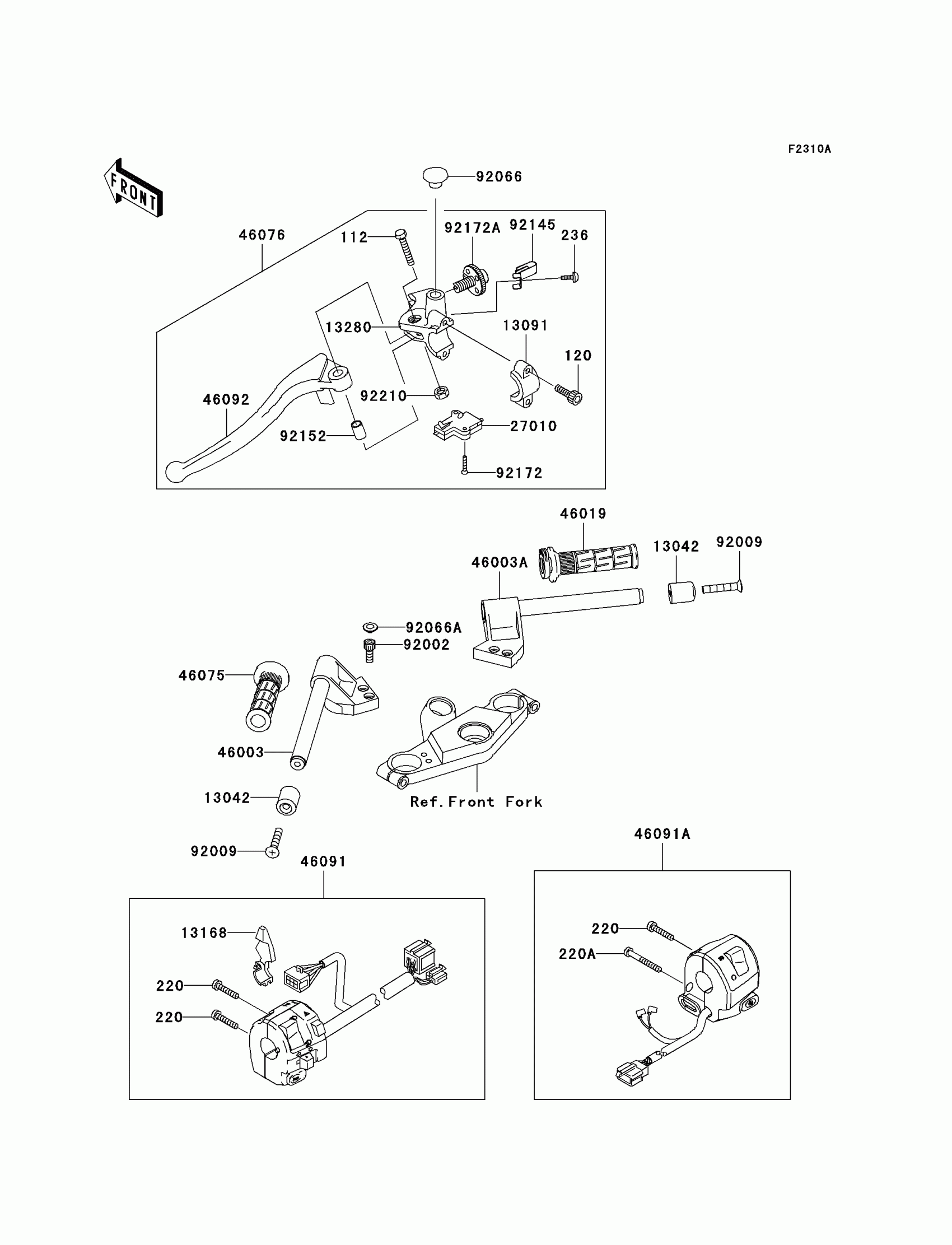

Kawasaki ZZR600 (Canada Only) Handlebar(E12/E13) Diagram

Description

Price

13042

WEIGHT,HANDLE

13042-1069

$31.64

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13168

LEVER,CHOKE

13168-1516

$7.46

13280

HOLDER,CLUTCH LEVER

13280-0017

$52.43

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003

HANDLE,LH,C.GRAY

46003-0042-EZ

Unavailable

46003A

HANDLE,RH,C.GRAY

46003-1416-EZ

$152.39

46019

GRIP-ASSY,THROTTLE

46019-1124

Unavailable

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0005

$111.28

46091

HOUSING-ASSY-CONTROL,LH

46091-0008

$219.53

46091A

HOUSING-ASSY-CONTROL,RH

46091-1672

$157.71

46092

LEVER-GRIP,CLUTCH

46092-0003

$17.53

92002

BOLT,SOCKET,8X20

92002-1178

$3.85

92009

SCREW,8X45

92009-1257

$3.57

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92066A

PLUG

92066-1277

$5.09

92145

SPRING

92145-1286

$5.19

92152

COLLAR

92152-0103

$14.34

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW,ADJUST NUT

92172-1060

$39.89

92210

NUT,LOCK,6MM

92210-0006

$1.76

112

BOLT-UPSET,6X30

112J0630

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X40

220C0540

Unavailable

236

SCREW-PAN-WSP-CROS,4X10

236C0410

$1.34
