2003 Kawasaki ZRX1200R Rear Brake Diagram

← All diagrams

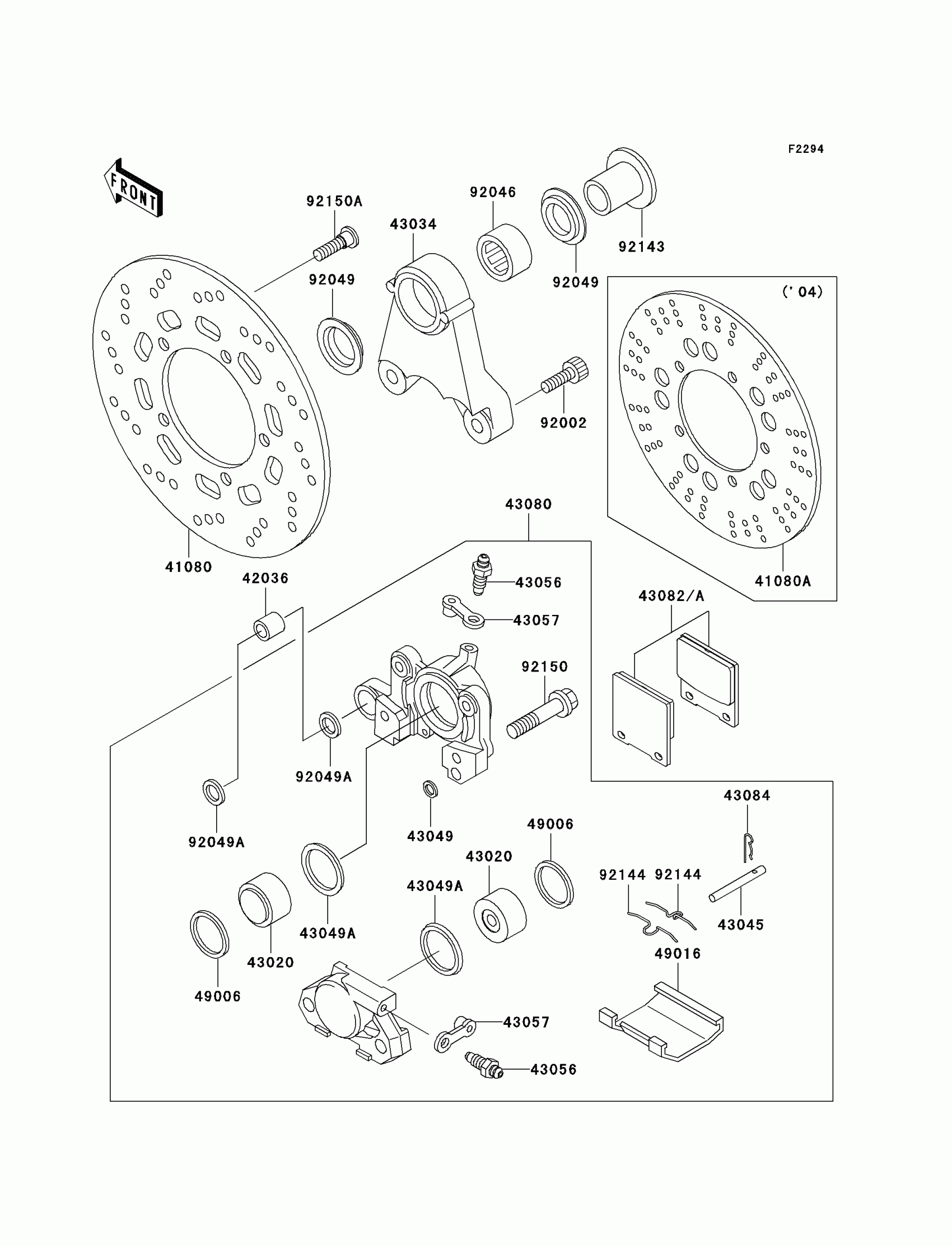

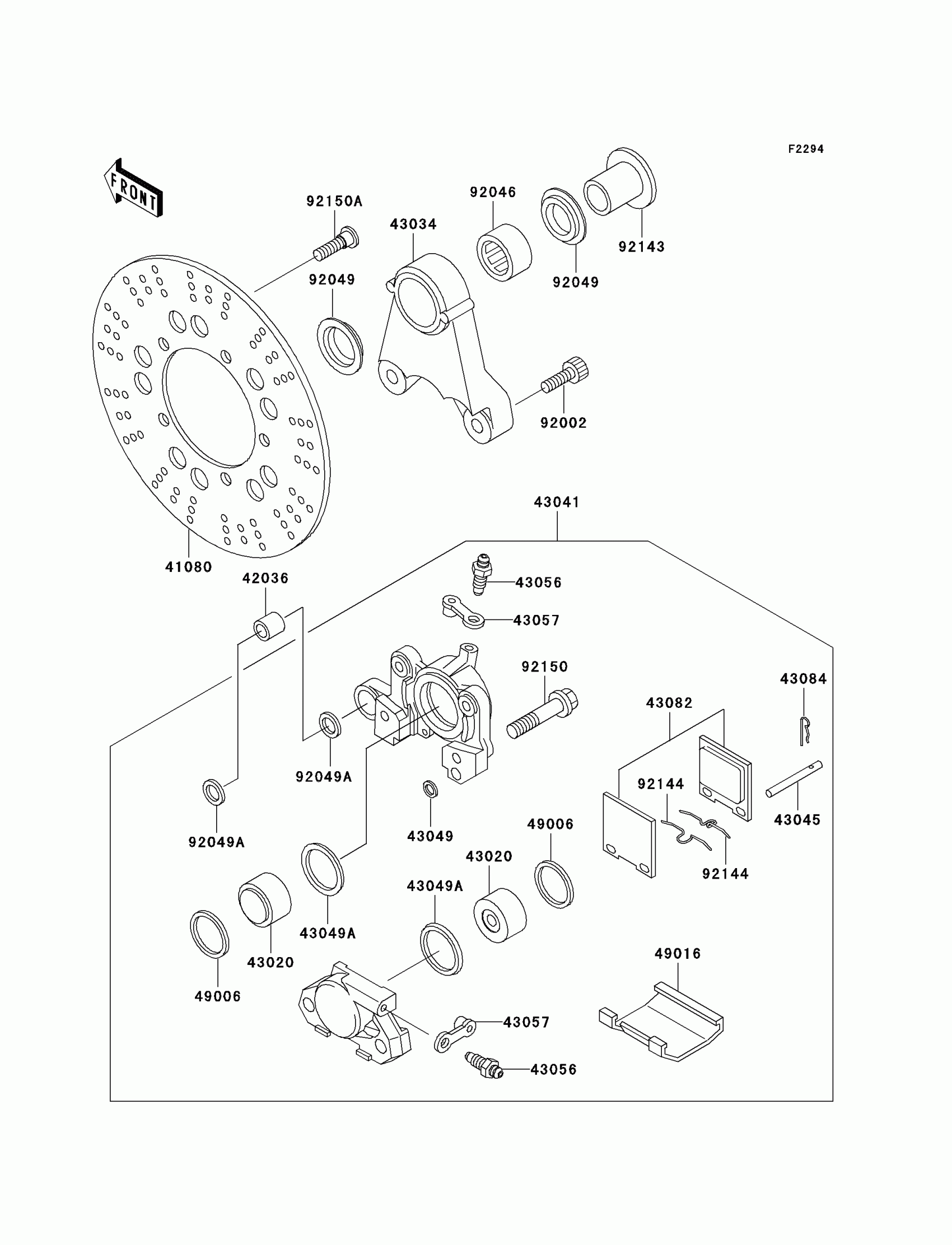

Find the part on the Rear Brake diagram for your 2003 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki ZRX1200R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR,GOLD

41080-1422-CL

1
Out of stock

42036

SLEEVE,8.1X14X17.6

42036-1260

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1107

1
Out of stock

43034

HOLDER-BRAKE,REAR CALIPER,GRAY

43034-1124-FS

1
Out of stock

43041

CALIPER-ASSY,RR,GOLD

43041-1833-8Q

1
Out of stock

43045

SHAFT-CALIPER

43045-007

1
Out of stock

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1097

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1257

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,PISTON SEAL

49006-1212

1
Out of stock

49016

COVER-SEAL

49016-1145

1
Out of stock

92002

BOLT,SOCKET,8X25

92002-1442

1
Out of stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL

92049-1339

1
Out of stock

92143

COLLAR,L=35

92143-1043

1
Out of stock

92144

SPRING,PAD

92144-1401

1
Out of stock

92150

BOLT,FLANGED,10X45

92150-1273

1
Out of stock

92150A

BOLT,SOCKET,8X30

92150-1771

1
Out of stock
