Description

Price

11009

GASKET,DISC PLATE

11009-1754

$17.92

41080

DISC,FR,GOLD+SILVER

41080-1461-A4

$606.98

43041

CALIPER-ASSY,FR,LH,GOLD

43041-1830-8Q

Unavailable

43041A

CALIPER-ASSY,FR,RH,GOLD

43041-1831-8Q

Unavailable

43045

SHAFT-CALIPER

43045-007

$5.15

43048

PISTON-CALIPER,DIA=26.97

43048-1078

$67.29

43048A

PISTON-CALIPER

43048-1079

$75.14

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.88

43049A

PACKING,PISTON

43049-1055

$8.95

43049B

PACKING,PISTON

43049-1059

$6.75

43049C

PACKING,PISTON SEAL

43049-1090

$4.84

43049D

PACKING,PISTON SEAL

43049-1096

$9.84

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1272

$76.57

43084

CLAMP,PAD

43084-003

$3.43

92009

BOLT,SOCKET,4X6

92009-1758

$2.27

92144

SPRING

92144-1903

$14.65

92150

BOLT,FLANGED,10X38

92150-1297

$5.76

92150A

BOLT,SOCKET,8X30

92150-1771

$3.72

92150B

BOLT,SOCKET,8X40

92150-1973

$5.37

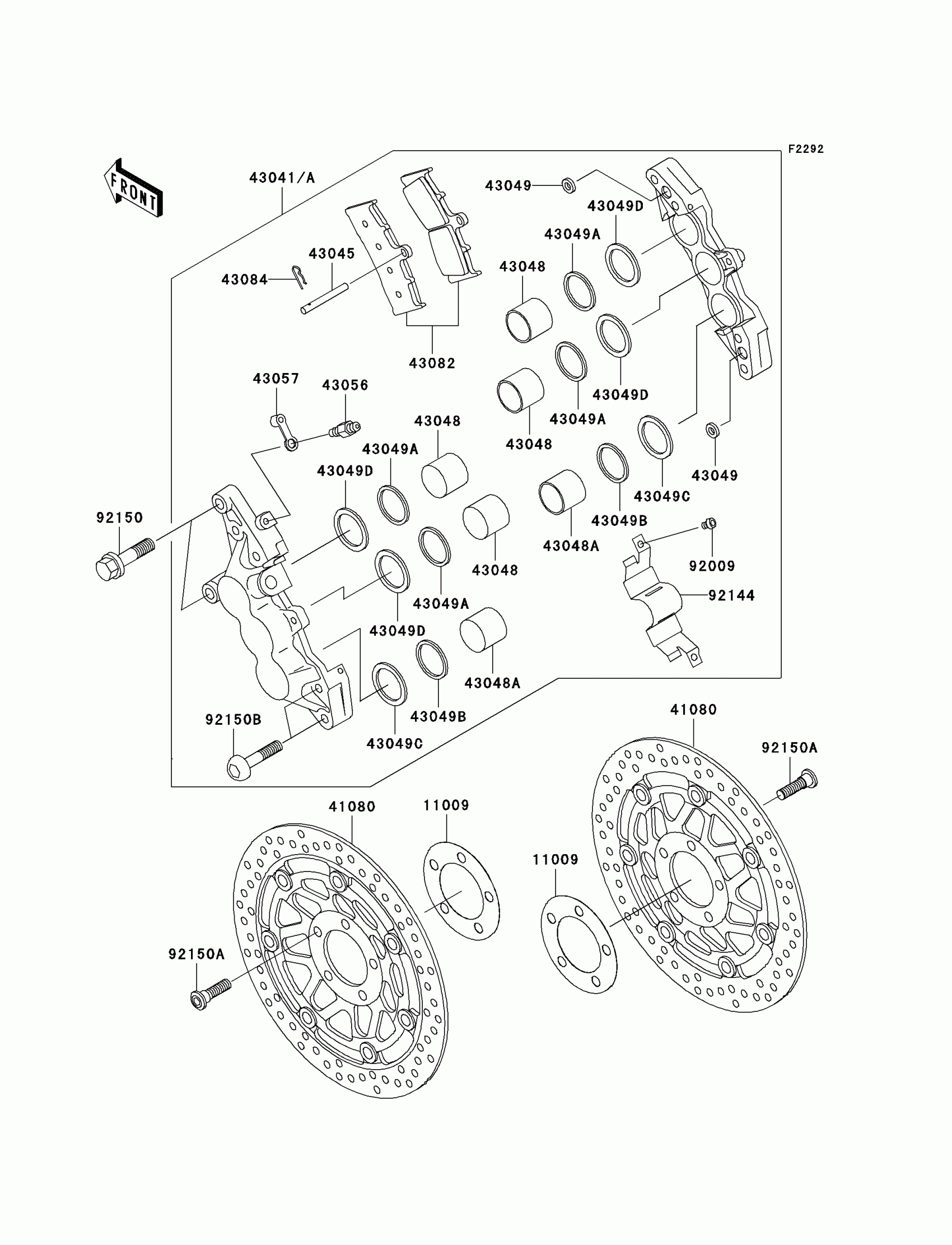

Kawasaki ZRX1200R Front Brake Diagram

CALIPER-ASSY,FR,LH,GOLD

CALIPER-ASSY,FR,RH,GOLD
