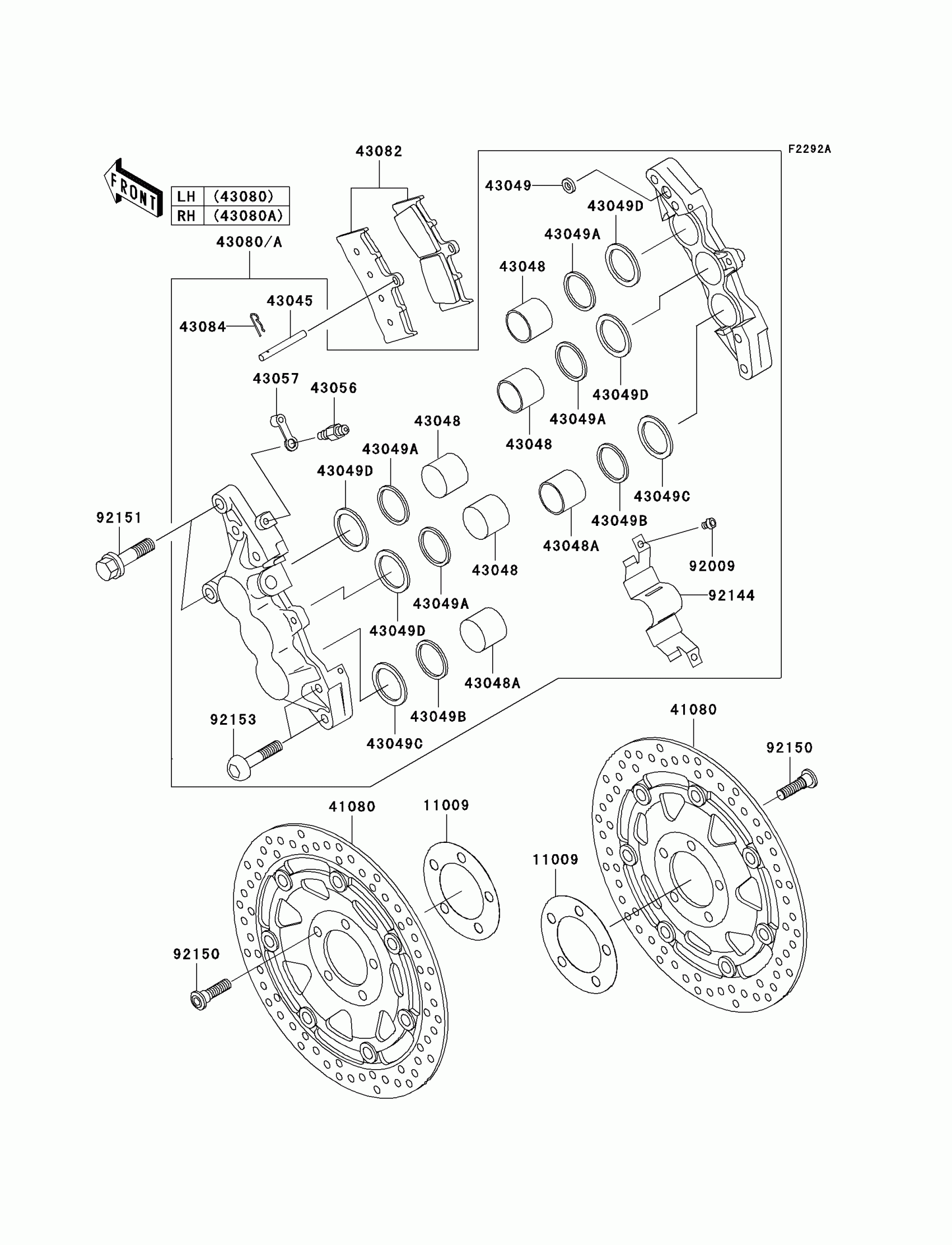

Find the part on the Front Brake diagram for your 2005 Kawasaki ZRX1200R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZRX1200R Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,DISC PLATE

11009-1754

1
Out of stock

41080

DISC,FR,HOUSING GOLD+DISC SIL

41080-0066-488

1
Out of stock

43045

SHAFT-CALIPER

43045-007

1
Out of stock

43048

PISTON-CALIPER,DIA=26.97

43048-1078

1
Out of stock

43048A

PISTON-CALIPER

43048-1079

1
Out of stock

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

1
Out of stock

43049A

PACKING,PISTON

43049-1055

1
Out of stock

43049B

PACKING,PISTON

43049-1059

1
Out of stock

43049C

PACKING,PISTON SEAL

43049-1090

1
Out of stock

43049D

PACKING,PISTON SEAL

43049-1096

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0024-DJ

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0025-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1272

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

92009

BOLT,SOCKET,4X6

92009-1758

1
Out of stock

92144

SPRING

92144-1903

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92151

BOLT,FLANGED,10X38

92151-1288

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0360

1
Out of stock
