2000 Kawasaki ZRX1100 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

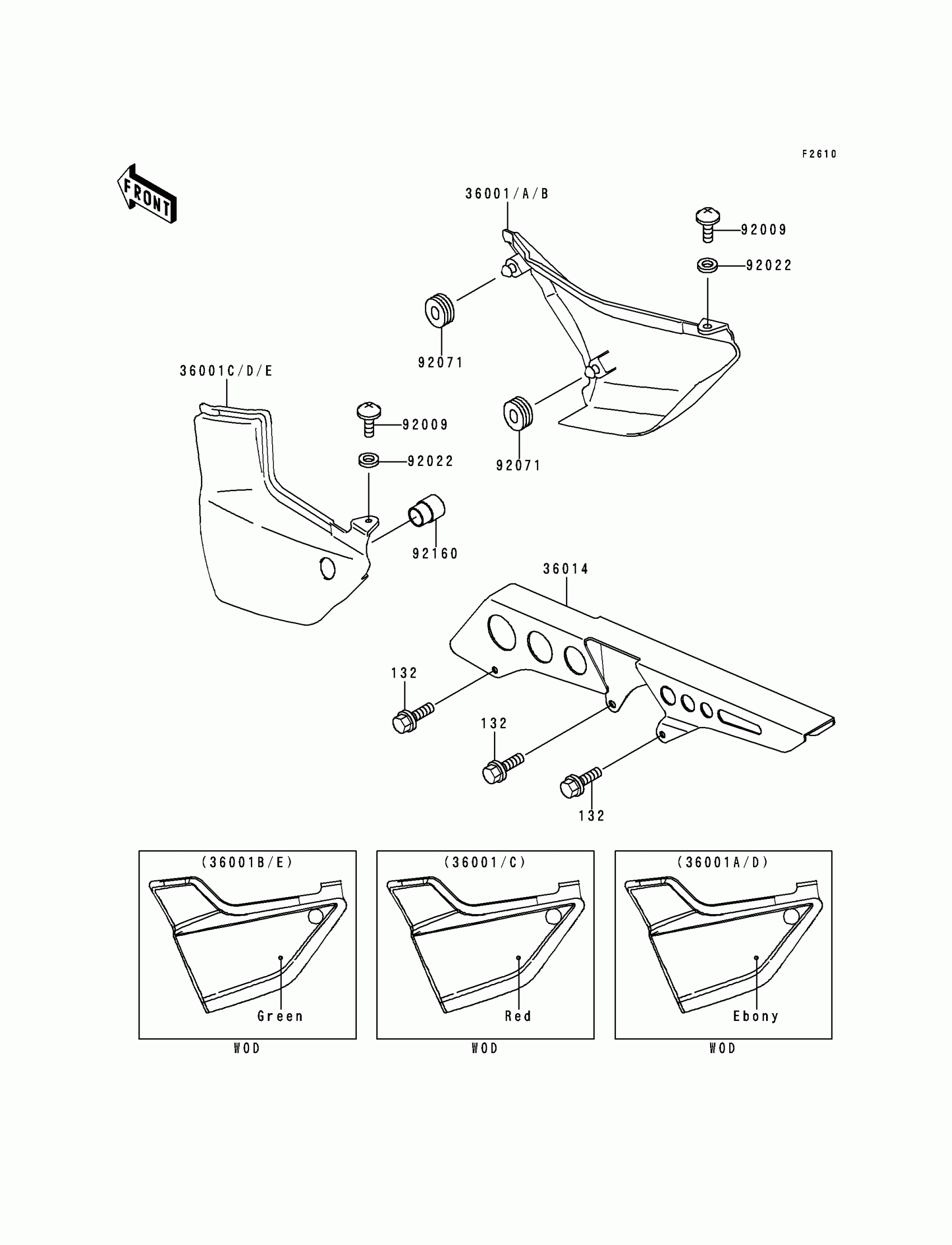

2000 Kawasaki ZRX1100 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock

36001B

COVER-SIDE,RH,P.J.GREEN

36001-1575-U5

1
Out of stock

36001E

COVER-SIDE,LH,P.J.GREEN

36001-1597-U5

1
Out of stock

36014

CASE-CHAIN

36014-1205

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92160

DAMPER

92160-1871

1
Out of stock

36001

COVER-SIDE,RH,F.RED

36001-1575-B1

1
Out of stock

36001A

COVER-SIDE,RH,EBONY

36001-1575-H8

1
Out of stock

36001C

COVER-SIDE,LH,F.RED

36001-1597-B1

1
Out of stock

36001D

COVER-SIDE,LH,EBONY

36001-1597-H8

1
Out of stock
