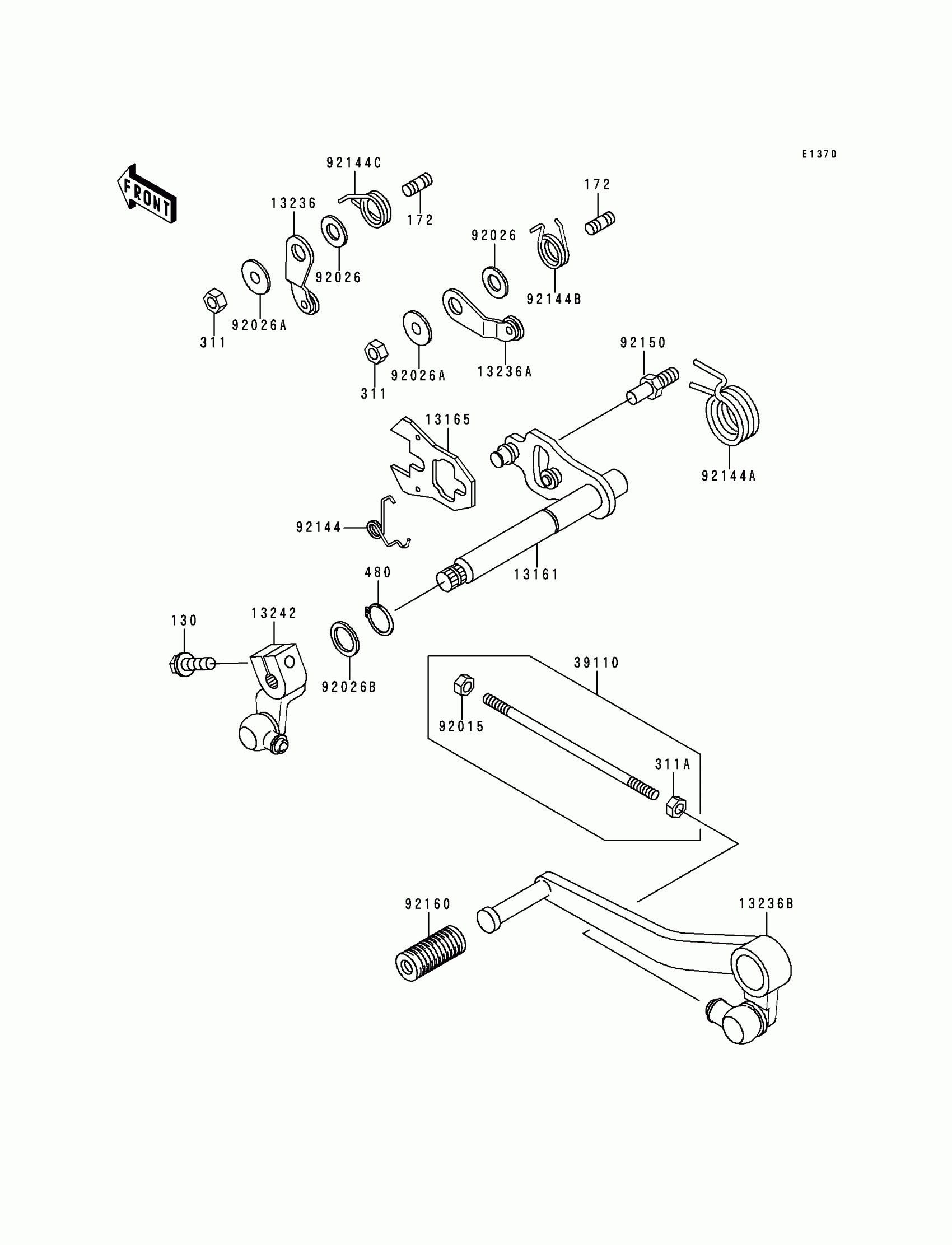

Kawasaki ZRX1100 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

172

BOLT-STUD,6X14

172G0614

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

311A

NUT-HEX

311J0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1155

$86.76

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,GEAR POSITION

13236-1103

$18.53

13236A

LEVER-COMP,GEAR POSITION

13236-1216

$9.29

13236B

LEVER-COMP,CHANGE PEDAL

13236-1301

Unavailable

13242

LEVER-ASSY-CHANGE,LINK

13242-1323

$50.28

39110

ROD-ASSY-TIE

39110-1106

$12.47

92015

NUT,LEFT HANDED,6MM

92015-1178

$3.85

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92026B

SPACER,13.3X18X1.0

92026-1532

$3.98

92144

SPRING

92144-1029

$5.93

92144A

SPRING,CHANGE PEDAL RETURN

92144-1074

$7.18

92144B

SPRING,GEAR POSITION

92144-1523

$8.56

92144C

SPRING

92144-1856

$9.49

92150

BOLT,RETURN SPRING

92150-1869

$8.37

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
