2000 Kawasaki ZRX1100 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2000 Kawasaki ZRX1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

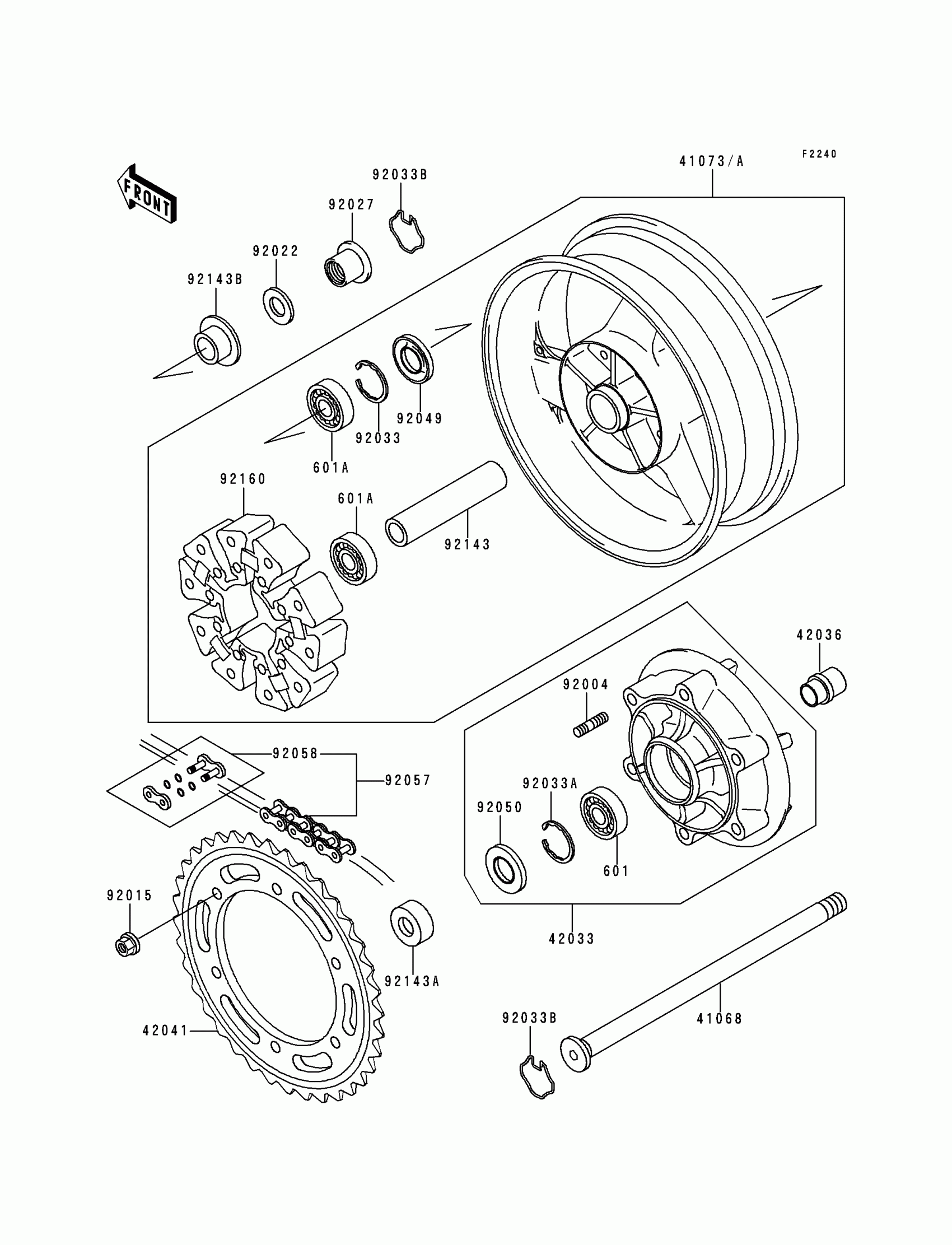

2000 Kawasaki ZRX1100 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6206UUC3

601B6206UU

1
Out of stock

601A

BEARING-BALL,#6304UUC3

601B6304UU

1
Out of stock

41068

AXLE,RR

41068-1354

1
Out of stock

41073A

WHEEL-ASSY,RR,BLACK

41073-1645-R2

1
Out of stock

42033

COUPLING-ASSY,RR HUB,C.GRAY

42033-1160-EZ

1
Out of stock

42036

SLEEVE,RR AXLE,L=45

42036-1302

1
Out of stock

42041

SPROCKET-HUB,45T

42041-1283

1
Out of stock

92004

STUD,10X24

92004-1146

1
Out of stock

92015

NUT,10MM

92015-1720

1
Out of stock

92022

WASHER,23X32X2.3

92022-1618

1
Out of stock

92027

COLLAR,RR AXLE,L=28

92027-1810

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92033A

RING-SNAP,62MM

92033-1044

1
Out of stock

92033B

RING-SNAP,RR AXLE

92033-1156

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92050

SEAL-OIL,AJN40627

92050-027

1
Out of stock

92057

CHAIN,DRIVE,DID50ZV2X110L

92057-1469

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-1077

1
Out of stock

92143

COLLAR,REAR AXLE,L=116

92143-1390

1
Out of stock

92143A

COLLAR,RR AXLE,LH,L=17

92143-1914

1
Out of stock

92143B

COLLAR,RR AXLE,RH,L=18

92143-1915

1
Out of stock

92160

DAMPER,SHOCK,RR HUB

92160-1911

1
Out of stock
