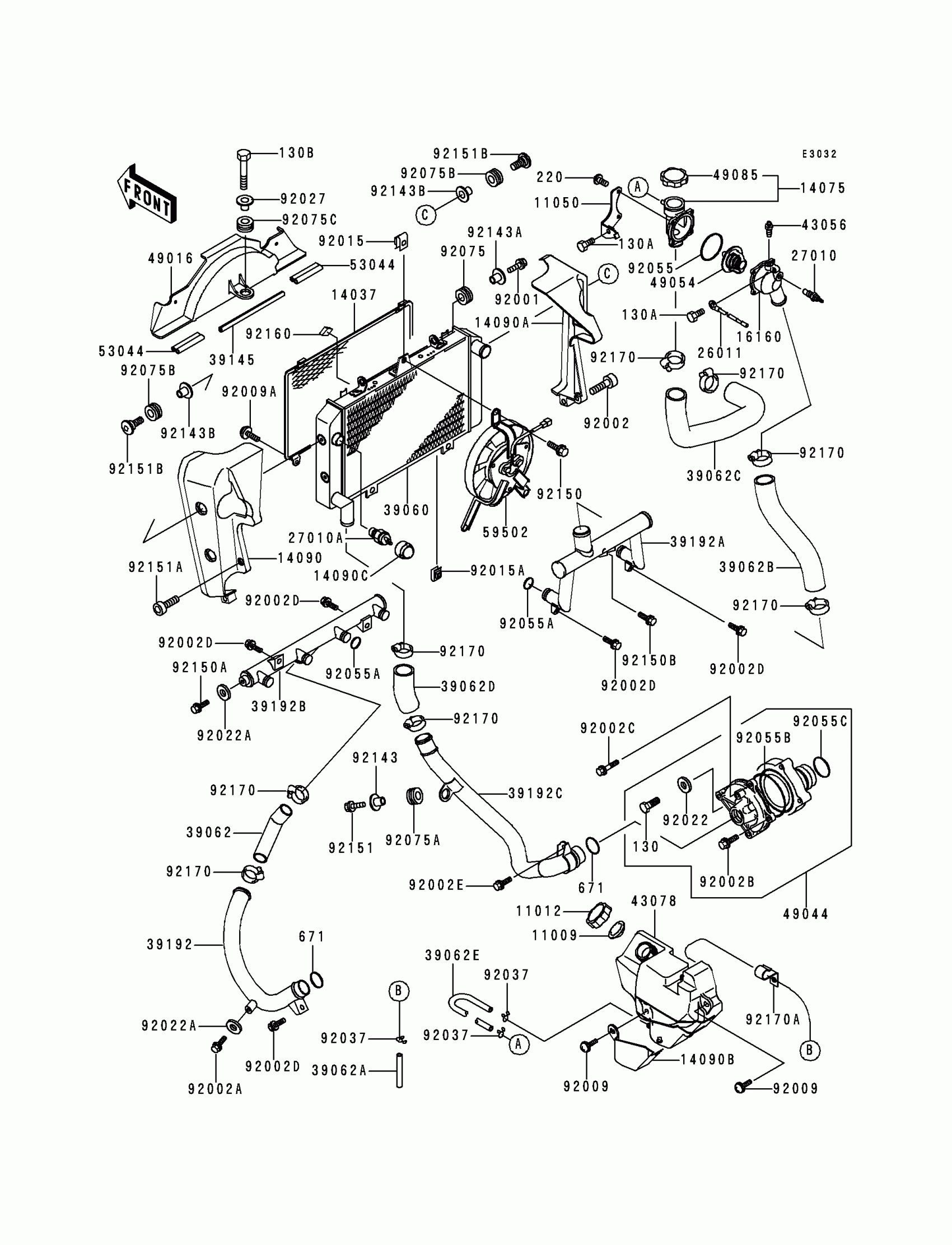

Kawasaki ZRX1100 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11050

BRACKET

11050-1118

$10.14

14037

SCREEN,RADIATOR

14037-1235

$103.31

14075

CAP-ASSY

14075-1068

$174.32

14090

COVER,RADIATOR,LH

14090-1773

$147.07

14090A

COVER,RADIATOR,RH

14090-1774

$147.07

14090B

COVER,RESERVOIR

14090-1791

Unavailable

14090C

COVER

14090-1830

$4.64

16160

BODY,THERMOSTAT

16160-1117

$85.47

26011

WIRE-LEAD,(-)

26011-1590

Unavailable

27010

SWITCH,SENSOR WATER

27010-1346

$107.46

27010A

SWITCH

27010-1372

$80.09

39060

RADIATOR

39060-1170

$946.64

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1276

$41.57

39062A

HOSE-COOLING,OVERFLOW

39062-1533

$23.47

39062B

HOSE-COOLING

39062-1704

$32.91

39062C

HOSE-COOLING

39062-1705

$42.24

39062D

HOSE-COOLING

39062-1706

$16.54

39062E

HOSE-COOLING

39062-1714

$17.53

39145

TRIM-SEAL,L=175

39145-1055

$13.17

39192

PIPE-WATER,PUMP-CYLINDER

39192-1011

$79.65

39192A

PIPE-WATER

39192-1092

Unavailable

39192B

PIPE-WATER

39192-1122

$103.05

39192C

PIPE-WATER

39192-1124

Unavailable

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1155

Unavailable

49016

COVER-SEAL

49016-1190

$30.65

49044

PUMP-WATER

49044-1076

$301.81

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1067

$47.60

53044

TRIM

53044-1220

$7.20

59502

FAN-ASSY

59502-1126

$866.12

92001

BOLT,6X20

92001-1947

$3.88

92002

BOLT,SOCKET,6X25

92002-1093

$4.25

92002A

BOLT,6X16

92002-1099

$0.97

92002B

BOLT,6X22

92002-1392

$4.19

92002C

BOLT,FLANGED-SMALL,6X40

92002-1566

$4.66

92002D

BOLT,6X12

92002-1569

Unavailable

92002E

BOLT,6X16

92002-1571

$4.17

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X25

130J0625

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

671

O RING,25MM

671B2525

$3.81

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW

92009-1842

$2.29

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92022

WASHER,6MM

92022-1976

$5.46

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O

92055-1282

$3.98

92055B

RING-O,WATER PUMP INSIDE

92055-1423

$7.13

92055C

RING-O,33.2X2.4

92055-1424

$4.71

92075

DAMPER,RUBBER

92075-1123

$3.81

92075A

DAMPER

92075-1185

$4.17

92075B

DAMPER

92075-1634

$3.57

92075C

DAMPER,10X24X12

92075-1690

$3.81

92143

COLLAR,L=9.6

92143-1016

$4.67

92143A

COLLAR

92143-1353

$6.54

92143B

COLLAR

92143-1962

$4.24

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,FLANGED,6X12

92150-1826

$3.20

92150B

BOLT,FLANGED-SMALL,6X12

92150-1841

$3.29

92151

BOLT,6X18

92151-1207

$4.29

92151A

BOLT,SOCKET,6X18

92151-1210

$3.76

92151B

BOLT,6X22

92151-1265

$7.58

92160

DAMPER

92160-1863

$4.22

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

92170A

CLAMP

92170-1767

$7.31
