2015 Kawasaki ZR800 (European) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2015 Kawasaki ZR800 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

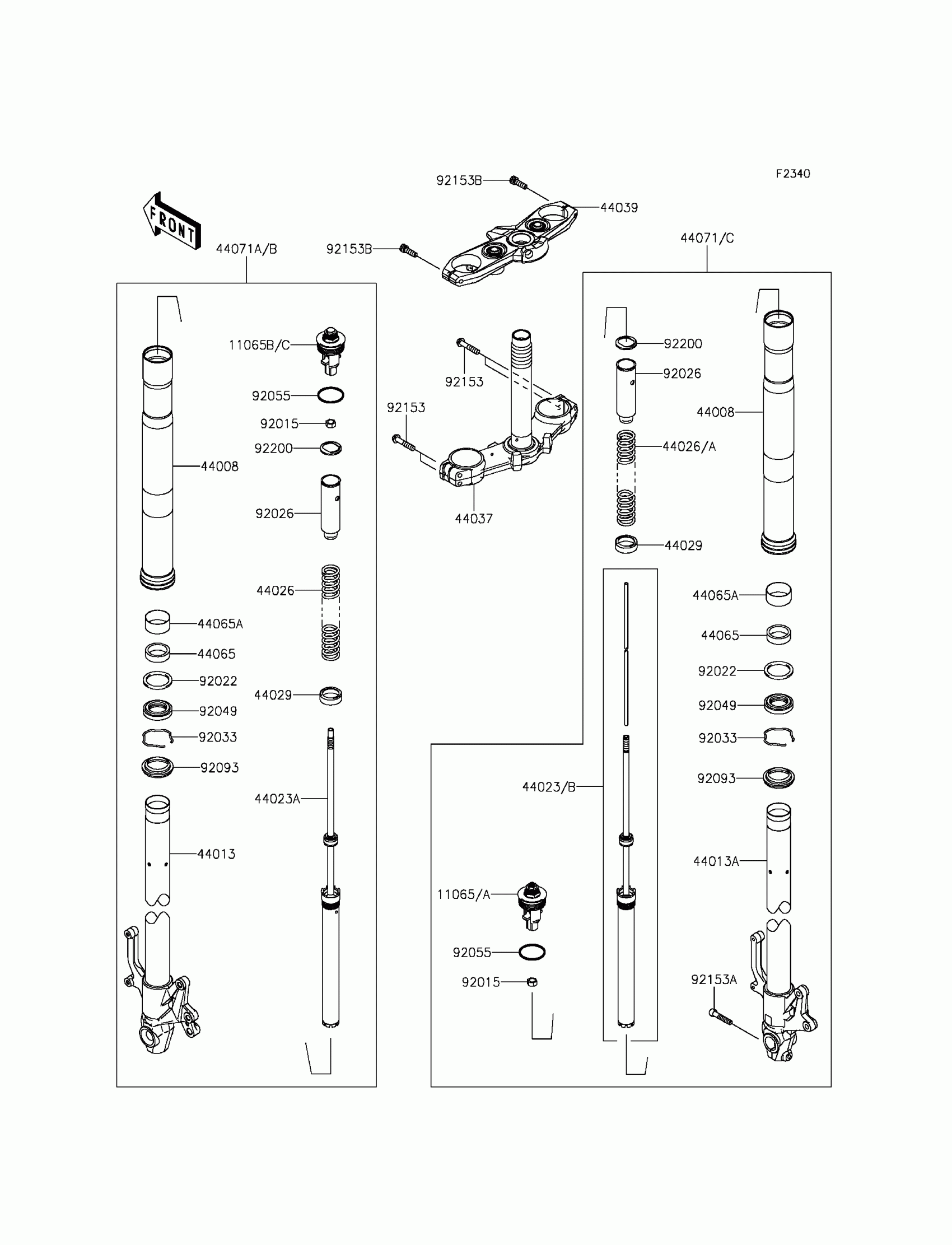

2015 Kawasaki ZR800 (European) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065A

CAP,COMP.,RH,G.B.GREEN

11065-0781-48W

1
Out of stock

11065C

CAP,COMP.,LH,G.B.GREEN

11065-0782-48W

1
Out of stock

44008

PIPE-FORK OUTER,A.BLACK

44008-0062-499

1
Out of stock

44013

PIPE-FORK INNER,LH,F.S.BLACK

44013-0195-18R

1
Out of stock

44013A

PIPE-FORK INNER,RH,F.S.BLACK

44013-0196-18R

1
Out of stock

44023A

CYLINDER-SET-FORK,LH

44023-0112

1
Out of stock

44023B

CYLINDER-SET-FORK,RH

44023-0124

1
Out of stock

44026A

SPRING-FRONT FORK

44026-0193

1
Out of stock

44029

SEAT-FORK SPRING

44029-0015

1
Out of stock

44037

HOLDER-FORK UNDER,F.M.GRAY

44037-0066-26M

1
Out of stock

44039

HOLDER-FORK UPPER,F.M.GRAY

44039-0130-26M

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0042

1
Out of stock

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1114

1
Out of stock

44071B

DAMPER-ASSY,FORK,LH,BLACK

44071-1103-50M

1
Out of stock

44071C

DAMPER-ASSY,FORK,RH,BLACK

44071-1104-50M

1
Out of stock

92015

NUT

92015-1795

1
Out of stock

92022

WASHER,FORK OUTER TUBE

92022-1298

1
Out of stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1036

1
Out of stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

RING-O,FORK,AIR TUBE

92055-1333

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1472

1
Out of stock

92153

BOLT,FLANGED,8X40

92153-0484

1
Out of stock

92153A

BOLT,SOCKET,8X40

92153-0506

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1
Out of stock

92200

WASHER

92200-0085

1
Out of stock
