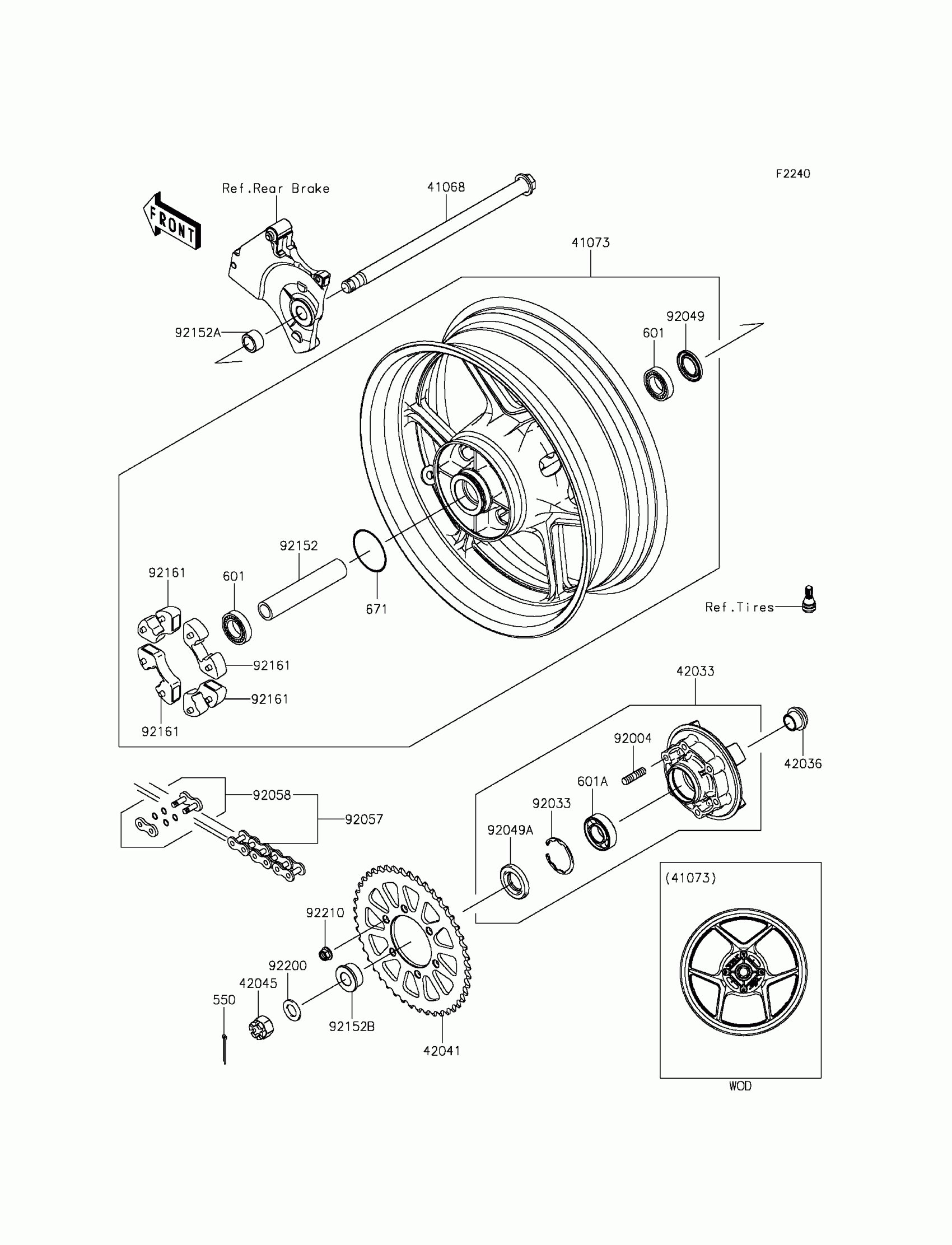

Kawasaki ZR800 (European) Rear Hub Diagram

#

Description
Price

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL

601B6205UU

$26.20

671

O RING,60MM

671B2560

$5.13

41068

AXLE,RR

41068-0579

Unavailable

41073

WHEEL-ASSY,RR,G.BLACK

41073-0593-QT

$981.15

42033

COUPLING-ASSY,RR HUB

42033-0043

$246.81

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,45T

42041-0119

Unavailable

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-0028

$6.80

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,28 47 5

92049-0140

$6.44

92049A

SEAL-OIL

92049-1287

$9.95

92057

CHAIN,DRIVE,EK520MVXL2X114L

92057-0184

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-0021

$13.00

92152

COLLAR,RR HUB,L=150

92152-0070

$20.37

92152A

COLLAR,20X28X16.4

92152-1583

$16.36

92152B

COLLAR,20X35X18

92152-1585

$23.64

92161

DAMPER,SHOCK,RR HUB

92161-0342

$21.16

92200

WASHER,19X32X2.6

92200-1489

$1.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85
